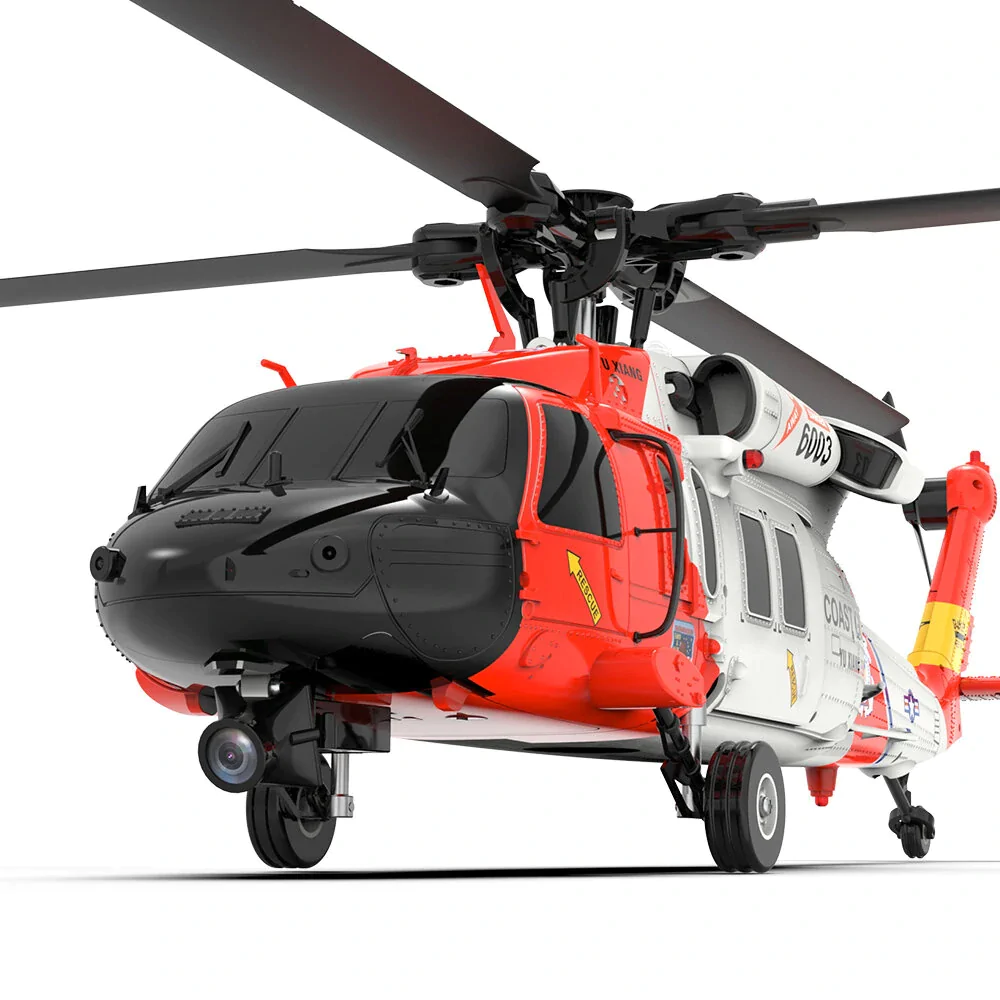

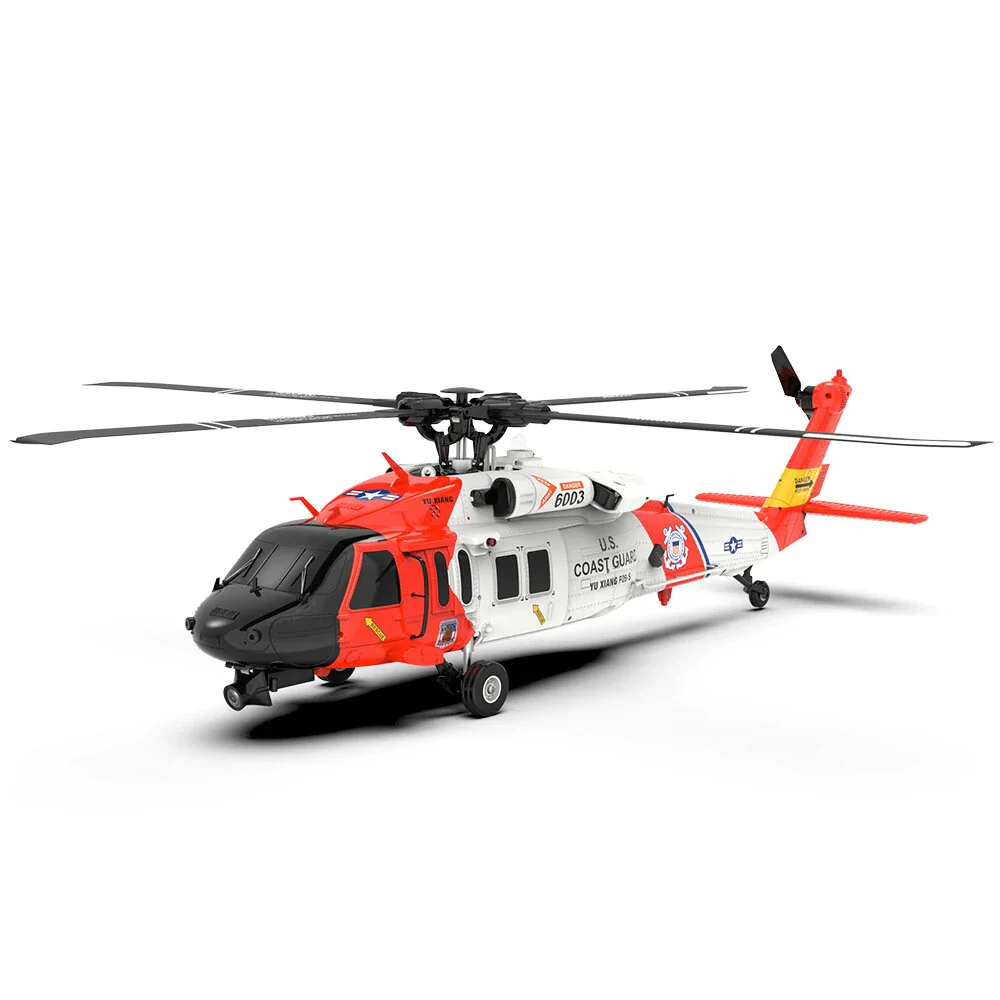

The YXZNRC F09-S is a flybarless, dual-brushless scale RC helicopter inspired by the UH-60 utility-helicopter profile. GPS, optical-flow positioning and barometric altitude support help deliver stable hovering and assisted flight, while the detailed 1:47 body includes lighting, a movable side door and shock-absorbing landing gear.
Choose the existing without FPV Camera or with FPV Camera option. The FPV version adds a 5.8GHz analog camera system; the helicopter is not represented as an officially licensed aircraft model.
Key Features
Flybarless rotor system with electronic stabilization
4004 630KV brushless main motor and 1104 4200KV brushless tail motor
GPS, optical-flow and barometric positioning assistance
Return, low-battery return, signal-loss return and assisted landing functions
8-channel 2.4GHz telemetry transmitter with flight-data display
CNC rotor-head components and nylon/carbon-fiber composite main blades
Optional 5.8GHz analog FPV camera system
Specifications
Model: YXZNRC F09-S
Scale: 1:47
Main rotor diameter: 425 mm
Fuselage length: 420 mm
Height: 120 mm
Weight: approx. 438 g
Radio: 2.4GHz
Flight battery: 11.1V 1350mAh 30C LiPo
Flight time: approx. 9–12 minutes
Charging time: approx. 90 minutes

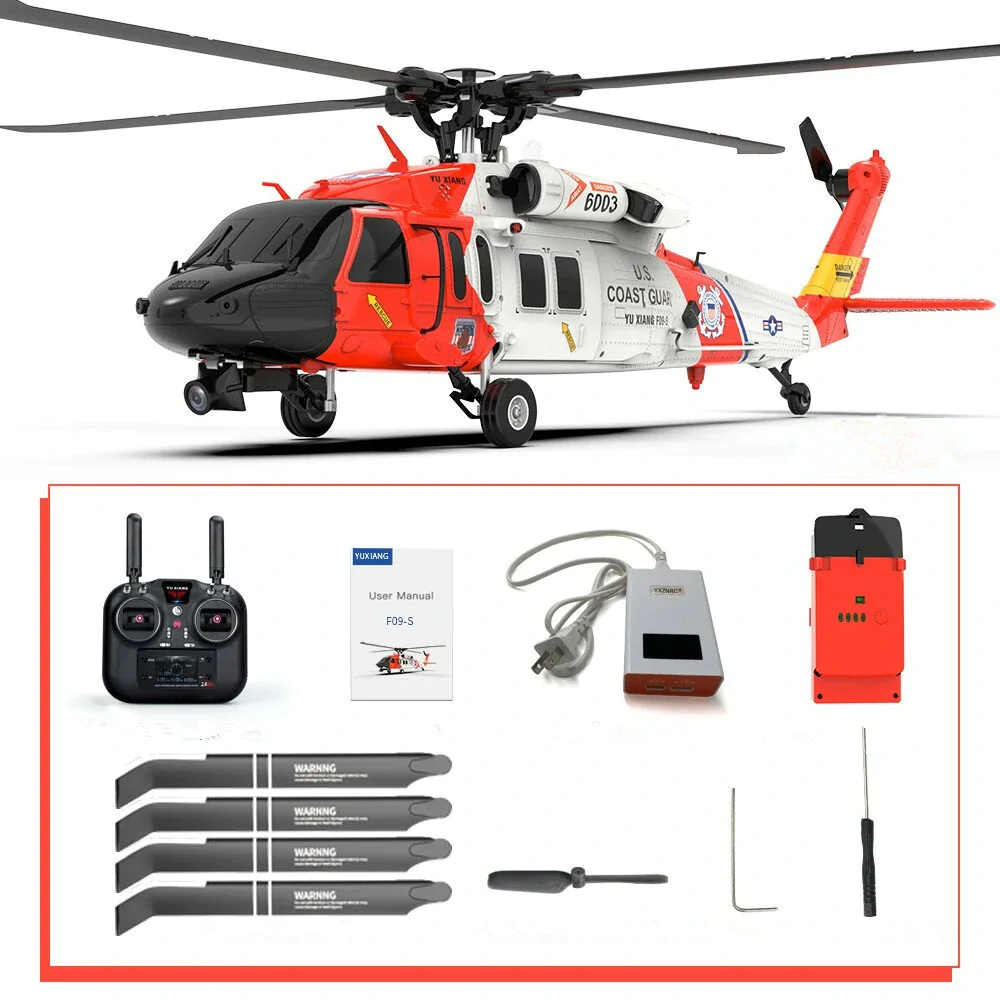

Package Includes
1 × F09-S RC helicopter
1 × transmitter
1 × balance charger
Flight battery quantity supplied with the selected package
