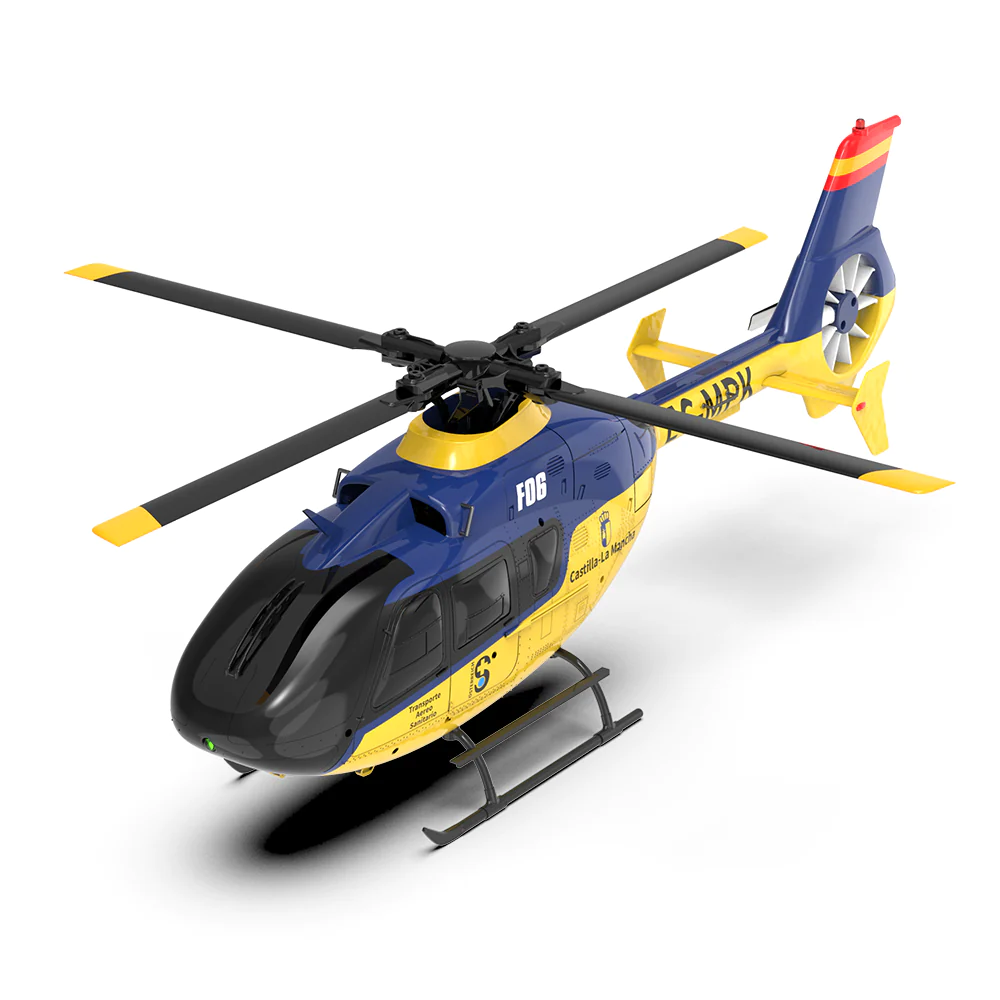

The YUXIANG F06 is a detailed 1/36 scale ready-to-fly helicopter with a flybarless rotor system, twin brushless motors and six-axis electronic stabilization. Optical-flow positioning assists low-altitude hovering when lighting and floor texture are suitable.
Key features
2507 1300KV brushless main motor
1204 7000KV brushless tail motor
Six-axis gyro stabilization
Optical-flow assisted positioning below approximately 8 m
Three 4.3 g digital servos
2.4GHz radio system and low-battery telemetry reminder
Type-C charging for the smart battery
Specifications
Scale: 1/36
Rotor diameter: 330 mm
Body length: 350 mm
Height: 120 mm
Flying weight: approximately 228 g
Battery: 7.4V 1200mAh 25C LiPo smart battery
Supplier-rated range: over 120 m
Typical flight time: approximately 8–9 minutes per battery
Charge time: approximately 70 minutes
Package contents
F06 scale RC helicopter
2.4GHz transmitter
One or two flight batteries, according to selection
USB charger
Four spare main blades
Spare tail blade
User manual
Flight note: Optical flow is an aid, not autonomous obstacle avoidance, and may be unreliable over reflective, low-contrast or moving surfaces. Fly in a clear area, check local rules, and never charge a LiPo battery unattended.
