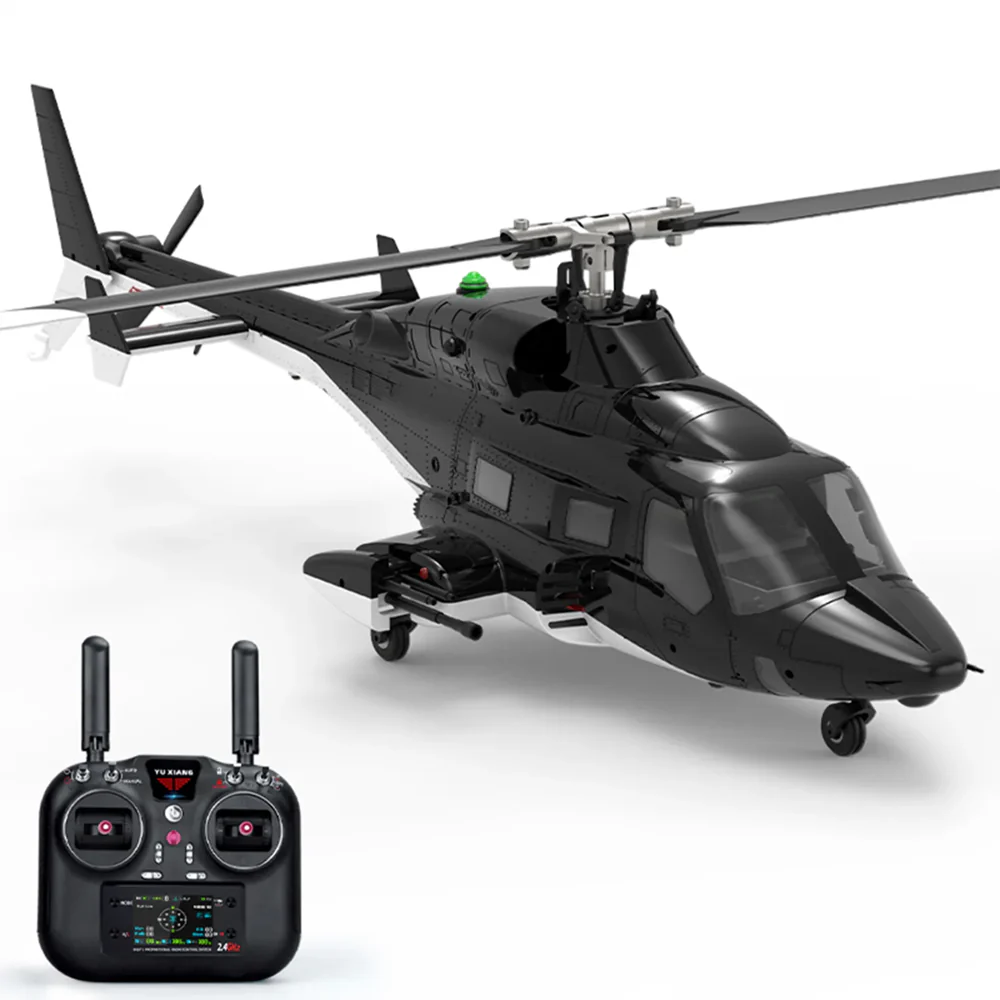

The YuXiang F02S combines an Airwolf-style 1/12 fuselage with GPS positioning, optical-flow assistance and barometric altitude sensing. Dual brushless motors, flybarless stabilization and metal-gear servos provide responsive outdoor flight, while telemetry and automated flight functions support experienced scale pilots.
Key Features
GPS, optical-flow and barometric positioning systems
Return-to-home and circular-flight functions
2511 1200KV brushless main motor
1204 5500KV brushless tail motor
Three 4.3g metal-gear servos
CNC rotor head with carbon/nylon rotor blades
8-channel 2.4GHz transmitter with display and telemetry
One-, two- and three-battery RTF options
Specifications
Model: YuXiang / YXZNRC F02S
Scale: 1/12
Rotor diameter: 375mm
Length: 415mm
Height: 118mm
Takeoff weight: approximately 310g
Battery: 7.4V 1200mAh 25C LiPo
Flight time: approximately 10–12 minutes per battery
Charging time: approximately 60 minutes
Control range: over 120m under suitable conditions

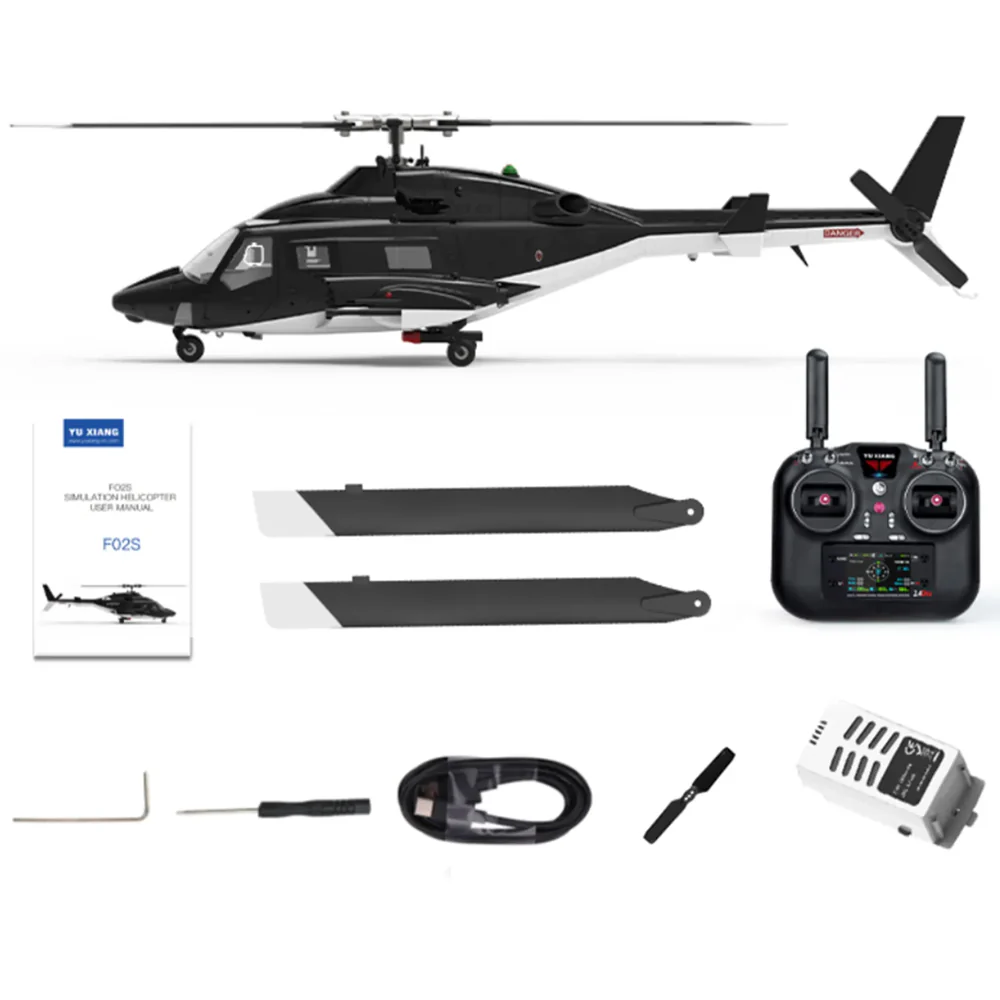

RTF Package Includes
YuXiang F02S helicopter
8-channel transmitter
Selected number of 7.4V 1200mAh batteries
USB charger and cable
Spare tail blade and main rotor blades
English manual
This is an advanced flying model. Operate in a suitable open area and follow local aviation and radio-control rules.
