The Tattu TA500 and TA500Q are 500W multi-channel AC chargers built for compatible G-Tech smart batteries. Automatic pack recognition and dedicated Charge and Storage modes simplify battery turnaround for drone-soccer teams, RC clubs, schools and race-day charging stations.
Select the six-channel TA500 for 2S–4S G-Tech packs with XT30 outputs, or choose the four-channel TA500Q for 2S–6S packs, XT60 outputs and up to 15A per channel. Each channel operates independently so several compatible batteries can be managed from one charger.
Compatibility warning: TA500 and TA500Q are designed for G-Tech smart batteries only. They are not general-purpose chargers for standard non-G-Tech LiPo packs.
Shared Features
Up to 500W total AC output
Automatic G-Tech smart-battery recognition
Independent multi-channel charging
Charge and Storage operating modes
100–240V AC universal input
Operating temperature: 0–45°C

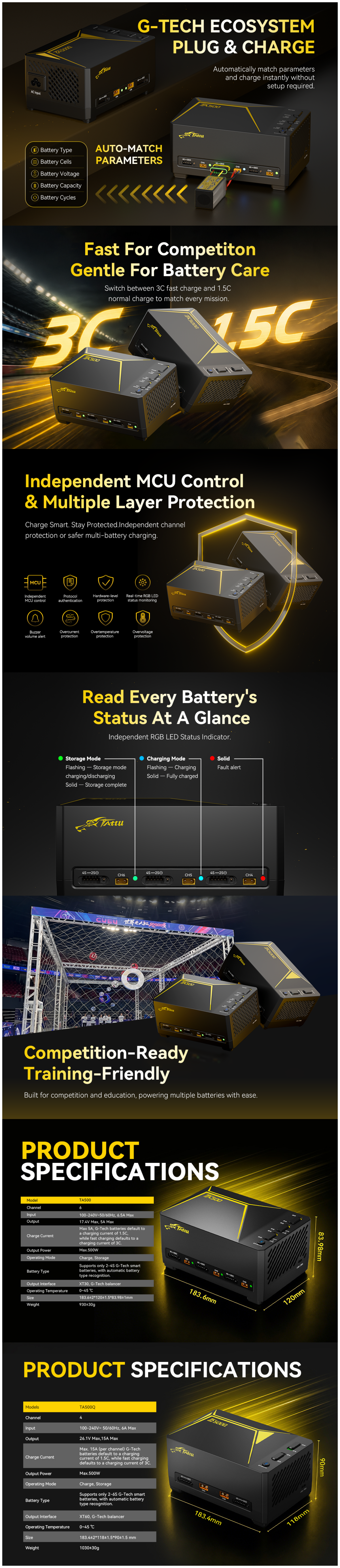

Model Comparison
Specification
TA500
TA500Q
Channels
6
4
Compatible packs
2S–4S G-Tech
2S–6S G-Tech
Output connector
XT30 + G-Tech balance
XT60 + G-Tech balance
AC input
100–240V, 50/60Hz, 6.5A max
100–240V, 50/60Hz, 6A max
Maximum output
17.4V, 5A
26.1V, 15A
Charge current
Up to 5A
Up to 15A per channel
Dimensions
Approx. 183.6 × 120 × 84 mm
Approx. 183.4 × 118 × 90 mm
Weight
Approx. 930 g
Approx. 1,030 g

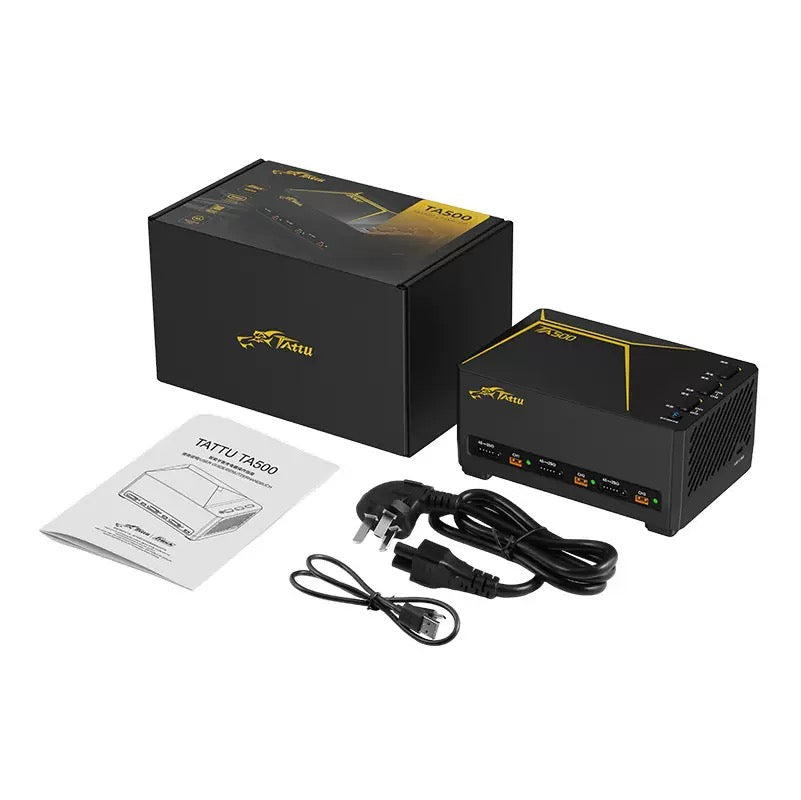

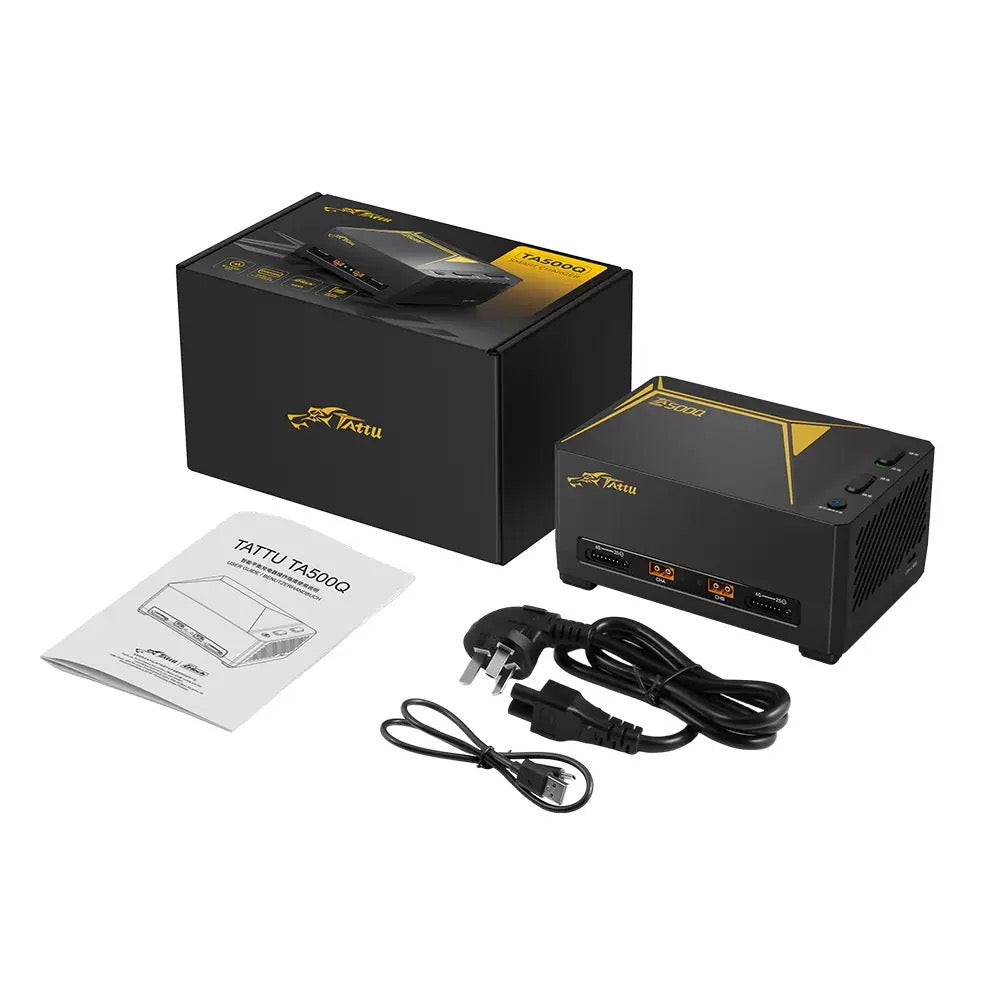

Package Includes
1 × selected Tattu TA500 or TA500Q G-Tech smart charger
Always inspect batteries and connectors before charging, use the correct mode, and follow the battery manufacturer's safety instructions.
