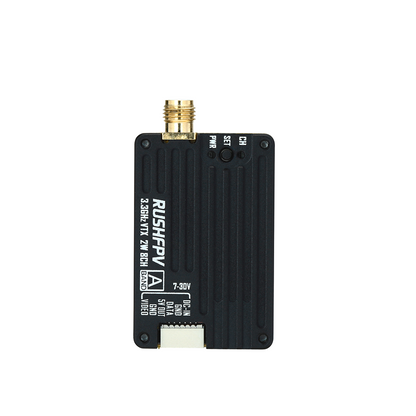

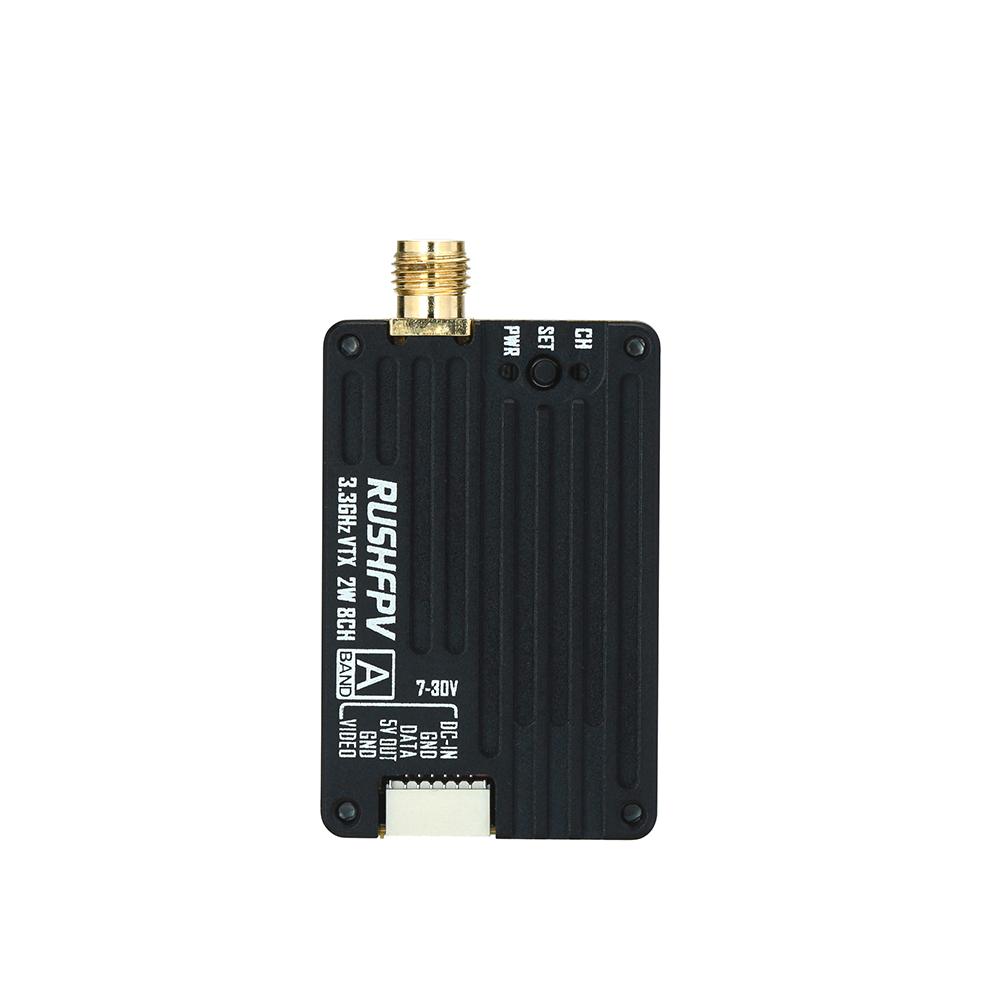

The RUSHFPV 3.3GHz 2W FPV Video Transmitter is a compact analog VTX package for long-range aircraft builds that use 3.3GHz equipment. The current All4RC configuration includes an RHCP circular-polarized antenna and supports IRC Tramp control.
Stable High-Power Analog Video Link
A digitally controlled PLL design helps maintain the selected frequency, while the wide 7–30V input range makes the transmitter suitable for a variety of FPV power systems. Output depends on installation, supply voltage, airflow and local operating conditions; provide adequate ventilation and never power the transmitter without a correctly matched antenna.
Key Features
Analog CVBS video input with NTSC and PAL support
More than 2W rated RF output
IRC Tramp protocol support
Wide 7–30V DC input
SMA antenna connector

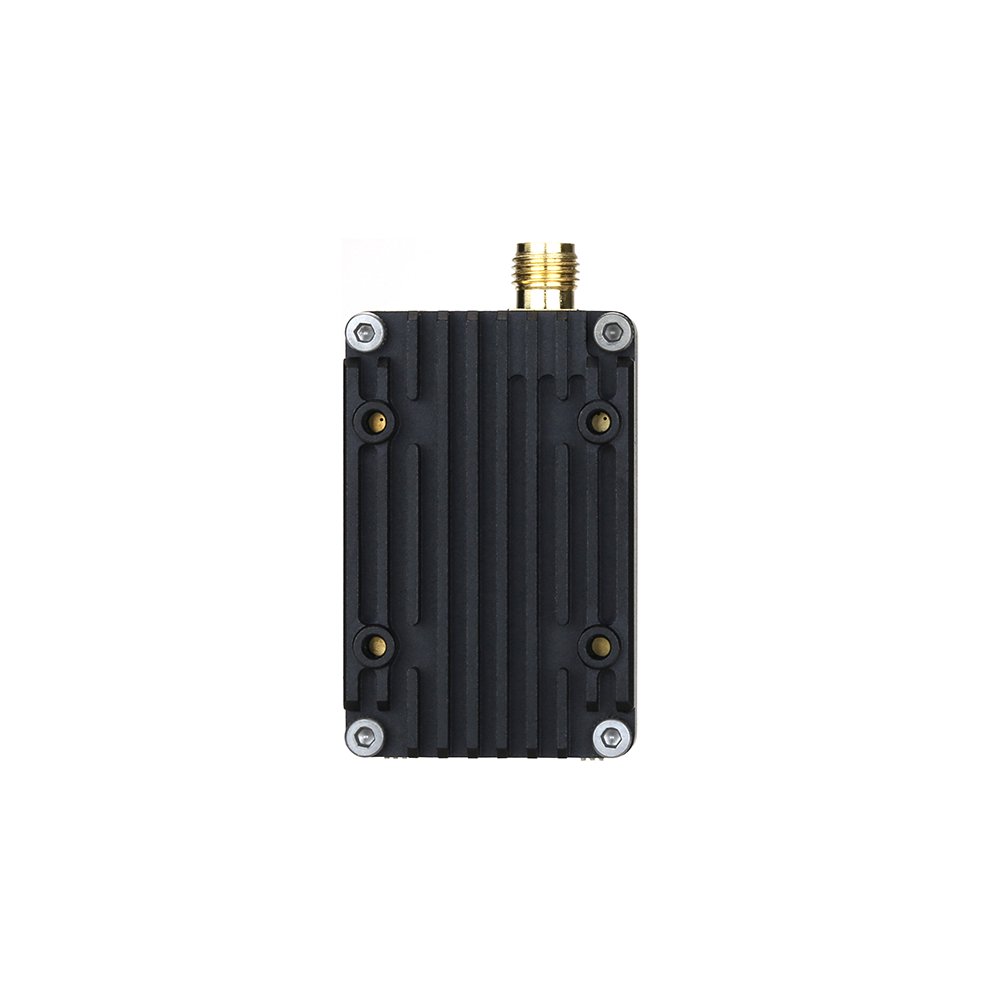

Compact 40.5 × 26 × 8.5mm transmitter

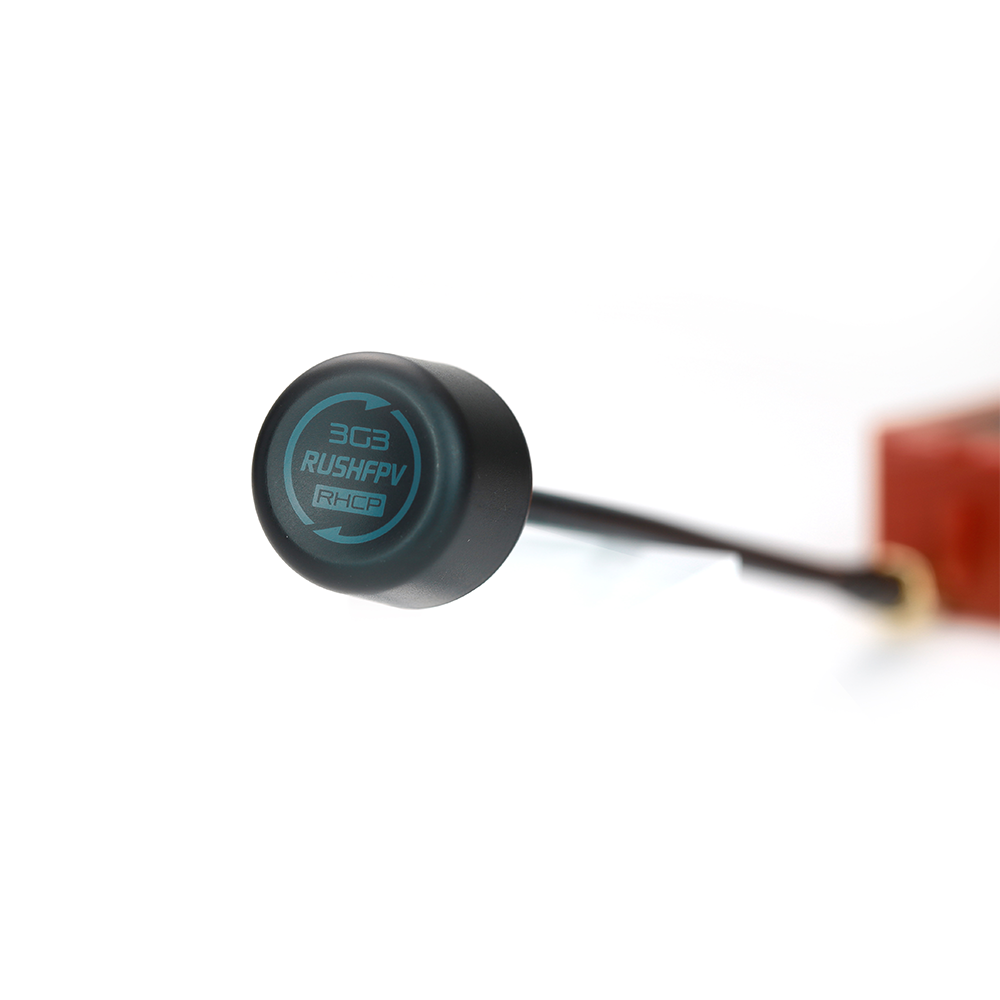

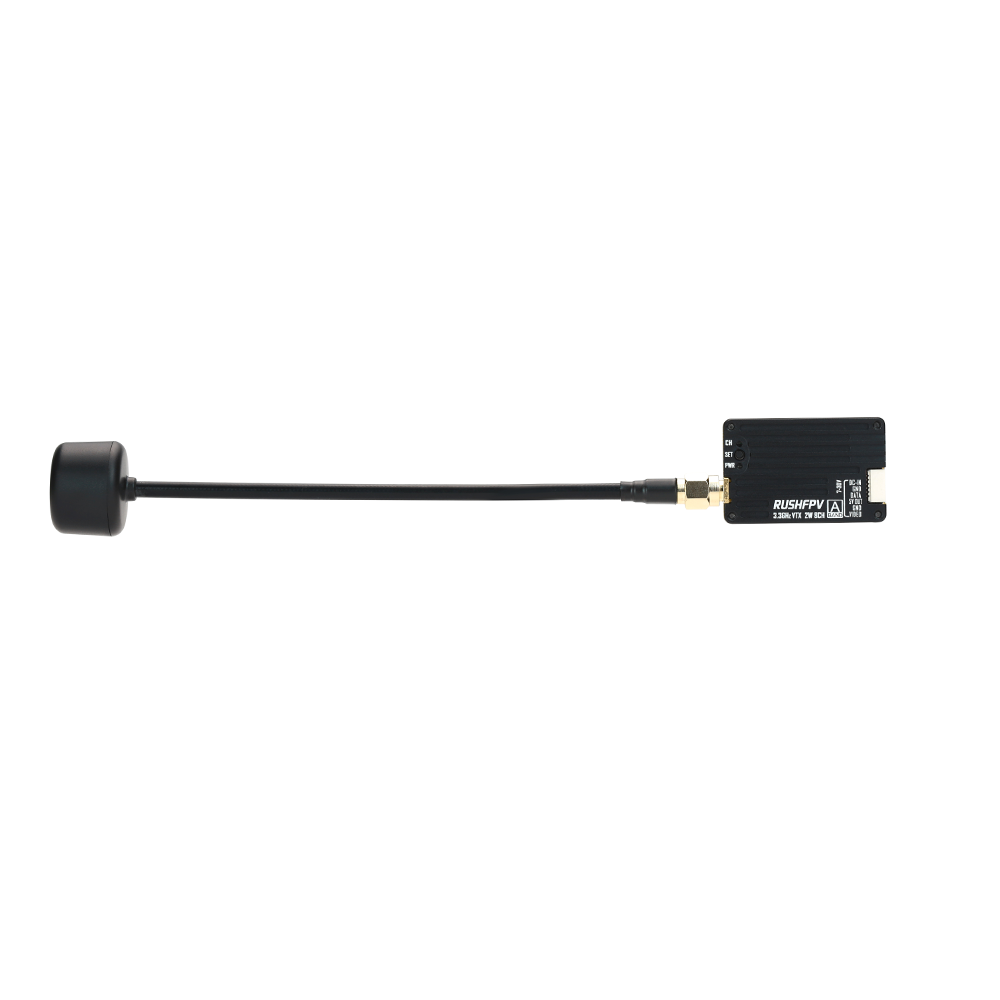

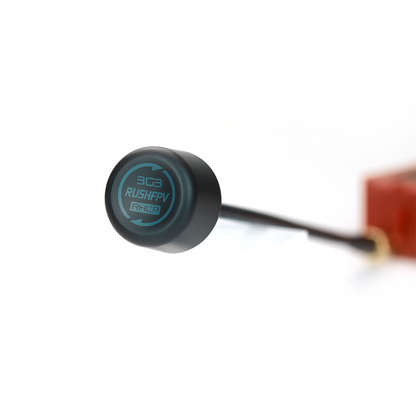

RHCP circular-polarized antenna included
Specifications
Brand
RUSHFPV
Frequency Range
Band A: 3330–3470MHz; Band B: 3170–3310MHz
Channels
8 per hardware band
RF Output
>2W
Video Input
CVBS, NTSC/PAL
Control Protocol
IRC Tramp
Input Voltage
7–30V DC
RF Connector
SMA
VTX Size / Weight
40.5 × 26 × 8.5mm / 16.5g
Antenna Polarization
RHCP
Antenna Gain
2dBi
Antenna Cable
RG402
Antenna Size / Weight
23.6 × 165mm / 13g
Package Includes
1 × RUSHFPV 3.3GHz 2W video transmitter
1 × RHCP circular-polarized antenna
Compatibility note: Band A and Band B use different transmitter and antenna hardware. Confirm the required frequency range, connector and local radio regulations before installation. The antenna must match the transmitter band.
