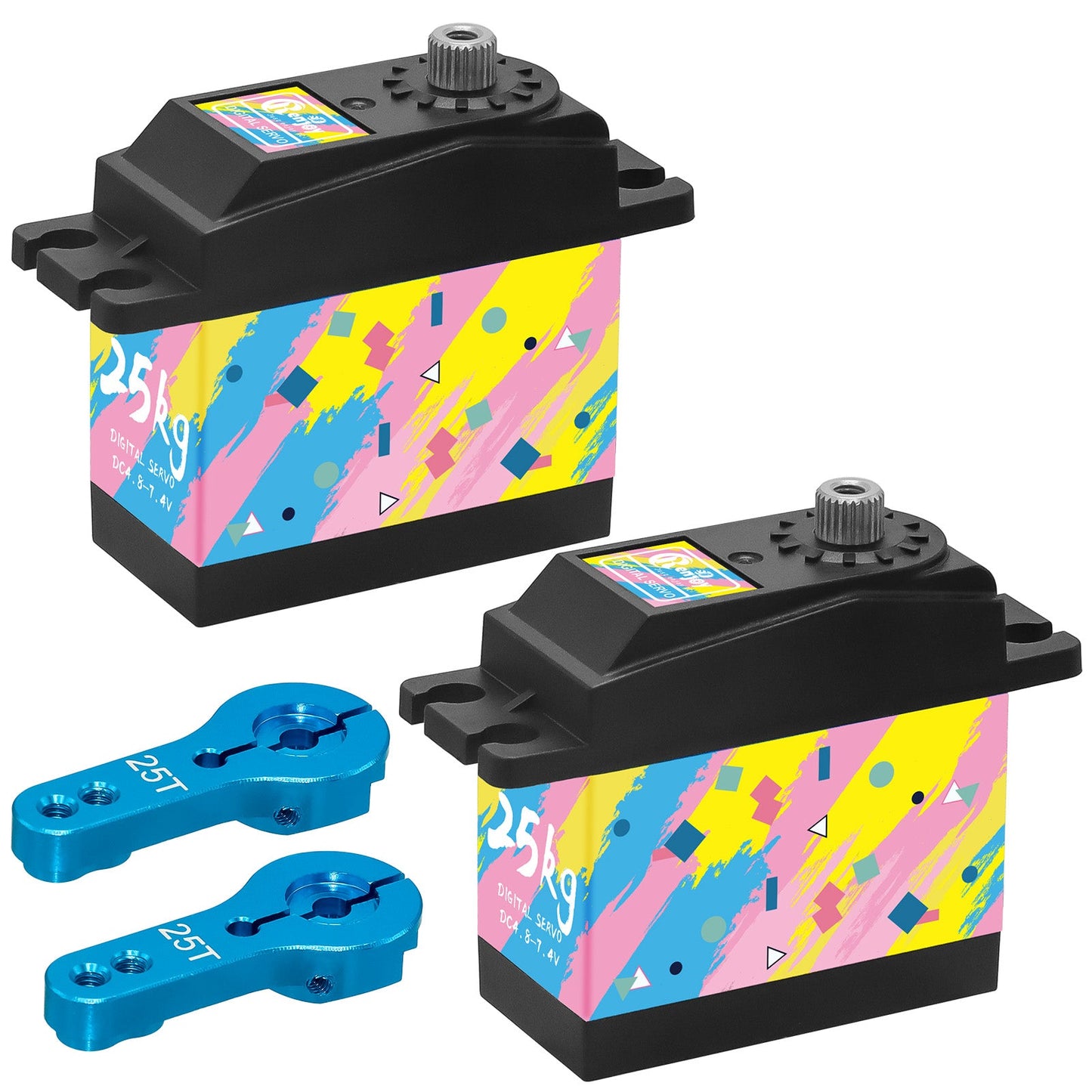

The RCENJOY 25kg-class digital servo is built for steering, robotics and other high-load RC applications. It combines steel gears, dual ball bearings, an aluminum center case and a 25-tooth metal servo horn in a standard-size housing.
Key Features
Digital proportional control with a configurable operating range up to 180° when supported by the transmitter or controller
Steel gear train and hardened output shaft

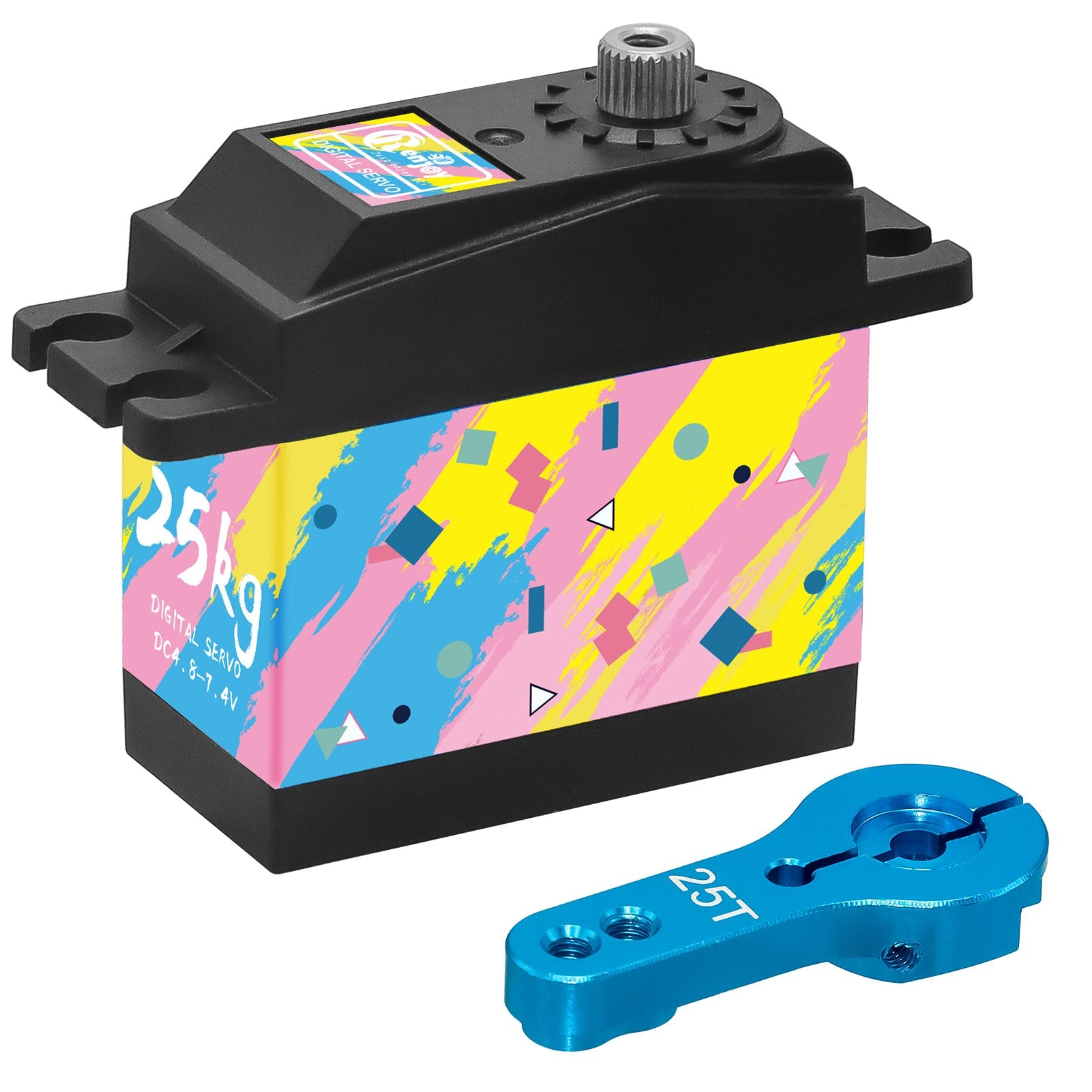

Aluminum center housing for strength and heat dissipation
Dual ball-bearing support

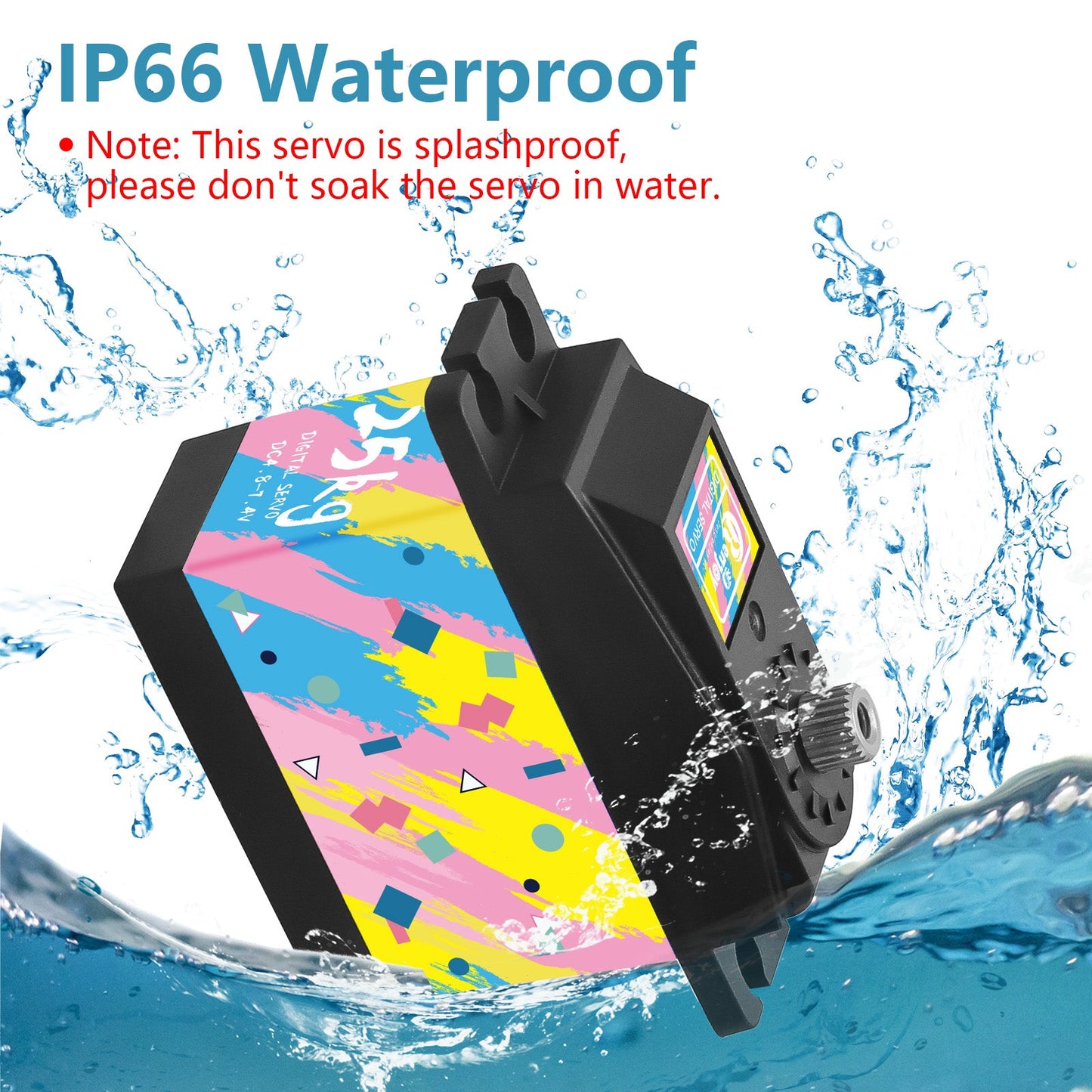

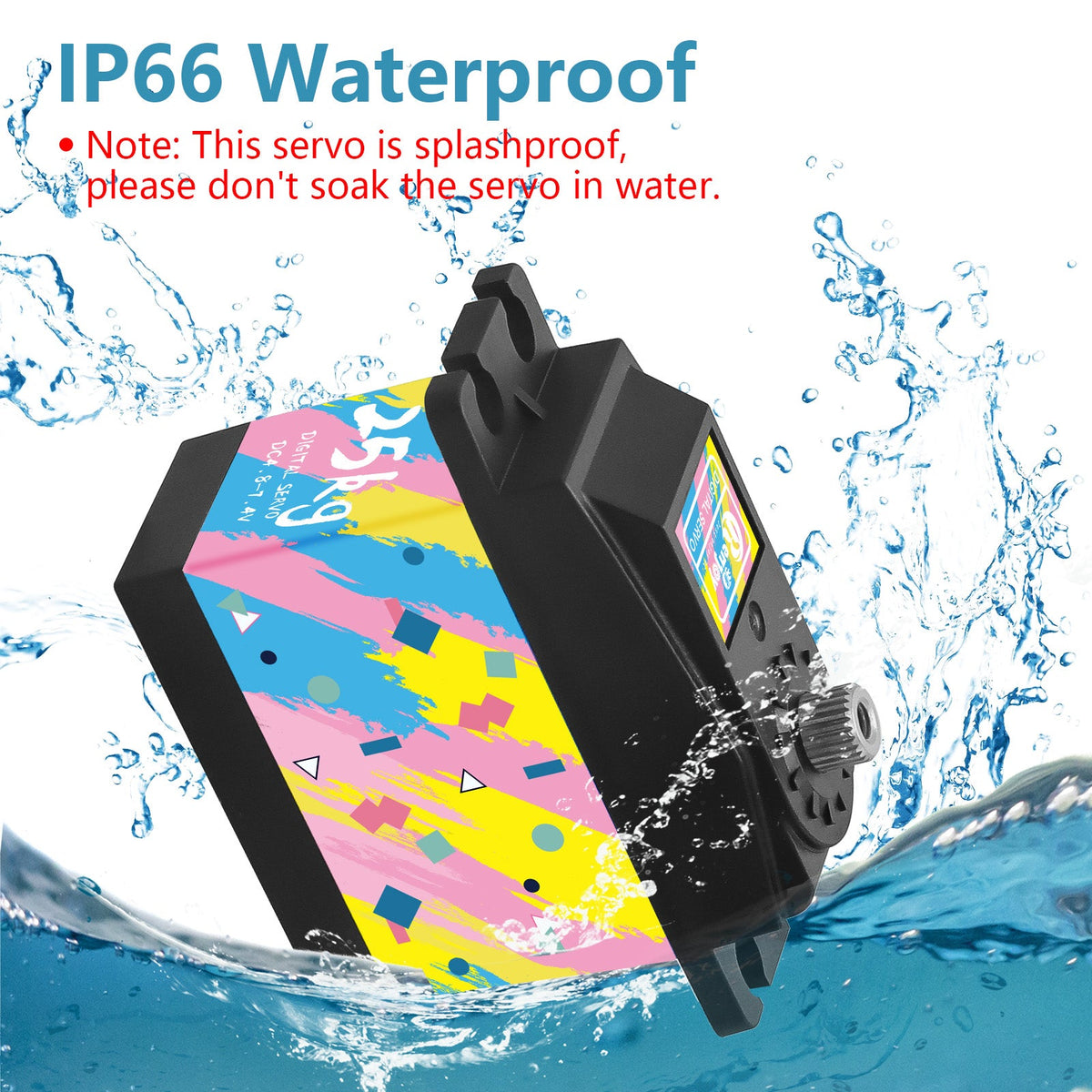

Supplier-rated IP66 resistance to dust and water jets
25T metal servo horn included with each servo
Available in 1-, 2-, 5- or 10-piece packages
Specifications
Type
Standard-size digital servo
Torque class
25kg class; supplier-rated maximum up to 28kg·cm at 6.8V
Operating speed
Supplier-rated 0.14 sec/60° at 6.8V
Rotation range
Up to 180°, subject to controller settings
Output spline
25T
Gear material
Steel
Bearings
Dual ball bearing
Housing
Aluminum center case
Protection rating
Supplier-rated IP66; not intended for submersion
Dimensions
Approximately 40 × 20 × 40.5mm
Package Options
25KG 1PC: 1 servo set
25KG 2PCS: 2 servo sets
25KG 5PCS: 5 servo sets
25KG 10PCS: 10 servo sets

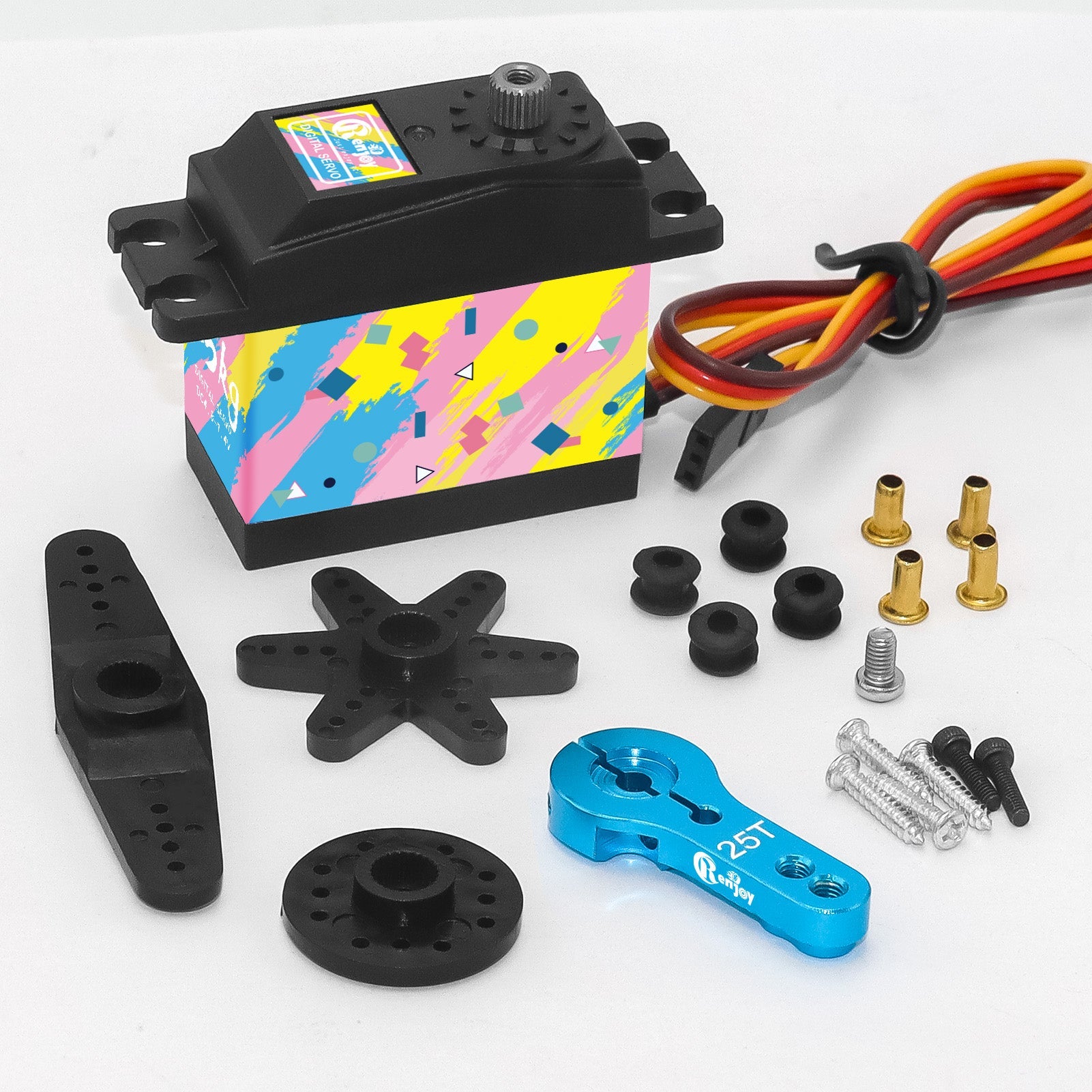

Each servo set includes the servo and matching 25T metal horn; supplied mounting accessories may follow the product images. Before ordering, confirm the voltage range supported by your receiver or external BEC, the spline count, mounting dimensions and required travel. Avoid stalled operation, and do not rely on the IP66 rating for underwater use.
