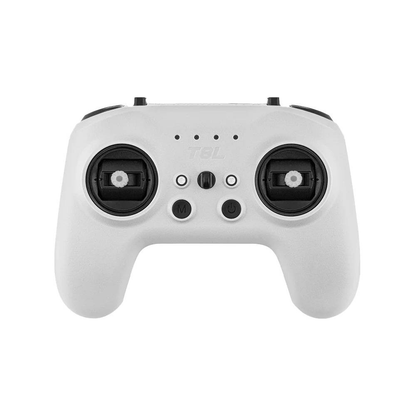

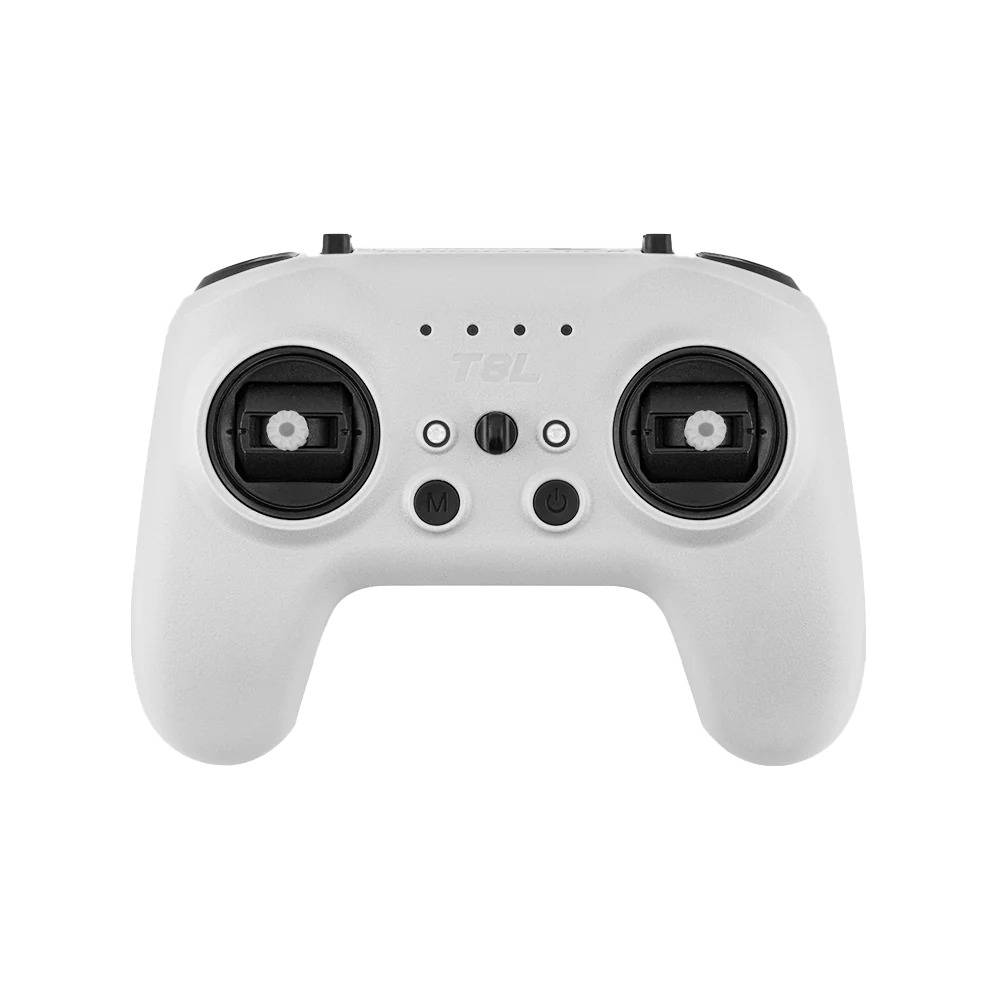

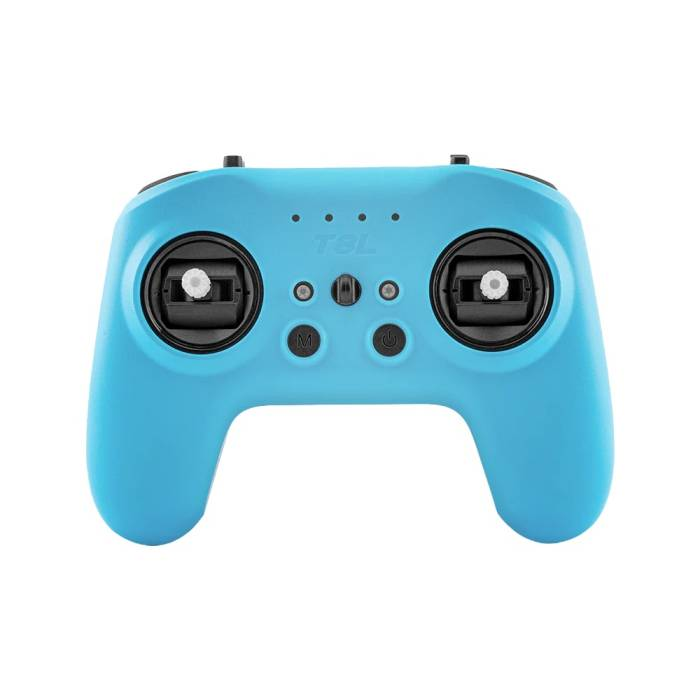

The RadioMaster T8L is a lightweight 2.4GHz ExpressLRS transmitter for FPV aircraft, trainers, simulators and compact RC projects. X5 Hall-effect nano gimbals and browser-based configuration keep the controls precise while avoiding the weight of a full-size radio.
Key Features
Built-in 2.4GHz ExpressLRS SX1281 RF module
Adjustable output from 10mW to 100mW
Up to 10 channels, depending on receiver and configuration

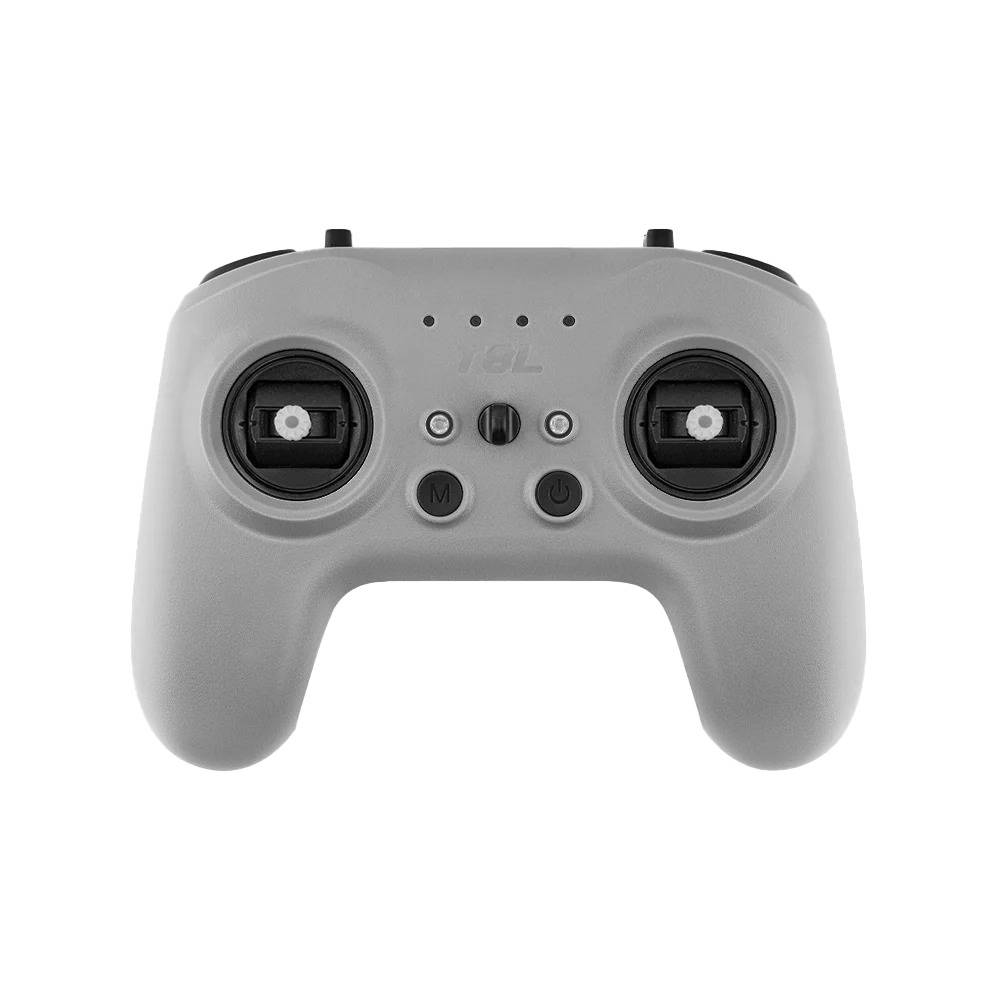

X5 Hall-effect quad-ball-bearing nano gimbals
USB-C charging, firmware update and simulator connection
Web-based calibration, channel mapping and ELRS configuration
Specifications
Frequency: 2.400–2.480GHz
Size: 165 × 120 × 70 mm
Weight: approximately 204 g without batteries
Power: 2 × 3.7V 18650 cells

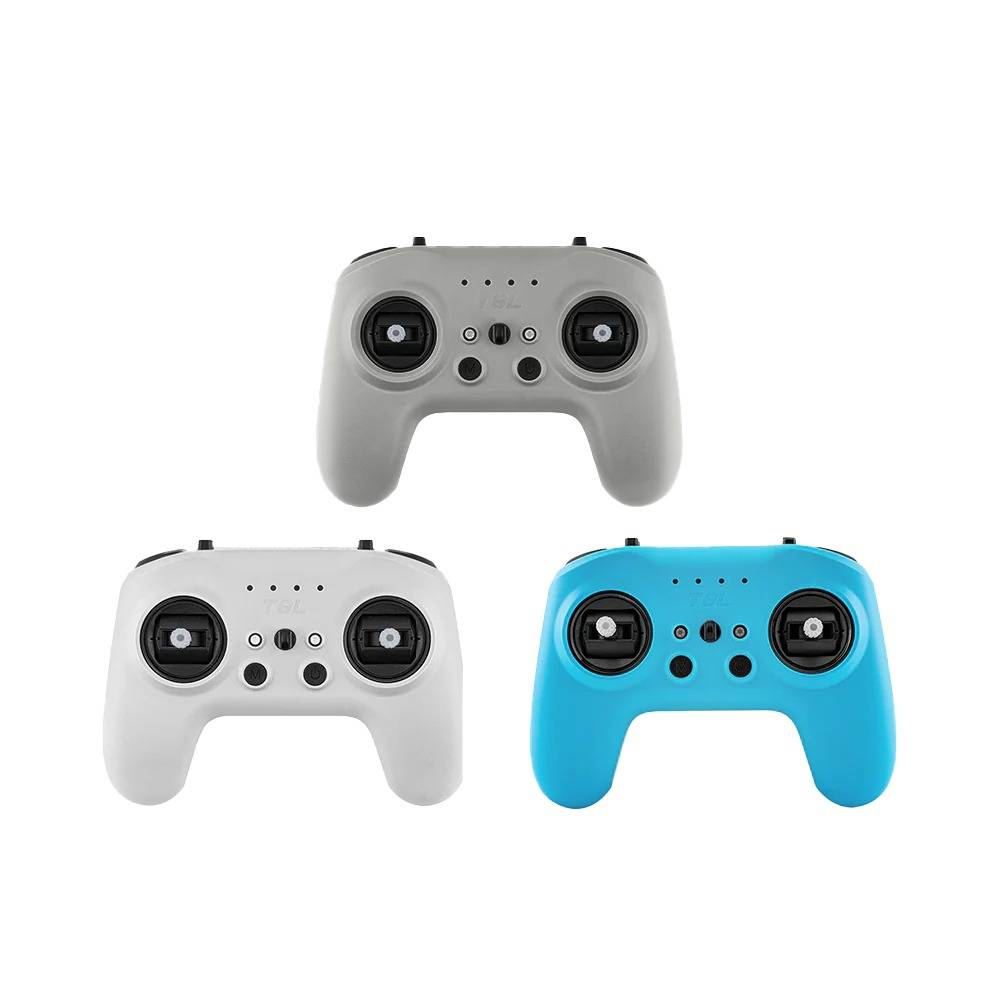

Colors: Grey, Blue or White
Package Includes
1 × RadioMaster T8L FCC transmitter
1 × USB-C cable
4 × low-tension gimbal springs
1 × user manual
Important: Two compatible button-top 18650 cells are required and not included. Use only the frequency and RF power permitted in your region, verify channel directions and failsafe settings, and perform a range check before flight.
