KFPlan KF17 1/12 Brushless RC Rally Truck | 4WD 60km/h 3S RTR
KFPlan KF17 1/12 Brushless RC Rally Truck | 4WD 60km/h 3S RTR
KFPlan KF17 1/12 Brushless RC Rally Truck
The KFPlan KF17 is a 1/12 scale 4WD brushless RC rally truck powered by a 3S LiPo system and capable of speeds up to 60km/h (37mph). It features a 2845 3800KV SURPASS brushless motor, Hobbywing 45A ESC, JX metal-gear steering servo, aluminum chassis, metal drivetrain, sealed center differential, and oil-filled aluminum shocks.
Designed for high-speed driving on pavement, dirt and loose surfaces, the KF17 combines strong acceleration with a durable hobby-grade drivetrain and fully proportional control.
Please note: This listing includes both the complete KF17 RTR truck and individual KF17 replacement / upgrade parts. Select “KF17 Complete RTR Truck” if you are purchasing the complete vehicle.
KFPlan KF17 Key Features
- Scale / Drive: 1/12, 4WD
- Top Speed: Up to 60km/h (37mph)
- Motor: 2845 3800KV SURPASS brushless motor
- ESC: Hobbywing 45A waterproof ESC, 3S compatible
- Servo: JX 3.35kg metal-gear steering servo
- Radio: FlySky FS-G4P 4-channel full-proportional transmitter
- Drivetrain: Metal drivetrain with sealed center differential
- Suspension: Oil-filled aluminum shocks with adjustable spring preload
- Chassis: Aluminum alloy chassis; optional carbon fiber upgrade available
- Bearings: Full ball-bearing system
- Lighting: Front LED light bar
- Protection: Splash-resistant electronics with low-voltage protection
Brushless 3S Performance
The KF17 uses a 2845 3800KV brushless motor paired with a Hobbywing 45A ESC for responsive throttle control and strong acceleration. Running on 3S power, the truck can reach approximately 60km/h, making it suitable for fast open-area driving while retaining the control expected from a hobby-grade RC platform.
Metal Drivetrain & Adjustable Suspension
The KF17 features a metal drivetrain designed to handle brushless power, along with a sealed center differential for consistent power delivery. Oil-filled aluminum shock absorbers help keep the chassis stable over uneven terrain and allow spring preload adjustment to suit different driving surfaces.
KFPlan KF17 Videos
Specifications
- Brand: KFPlan
- Model: KF17
- Scale: 1/12
- Drive System: 4WD
- Motor: 2845 3800KV brushless
- ESC: Hobbywing 45A
- Maximum Speed: Approx. 60km/h
- Control Distance: Approx. 200–300m
- Run Time: Approx. 15–20 minutes
- Charging Time: Approx. 150 minutes
- Body Material: Polycarbonate
- Chassis: Aluminum alloy
- Steering Servo: JX 3.35kg metal gear
- Suspension: Oil-filled aluminum shocks
- Water Resistance: Splash-resistant
- Transmitter Battery: 4 × AA batteries, not included

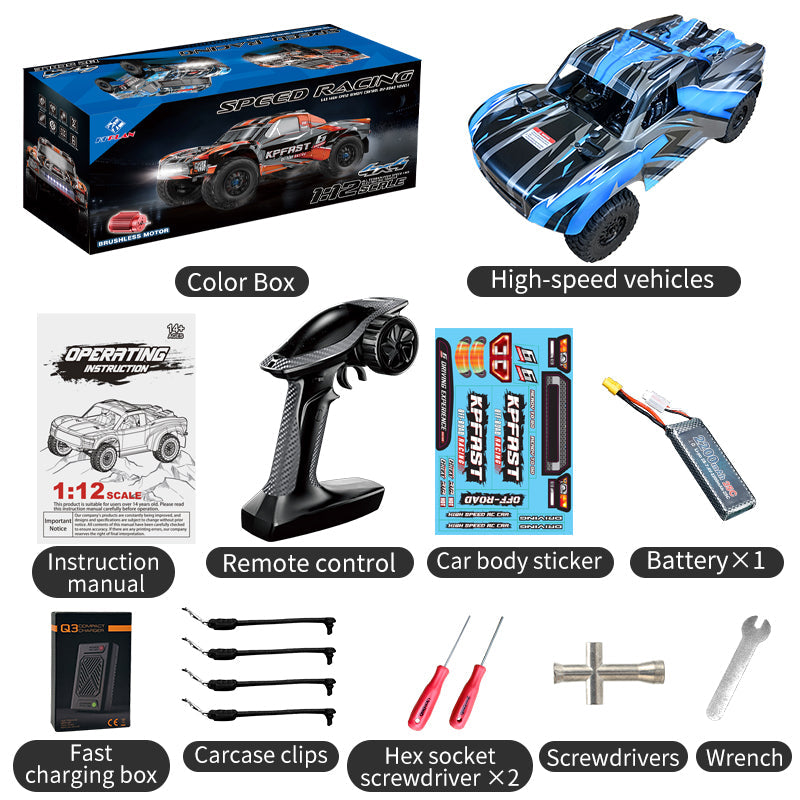

Package Included – KF17 Complete RTR Truck
- 1 × KFPlan KF17 1/12 Brushless RC Truck
- 1 × FlySky FS-G4P 4CH Transmitter
- 1 × USB / Type-C Balance Charger
- 4 × Body Clips
- 1 × Wheel Removal Tool
- 1 × User Manual

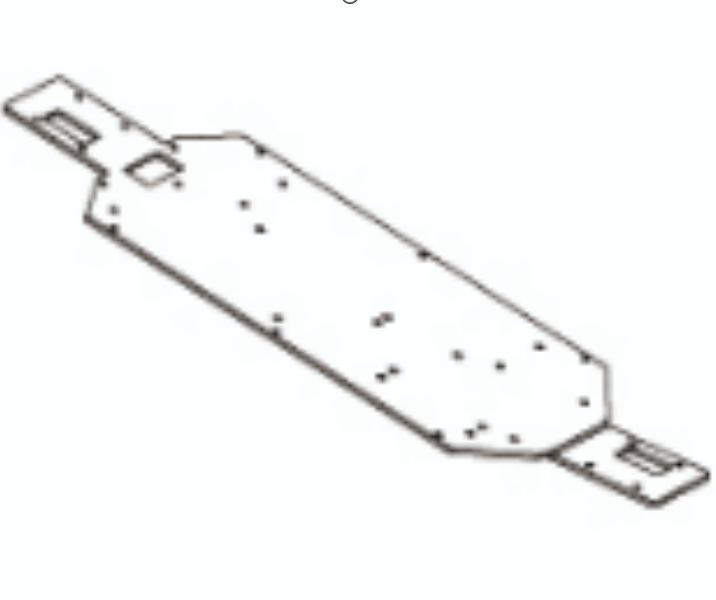

KFPlan KF17 Spare Parts & Upgrades
Replacement and upgrade parts for the KFPlan KF17 are available directly from the options on this page. Available parts include drivetrain components, suspension parts, shocks, motor, ESC, receiver, servo, gears, bearings, tires, body parts and other replacement components.
Important: Spare-part options do not include the complete KF17 vehicle. If you need the complete RC truck, select “KF17 Complete RTR Truck”.
Download the KFPlan KF17 Spare Parts List (PDF)
