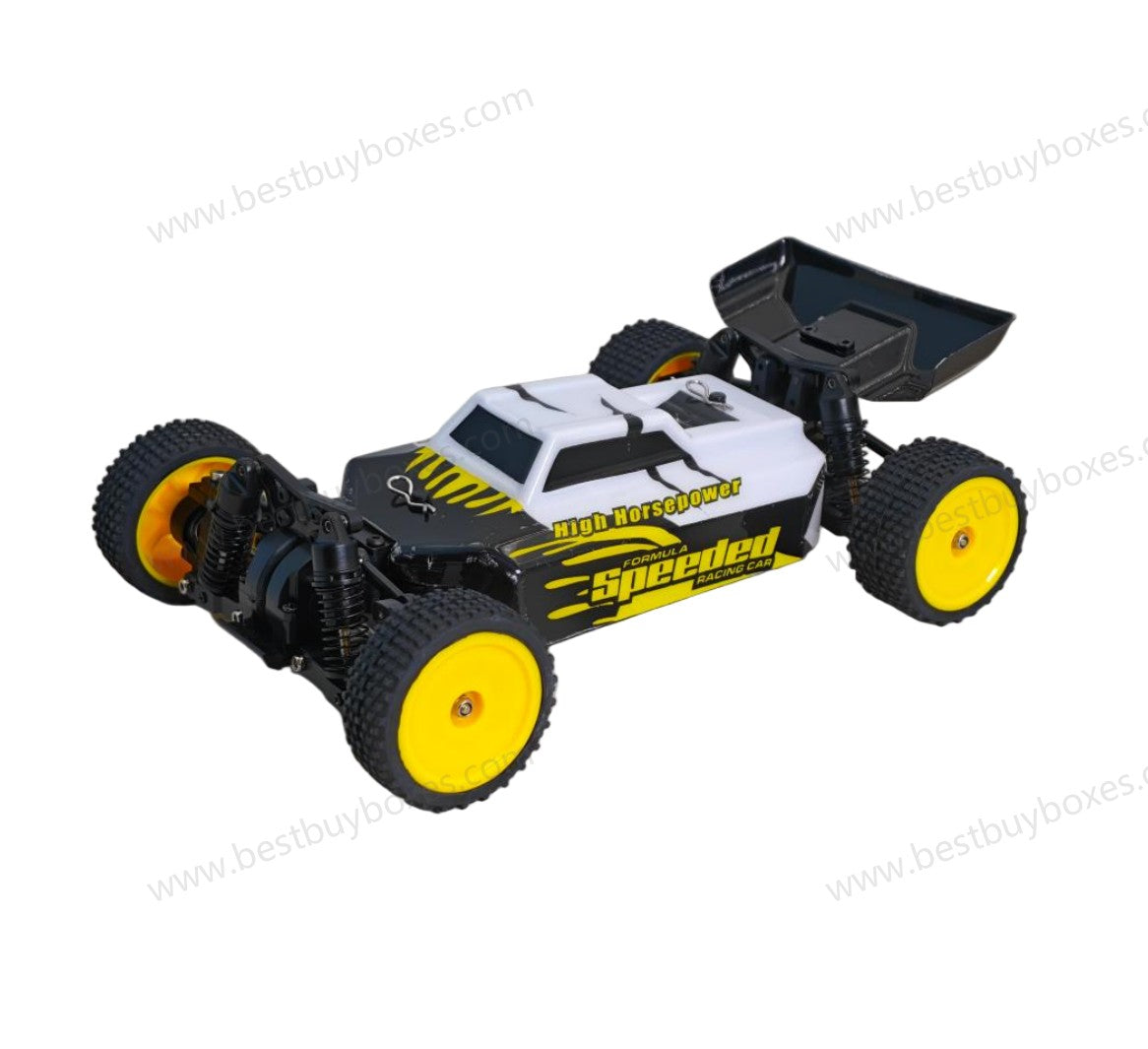

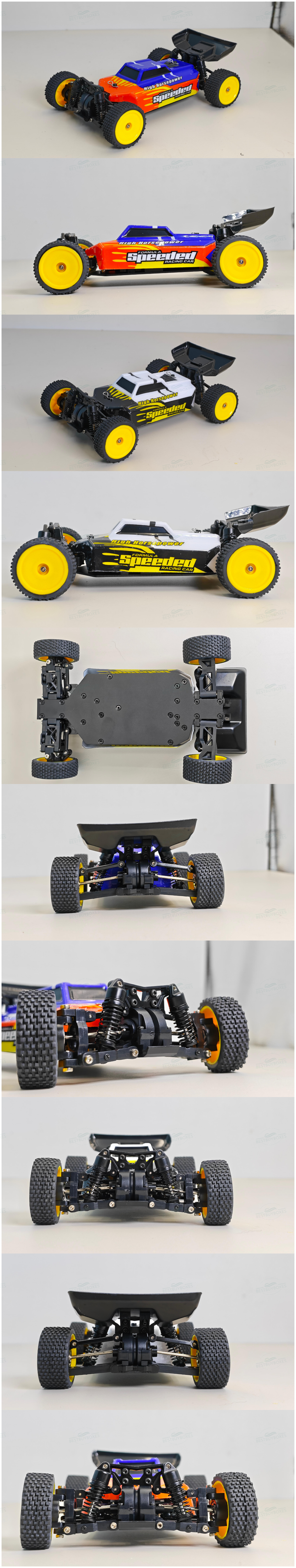

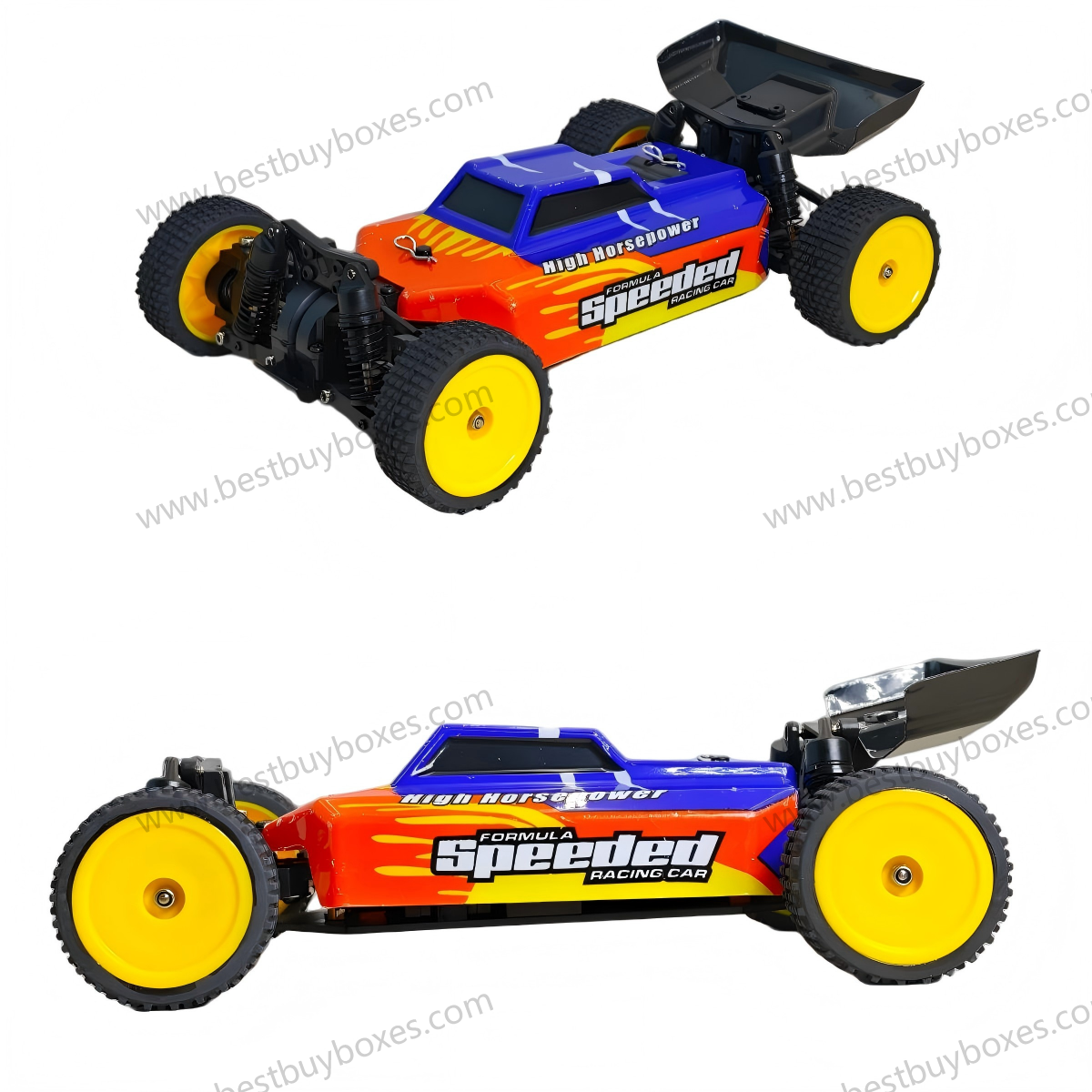

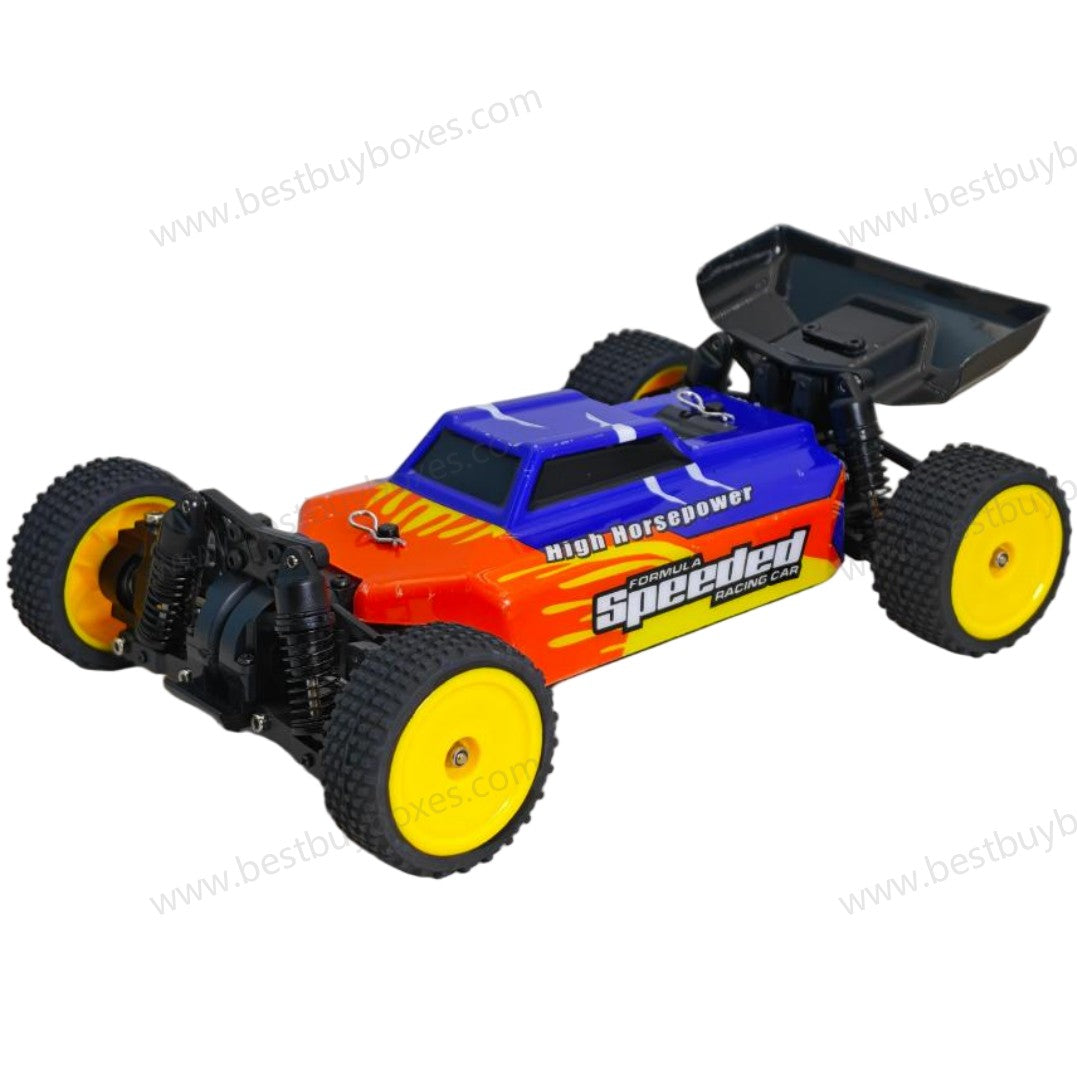

The Jiabaile 1/24 4WD RC Buggy brings hobby-style construction to a compact off-road platform. Choose a brushed vehicle for easier control in smaller spaces or a faster brushless version for stronger acceleration. Genuine replacement parts are available from the same option menu, so the vehicle and maintenance parts stay together in one listing.
Brushed or Brushless
Brushed: claimed top speed up to 30km/h and runtime up to 20 minutes
Brushless: 15A ESC with 1626 6800KV motor, claimed top speed up to 50km/h and runtime up to 30 minutes
Both versions use a 7.4V 500mAh battery with overcharge, over-discharge, and over-current protection
Actual speed and runtime vary with surface, load, battery condition, temperature, and driving style.
Hobby-Style Chassis Features
1/24 scale full-proportional 4WD platform
6061 aluminum-alloy chassis

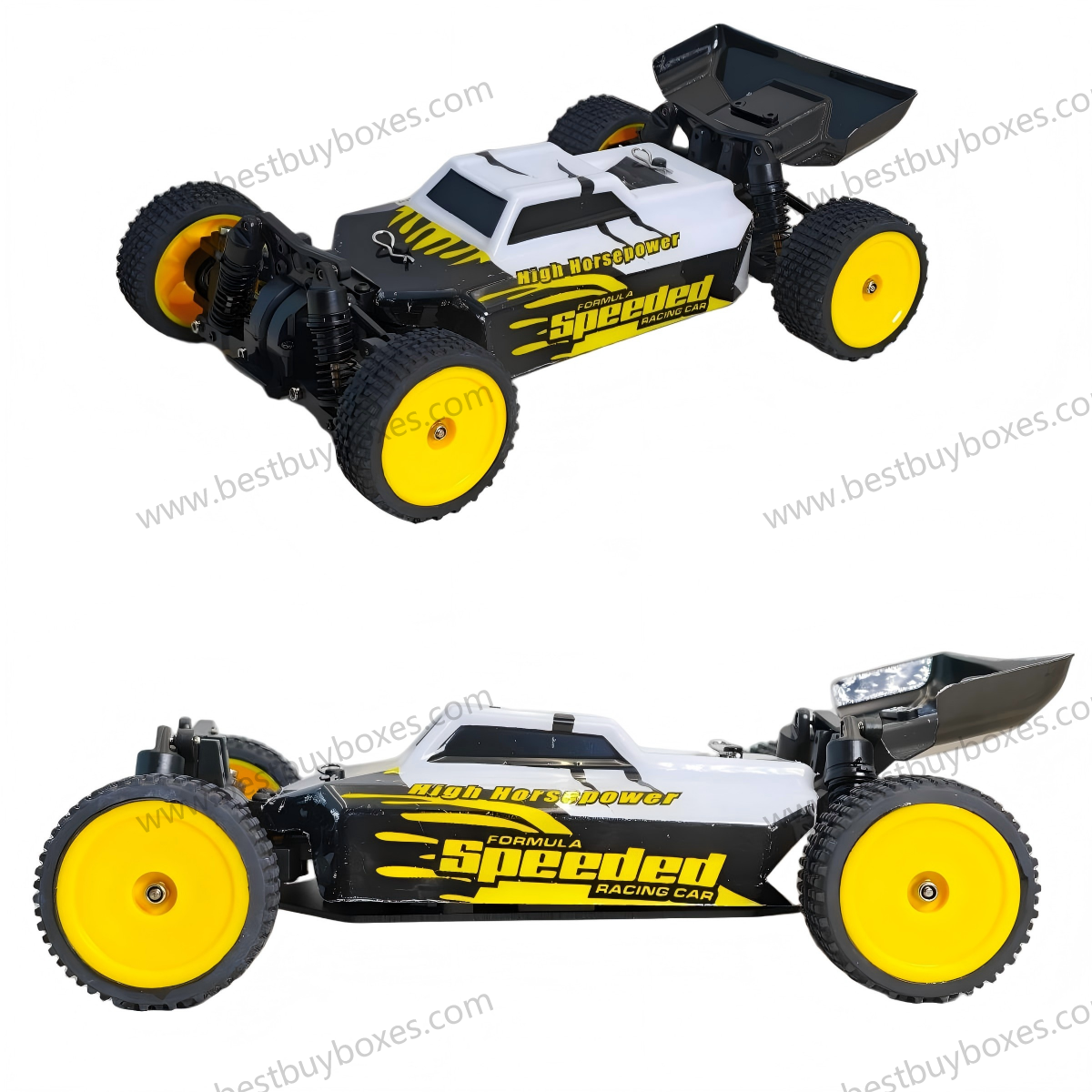

Oil-filled shock absorbers
Front and rear adjustable differentials
Four-wheel CVD universal driveshafts
Rubber off-road tires
Independent receiver and ESC
5g steering servo with protection
12.9-grade M2 hex hardware
CNC adjustable motor mount on brushless version
Vehicle Specifications
Scale
1/24
Drive
4WD
Power Options
Brushed / Brushless
Battery
7.4V 500mAh
Charging Time
Approx. 30 minutes
Chassis
6061 aluminum alloy
Drivetrain
Front/rear differentials and four CVD shafts
Shocks
Oil-filled
Servo
5g with protection
Vehicle Package Includes
1 × RC buggy
1 × radio controller
1 × battery charger
1 × screwdriver
4 × body clips

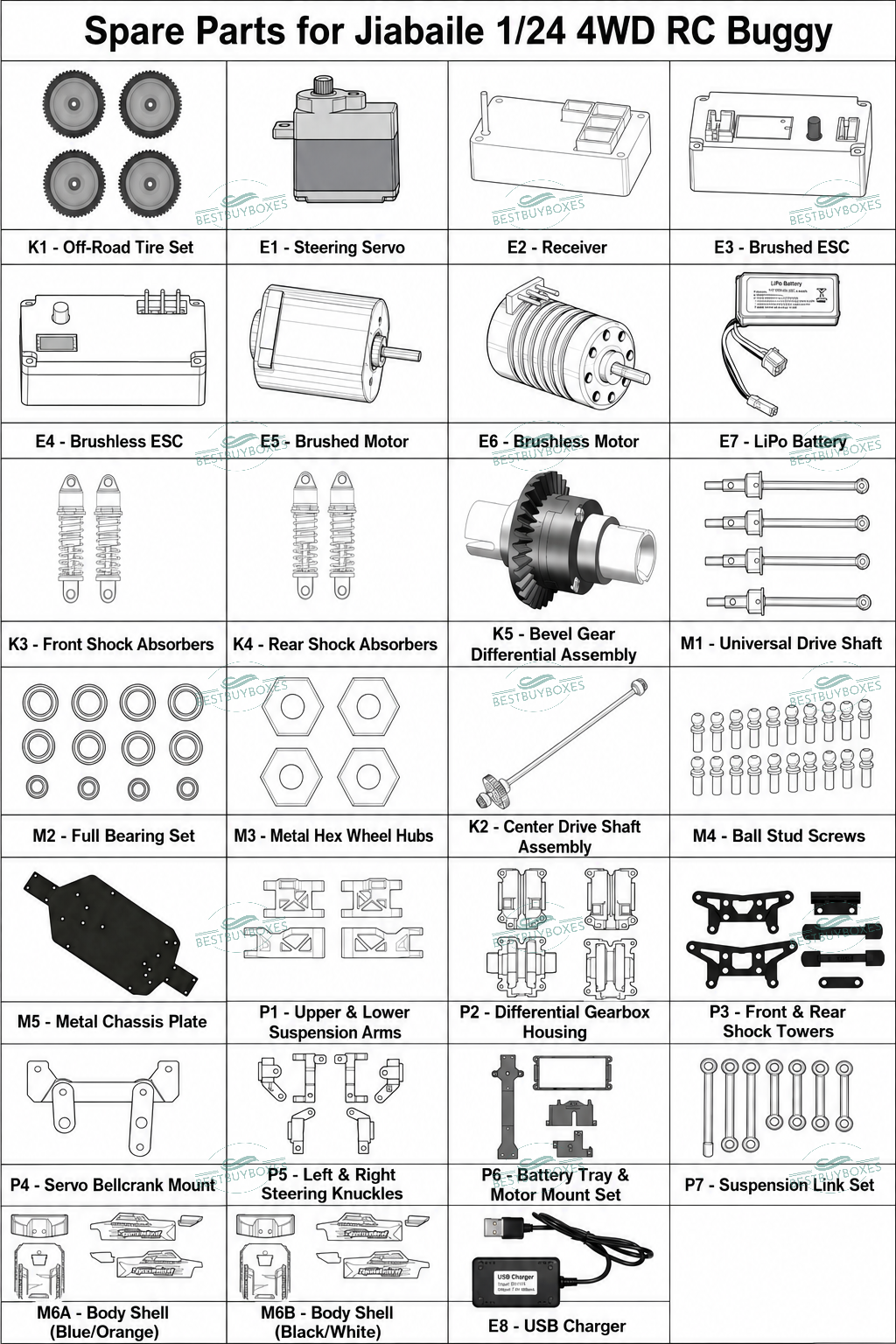

Available Spare Parts
Select the required part number from the product option menu.
Part No.
Part Name

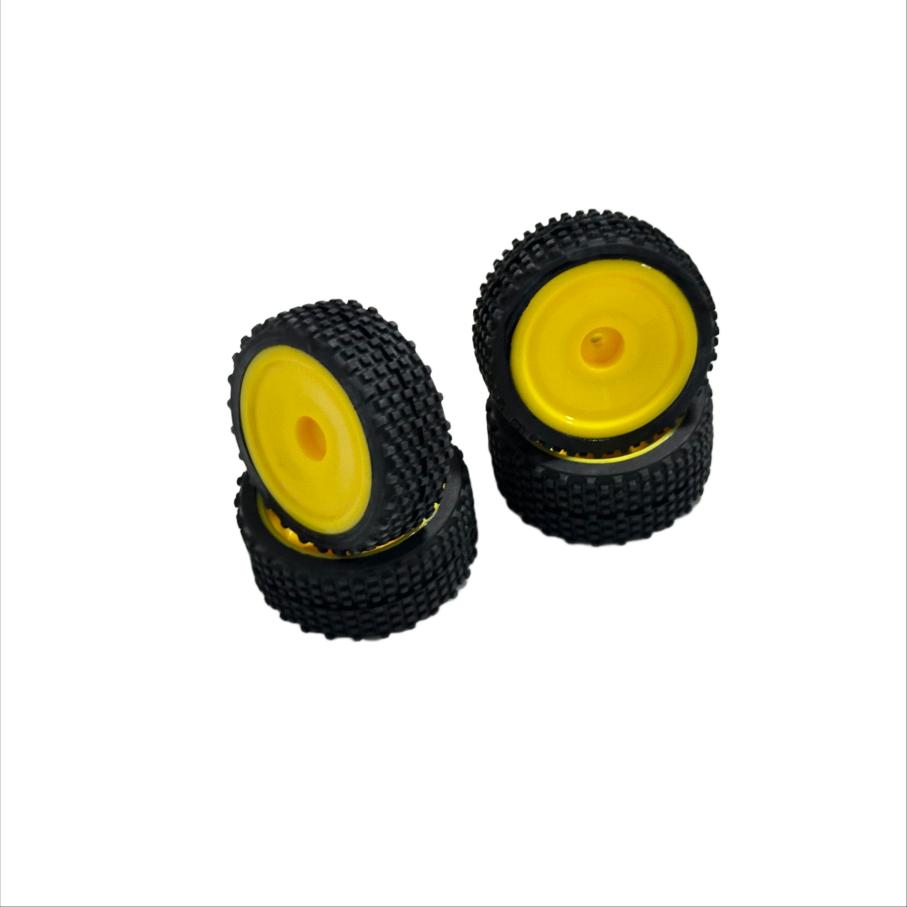

K1
Off-Road Wheel & Tire Set (4 pcs)
E1
Steering Servo
E2
Receiver
E3
Brushed ESC
E4
Brushless ESC
E5
Brushed Motor
E6
Brushless Motor

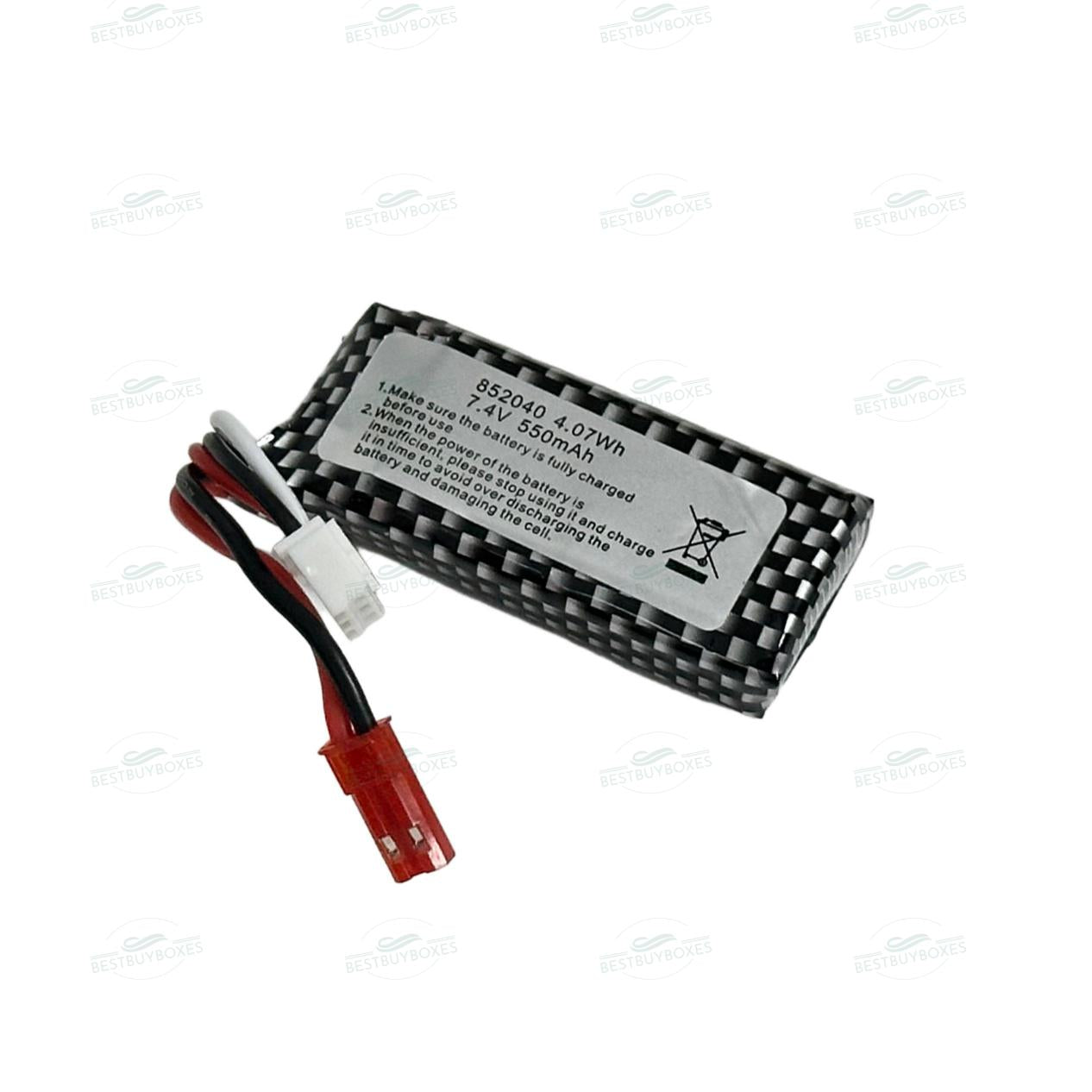

E7
LiPo Battery
K3
Front Shock Absorbers
K4
Rear Shock Absorbers

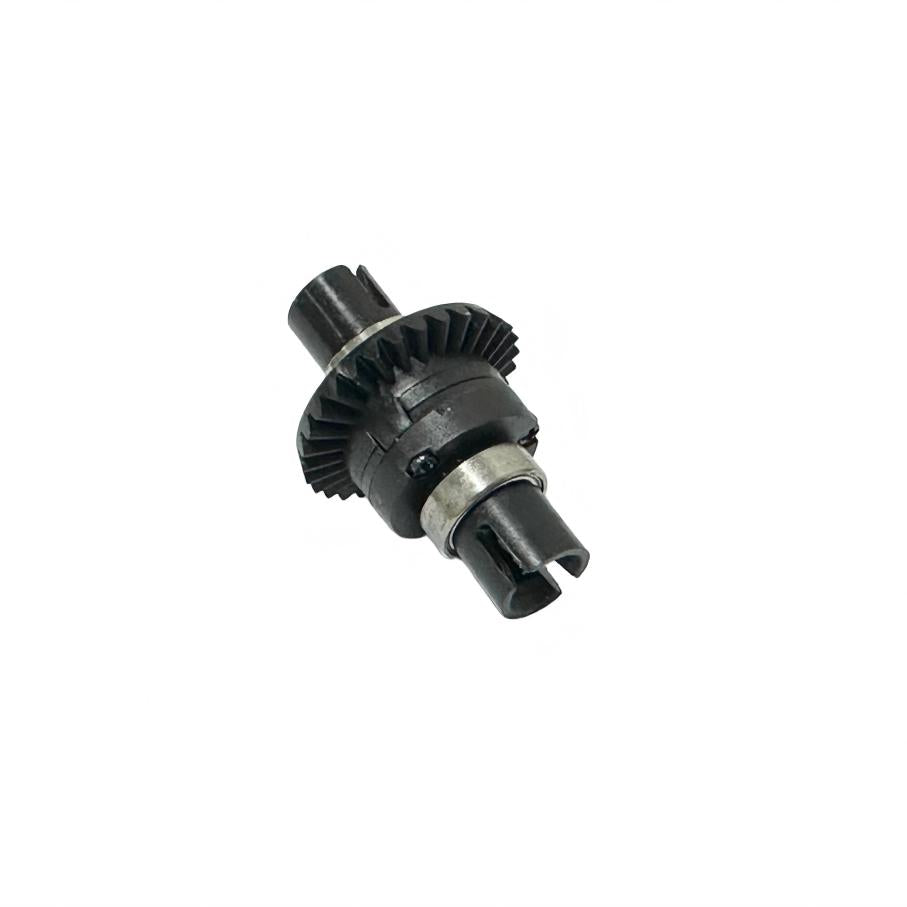

K5
Bevel Gear Differential Assembly
M1
Universal Drive Shaft Set
M2
Complete Bearing Set

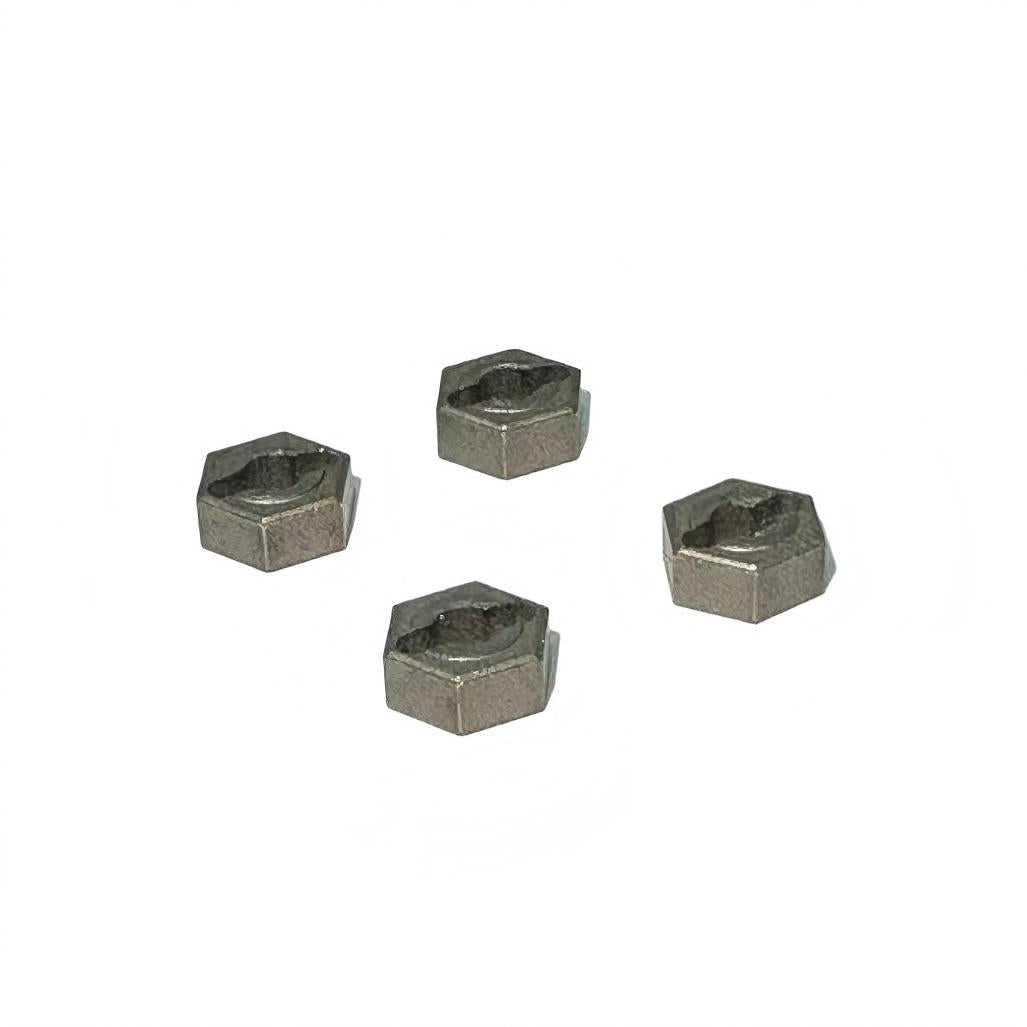

M3
Metal Wheel Hex Hub Set
K2
Center Drive Shaft Assembly
M4
Linkage Ball Stud Set
M5
Metal Chassis Plate
P1
Upper & Lower Suspension Arm Set
P2
Differential Gearbox Housing Set
P3
Front & Rear Shock Tower Set
P4
Steering Bellcrank Assembly
P5
Left & Right Steering Knuckle Set
P6
Battery Tray & Motor Mount Assembly
P7
Suspension Link Set

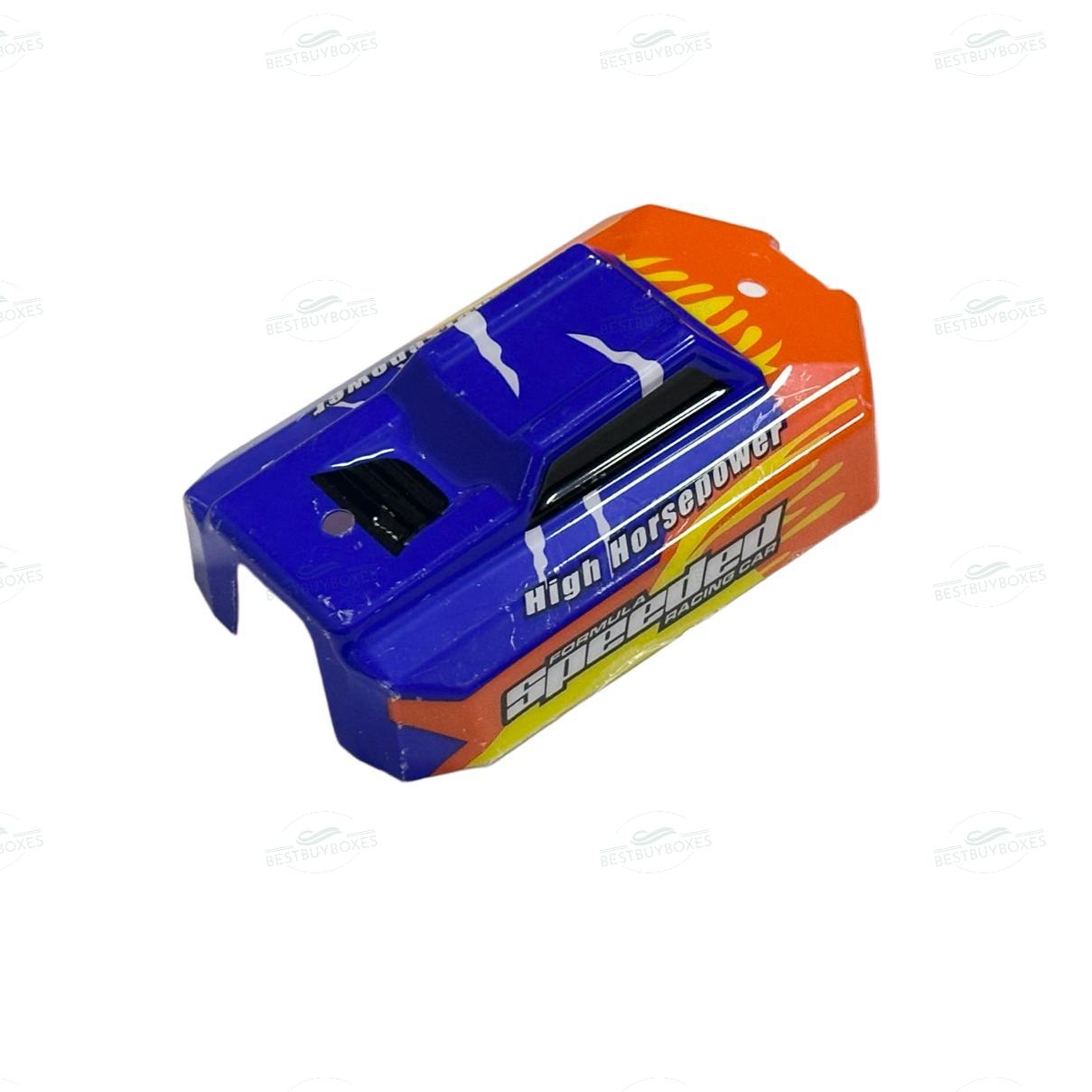

M6A
Body Shell – Blue/Orange
M6B
Body Shell – Black/White
E8
USB Charging Cable
Ordering note: Vehicle and spare-part options are sold individually. The package contents above apply only when a complete RC buggy option is selected.
