The Jiabaile JBL1001–JBL1004 platform covers four 1/10-scale 4WD brushless vehicles: an off-road buggy, racing truck, desert truck and rally car. Each existing All4RC variant includes the selected vehicle and a 7.6V 5600mAh 60C 2S Li-HV battery, as stated in its variant title.
Shared Equipment
Surpass 3650 3800KV brushless motor with cooling fan
3mm aluminum chassis plate and high-toughness nylon structure
Oil-filled shocks, metal drive cups and powder-metal differential gears
Adjustable camber, toe and ride height
Model Specifications

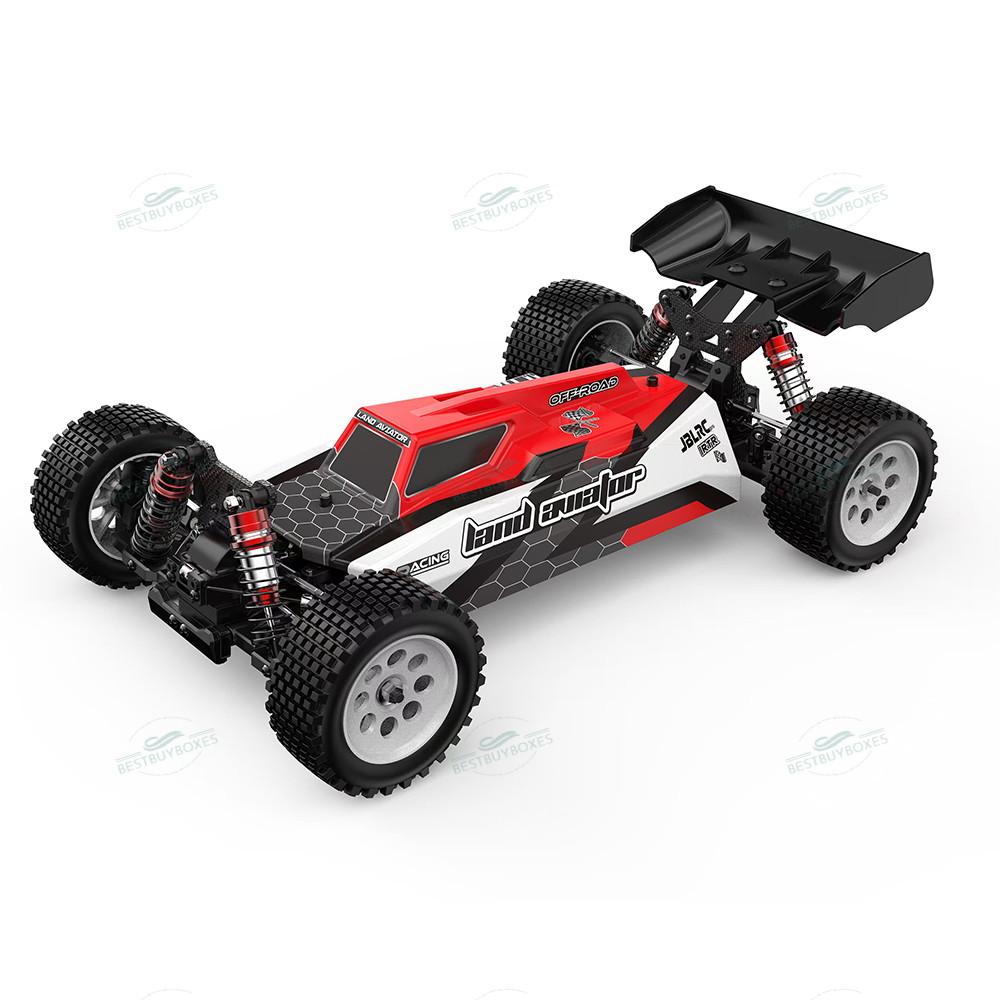

JBL1001: 420 × 250 × 150 mm; approximately 1,847 g; supplier-rated up to 50 km/h on 2S

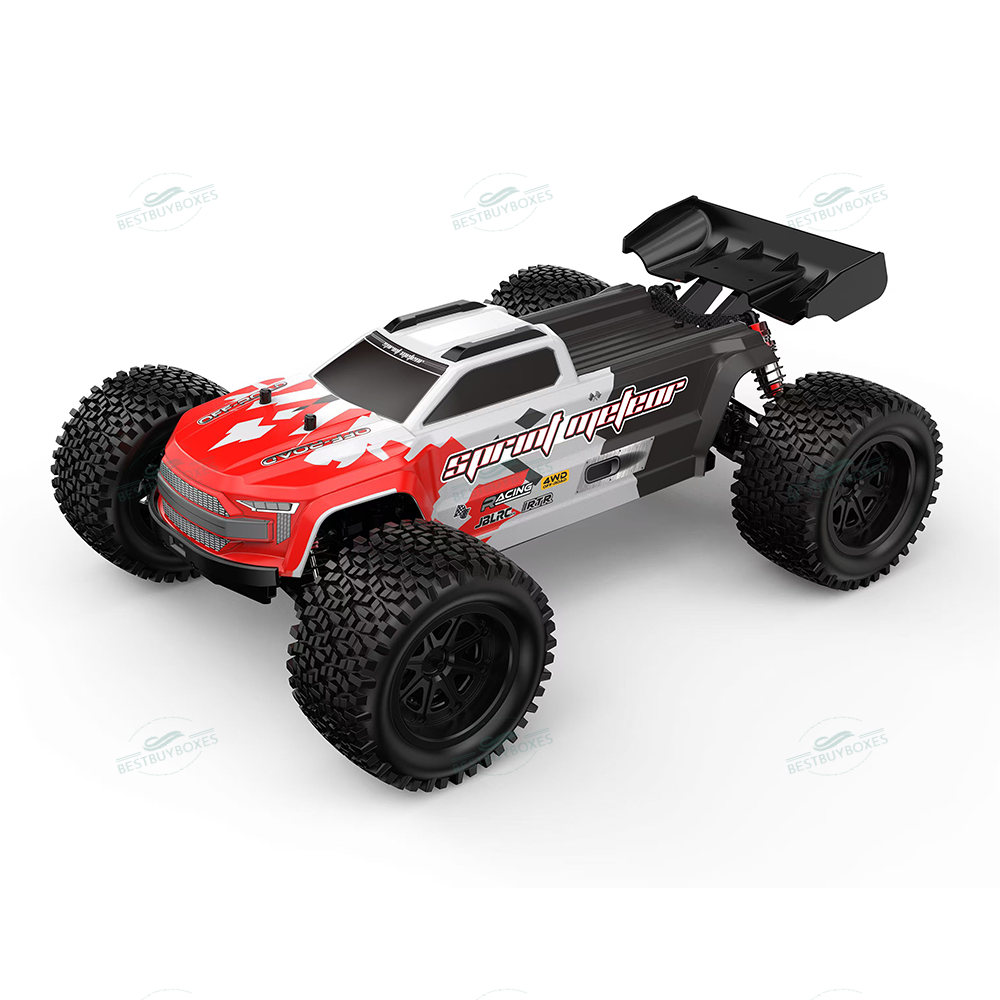

JBL1002: 420 × 310 × 160 mm; approximately 2,485 g; supplier-rated up to 60 km/h on 2S

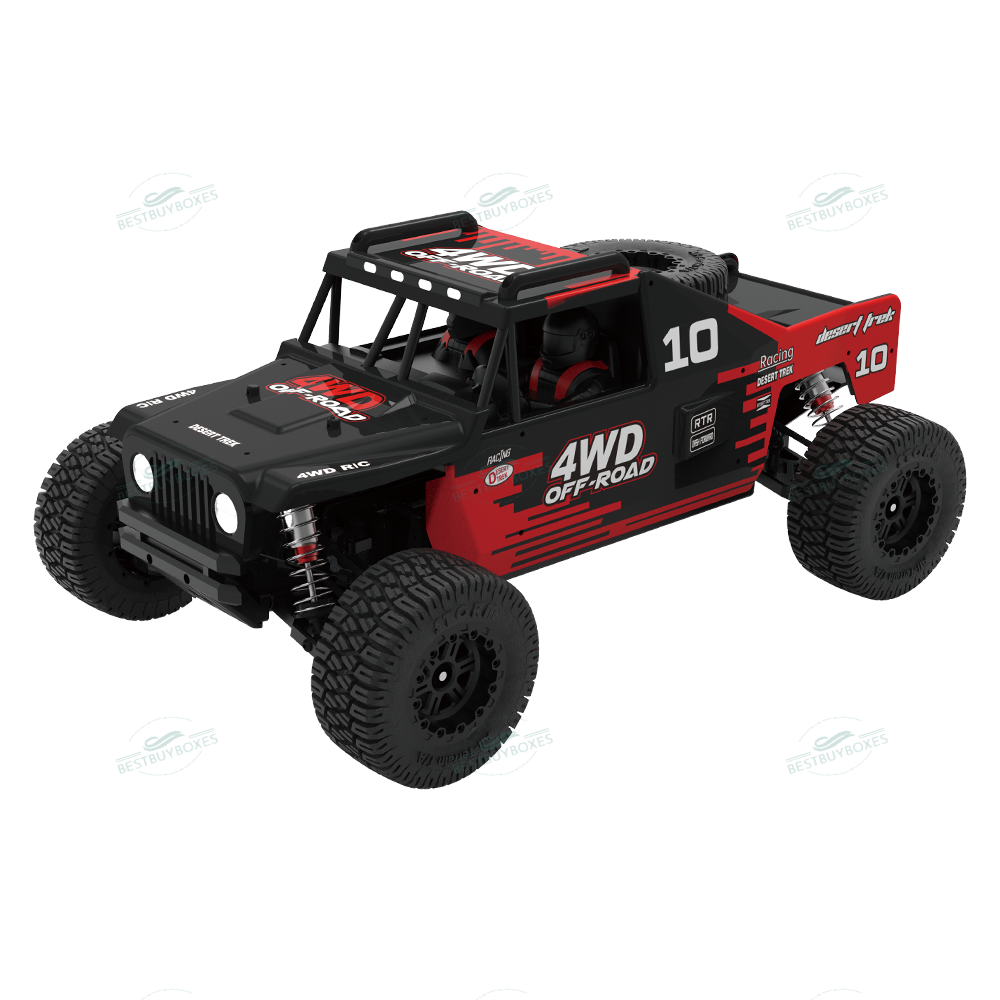

JBL1003: 420 × 270 × 180 mm; approximately 2,446 g; supplier-rated up to 55 km/h on 2S

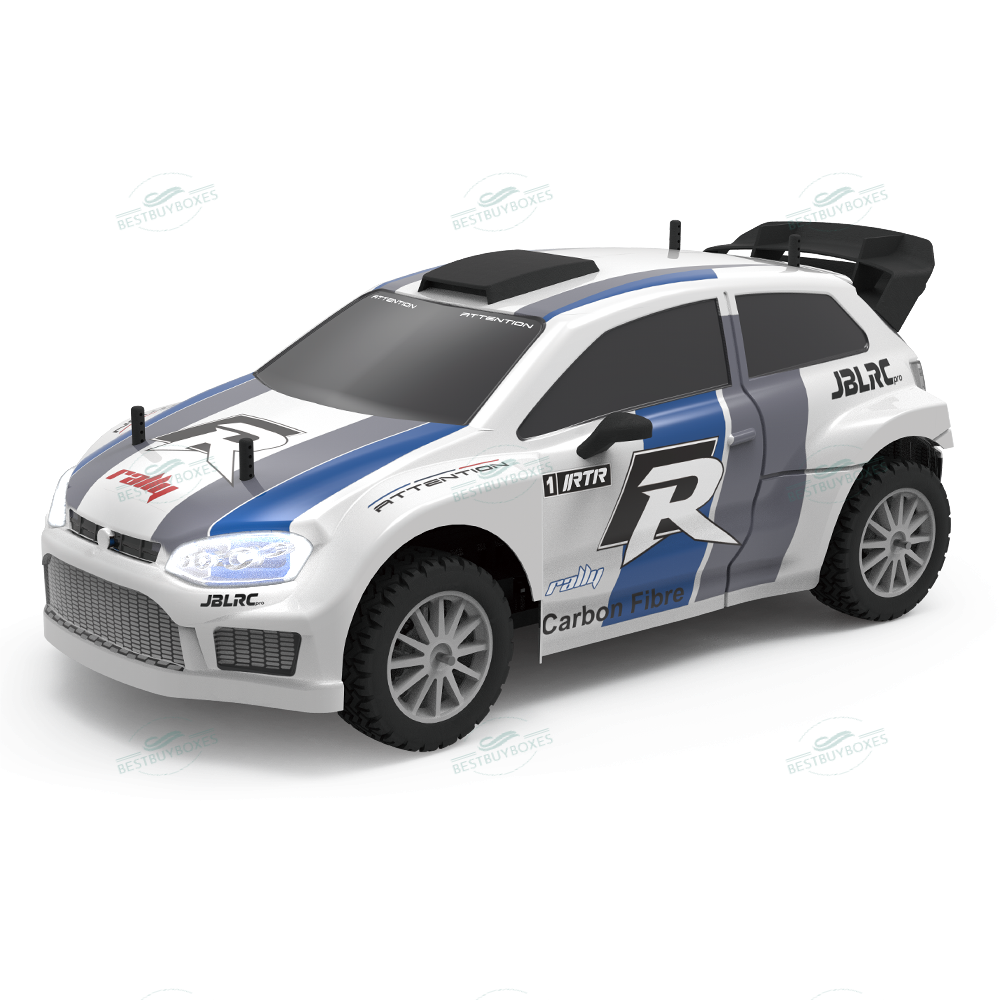

JBL1004: 480 × 250 × 200 mm; approximately 2,040 g; supplier-rated up to 50 km/h on 2S
Control range: up to approximately 350 m in suitable conditions
Package Includes
1 × selected Jiabaile vehicle
1 × 7.6V 5600mAh 60C 2S Li-HV battery
1 × DumboRC X5P transmitter
1 × user manual
Sticker sheet, basic spare parts and tools
A battery charger is not confirmed as included. The source page's generic package list conflicts with the existing All4RC battery-inclusive variant titles; this description follows the All4RC variant configuration. Electronics are splash-resistant only—do not immerse the vehicle. Confirm battery dimensions, connector and ESC limits before using any alternative 3S pack, and monitor temperatures.
