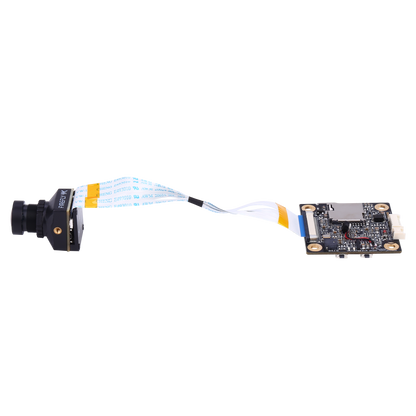

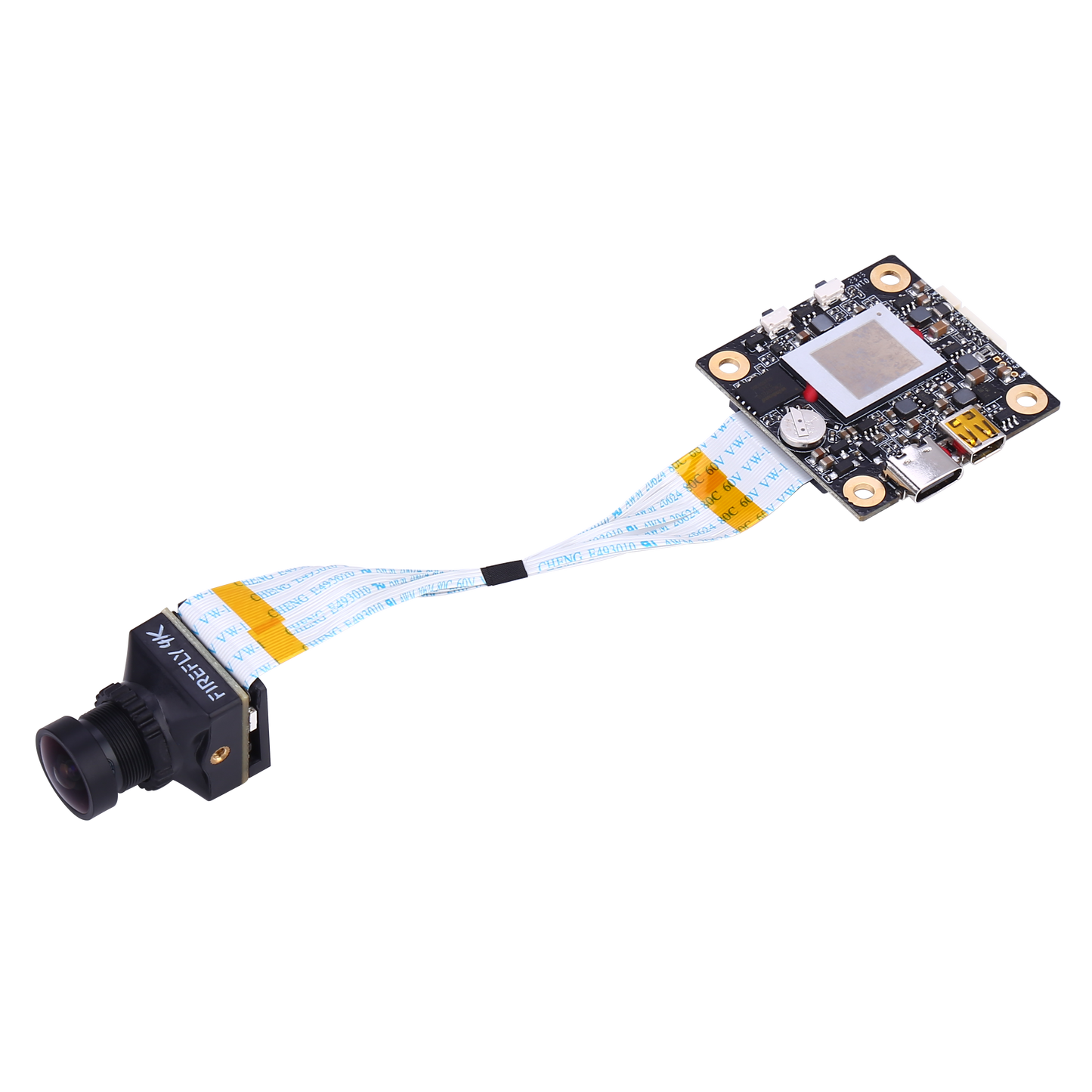

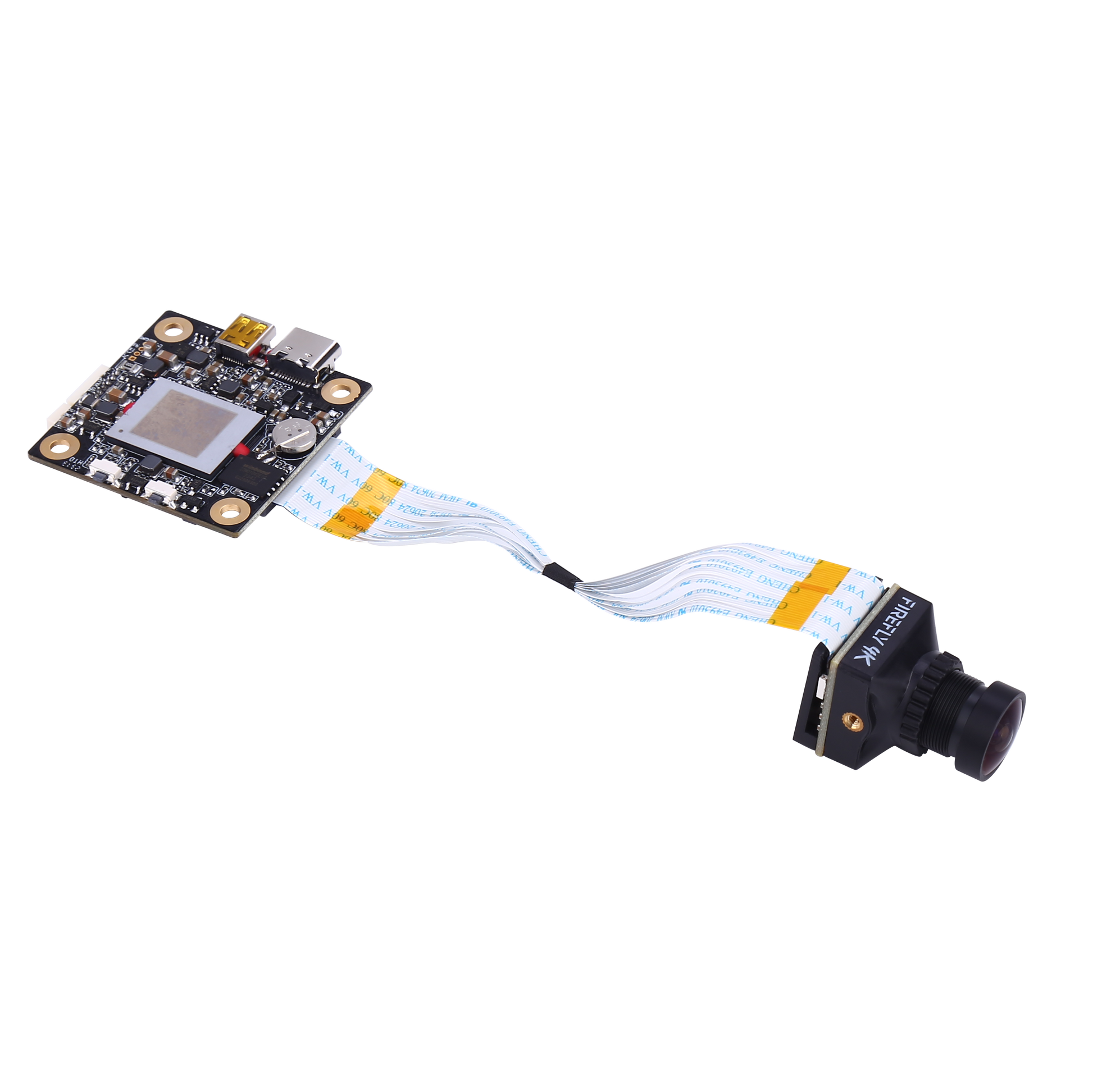

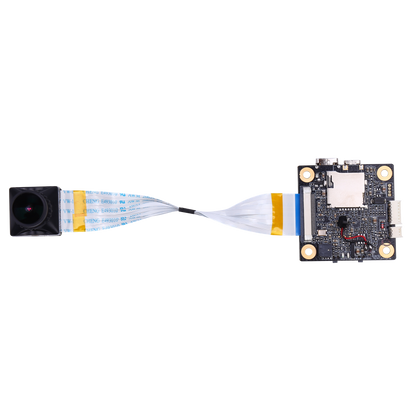

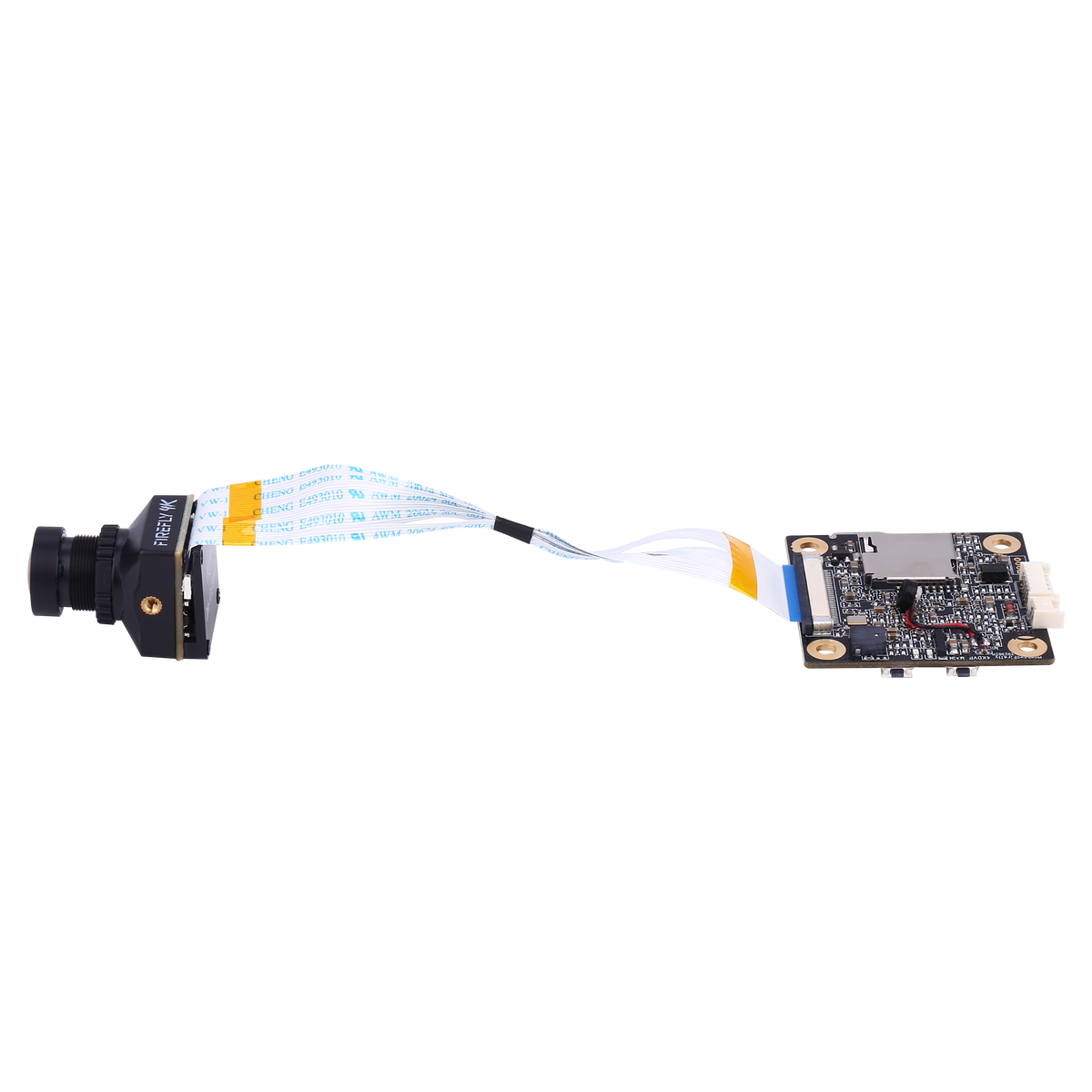

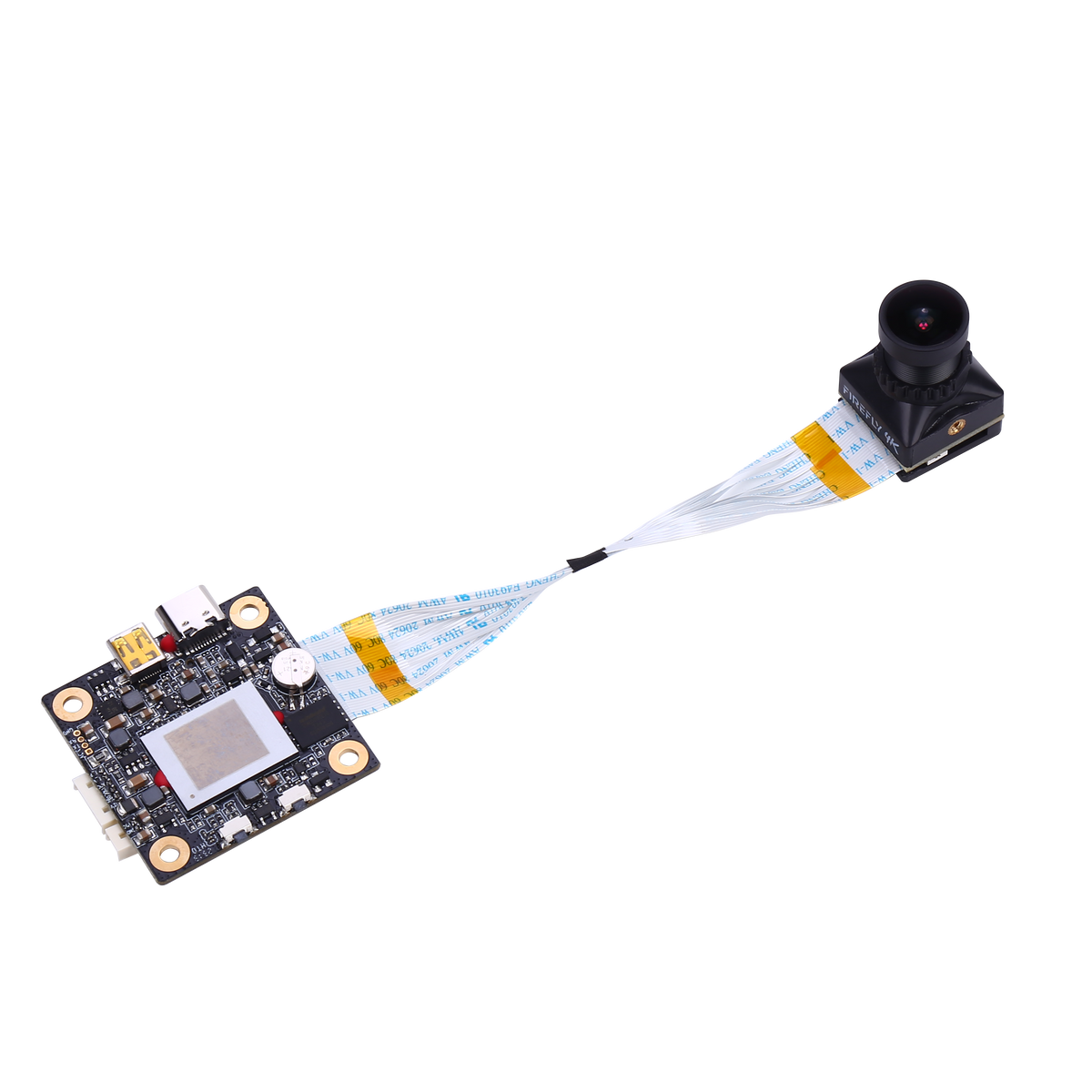

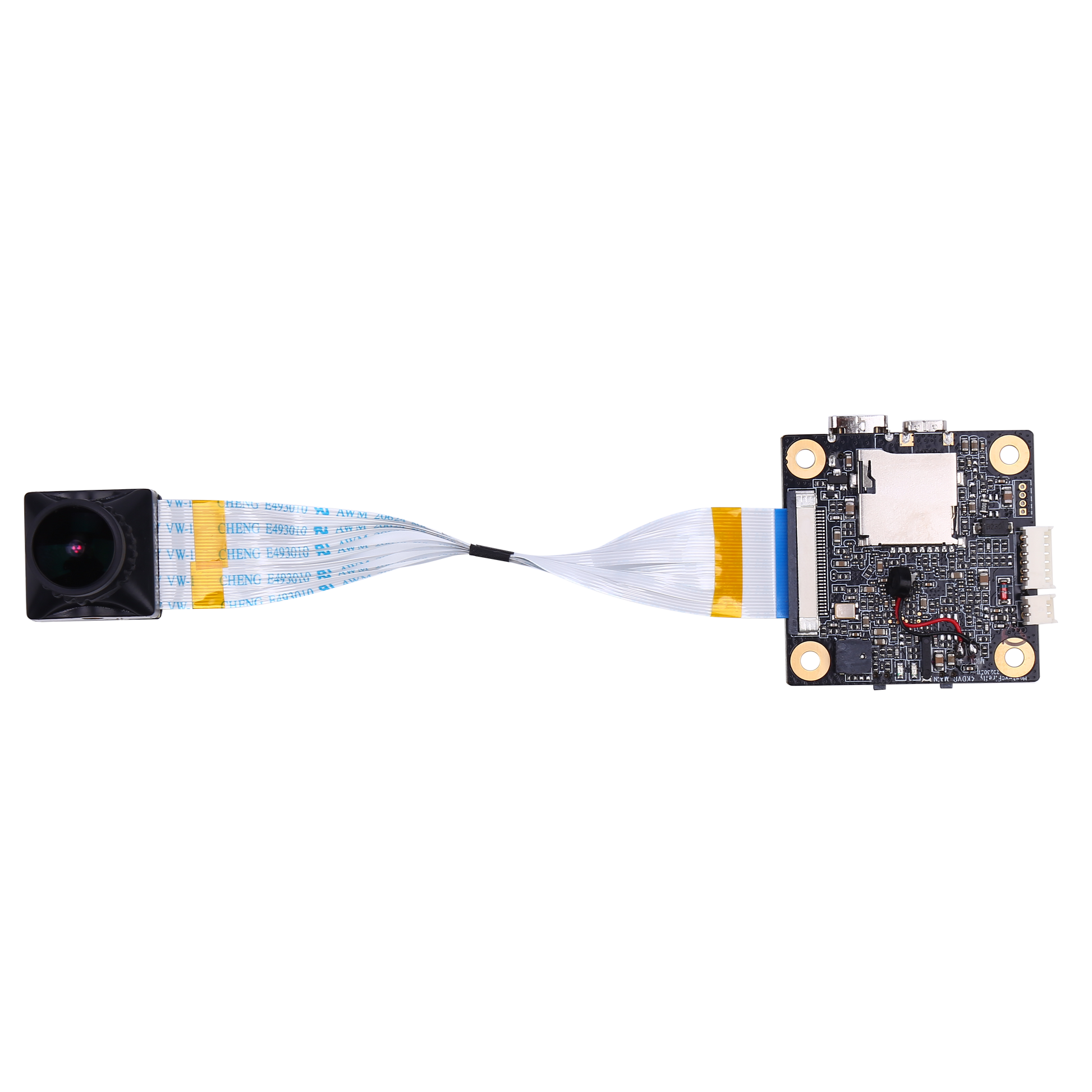

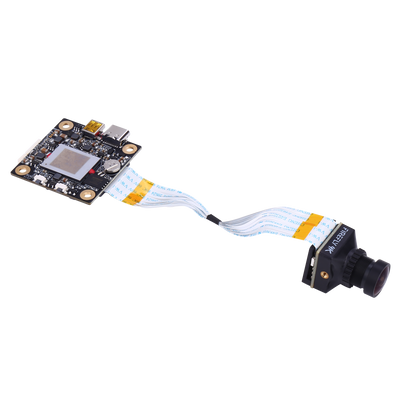

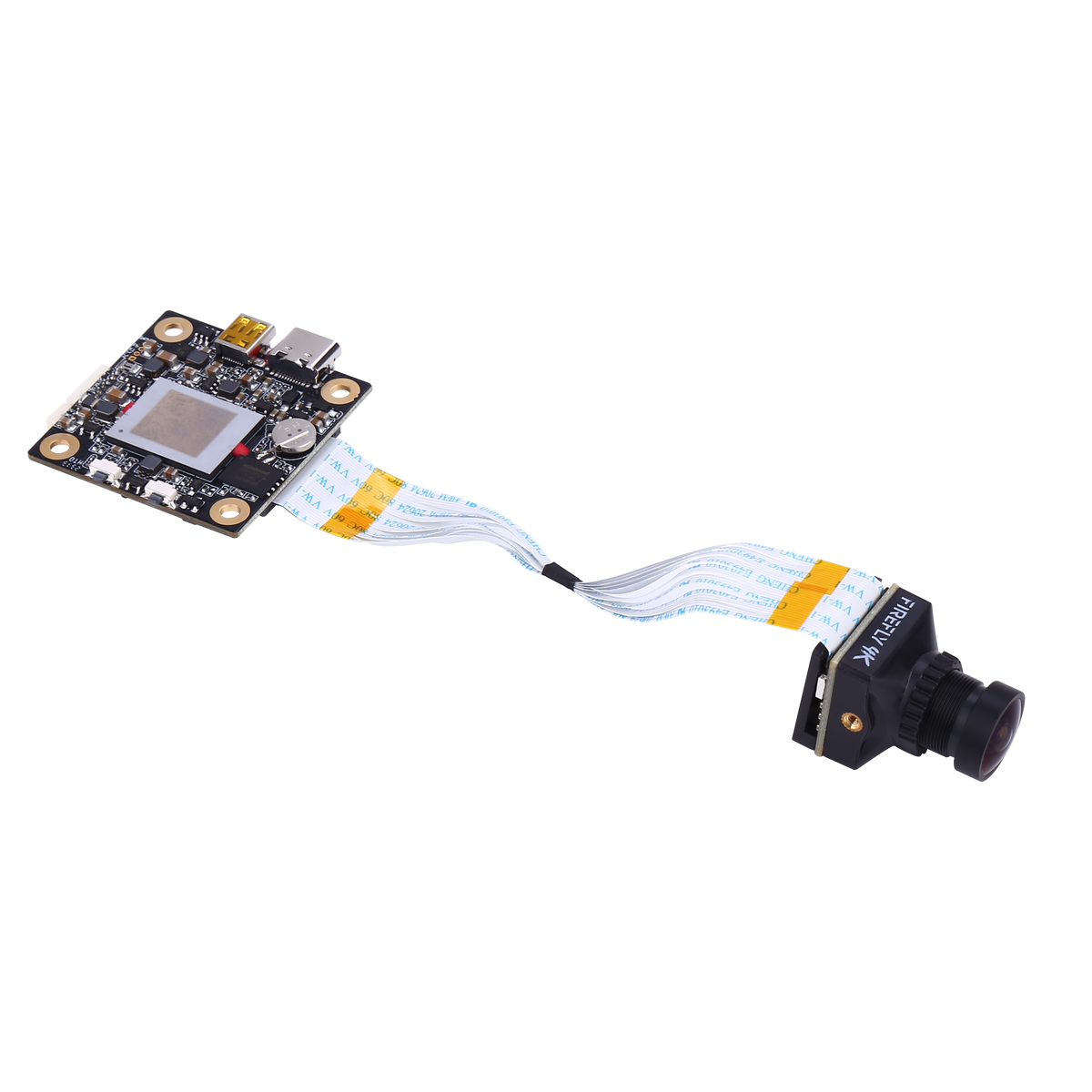

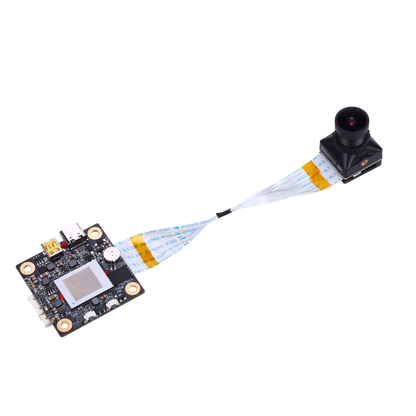

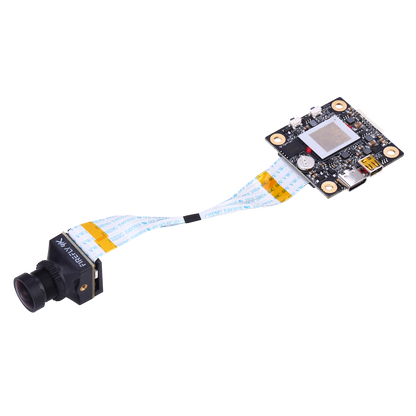

The Hawkeye Split V5 combines a 19 × 19mm camera module with a separate 38 × 38mm recording board, giving FPV builders more freedom to position the lens and electronics. It records up to 4K at 30fps, provides low-latency analog video output, and supports HDMI and USB video workflows.
Key Features
Sony IMX415 image sensor with 170° field of view
4K recording at 30fps and 1080p recording up to 100fps
Internal electronic image stabilization plus gyro data for Gyroflow processing
PAL/NTSC analog video output for compatible FPV equipment
Micro HDMI output and USB-C connection
UVC webcam output and 1080p USB streaming
Split-board design for compact aircraft and custom installations
PAL/NTSC CVBS; supplier-rated latency approximately 0.04 second
HDMI output
Up to 4K 30fps; Micro HDMI port
USB video
UVC camera modes; streaming up to 1080p 30fps
Storage
8–256GB U3 microSD/TF card, FAT32 or exFAT; card not included
Input voltage
6–24V DC
Maximum current
900mA at 6V
Board / camera size
38 × 38mm / 19 × 19mm
Weight
Approximately 19g

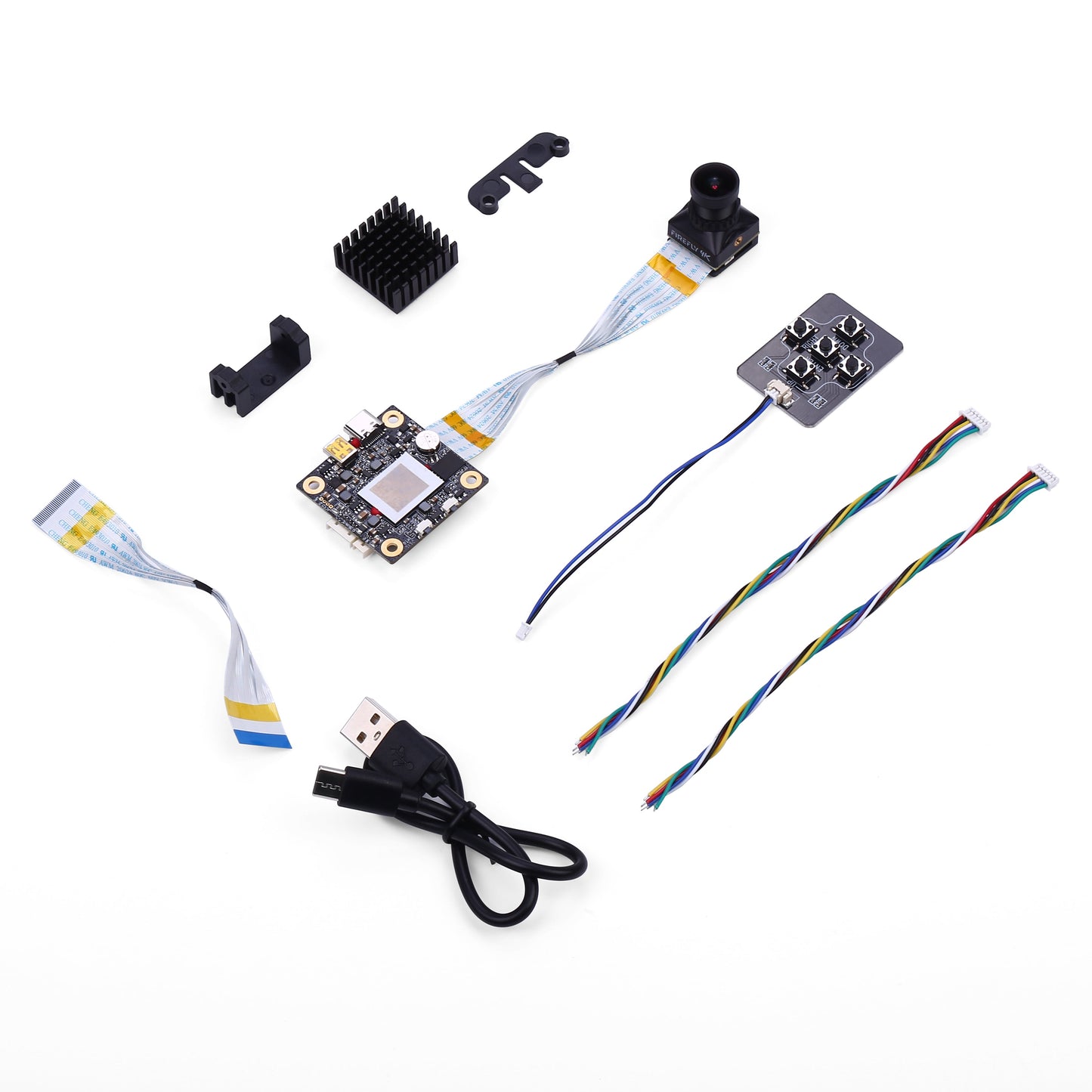

Package Includes
1 × Hawkeye Split V5 HDMI/USB/AV FPV camera kit
Installation notes: A microSD card is not included. Confirm your airframe clearance, mounting-hole pattern, power polarity and video-system compatibility before installation. Provide adequate airflow, secure all wiring away from propellers, and test recording and video output on the bench before flight.
