Hawkeye HD 720p Digital FPV Air Unit & Goggles Combo

The Hawkeye HD system pairs a 5.8 GHz digital FPV air unit and camera with 720p goggles. It is designed for compatible FPV aircraft requiring a self-contained digital video link with onboard recording and dual-antenna transmission.

Key Features

• 720p at 60 fps digital live video
• Latency as low as 35 ms under suitable conditions
• Dual-antenna 2T2R transmission
• Integrated MP4 recording
• 1280 × 720 goggles display with 75-degree field of view
• 2S–6S power compatibility
• Betaflight 4.3.0 or later integration support

Air Unit Specifications

• Dimensions: 32.8 × 32.8 × 13 mm
• Weight: approximately 32 g with camera
• Input: 7.4–26.4 V
• Camera sensor: 1/2.8-inch CMOS
• Selectable lens field of view: 140 or 155 degrees
• Operating temperature: -10 to 40°C

Transmission & Goggles

• Frequency: 5.725–5.850 GHz
• Bandwidth: up to 20 MHz
• Claimed maximum range: up to 10 km in FCC mode under ideal conditions
• Supplier-rated output: below 33 dBm FCC / below 14 dBm CE
• Goggles resolution: 1280 × 720 at 60 fps
• Goggles input: 7.4–26.4 V
• Mini HDMI output: up to 1080p60
• MicroSD support: up to 64 GB
• Antenna ports: SMA female

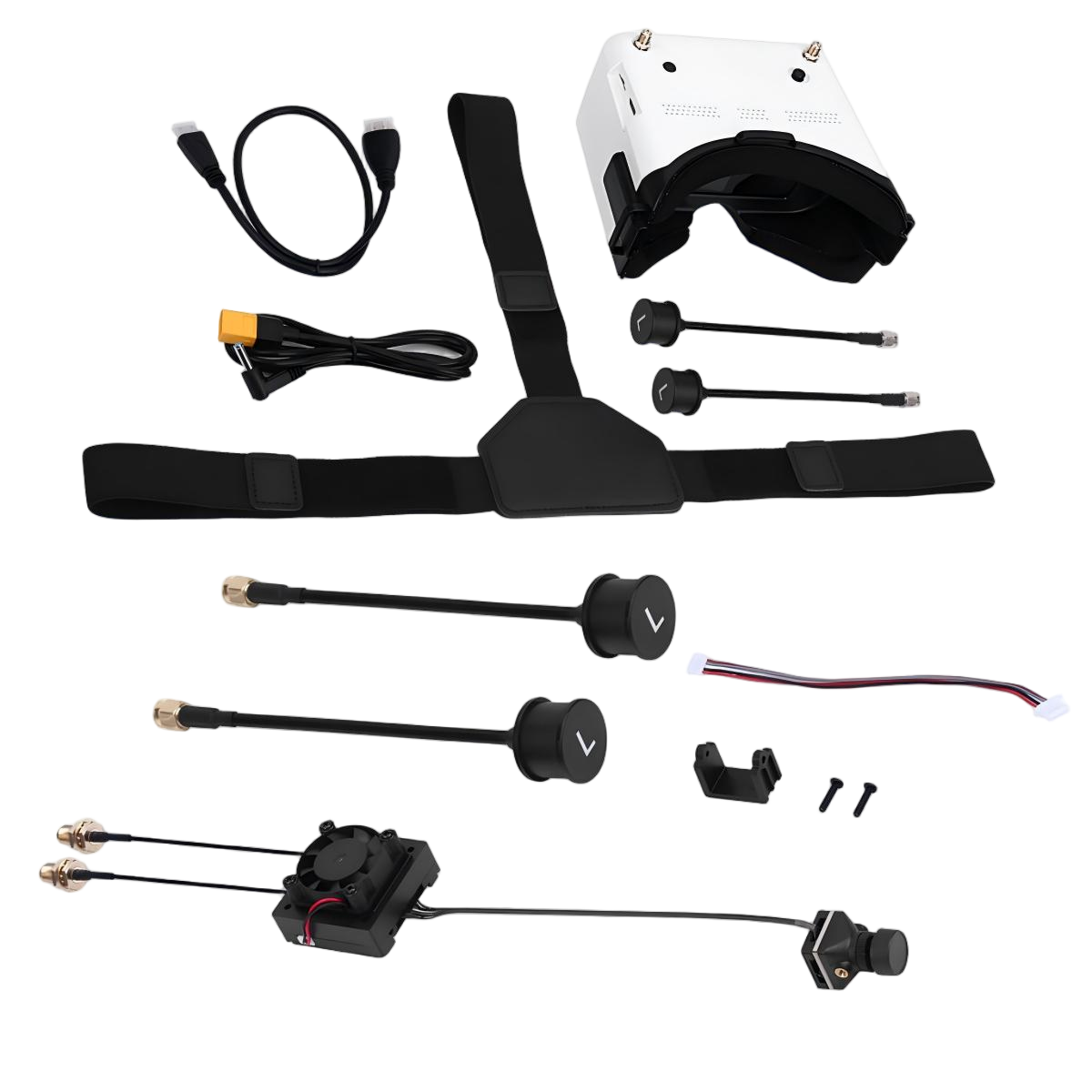

Package Includes

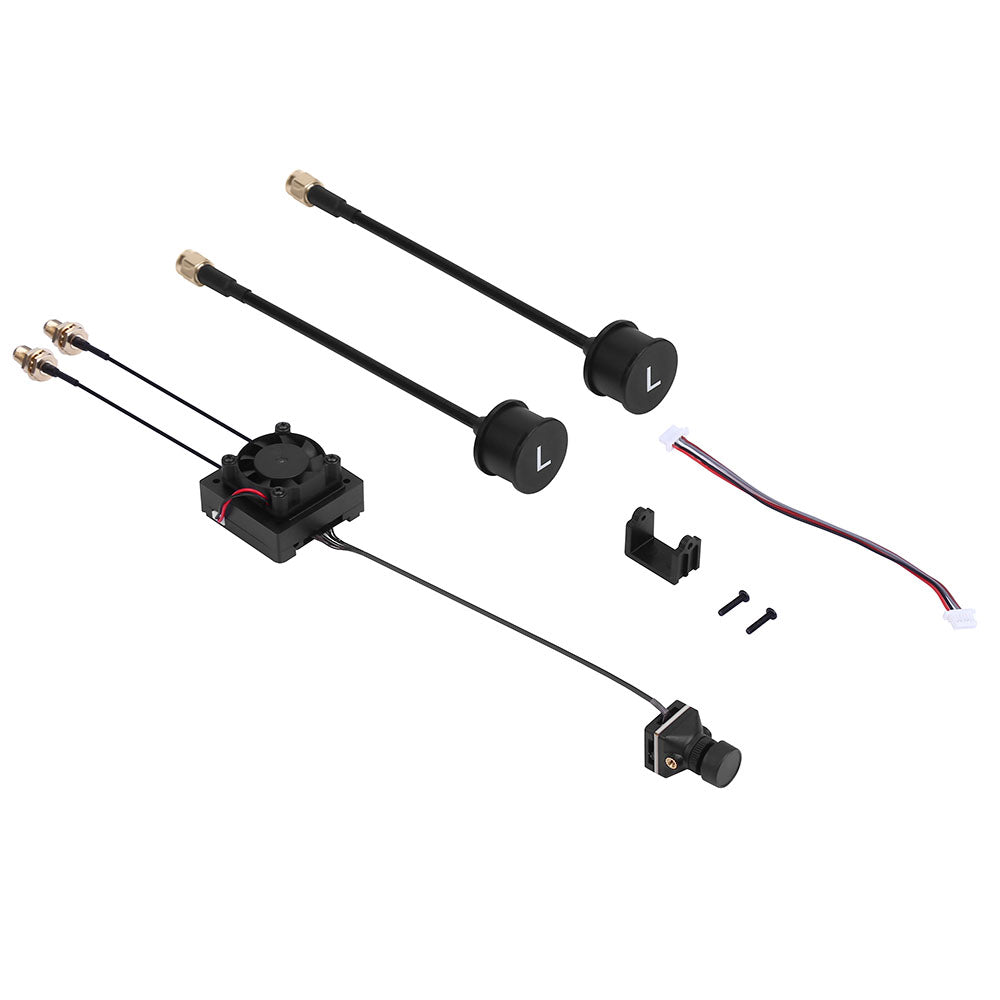

• Hawkeye HD air unit with camera

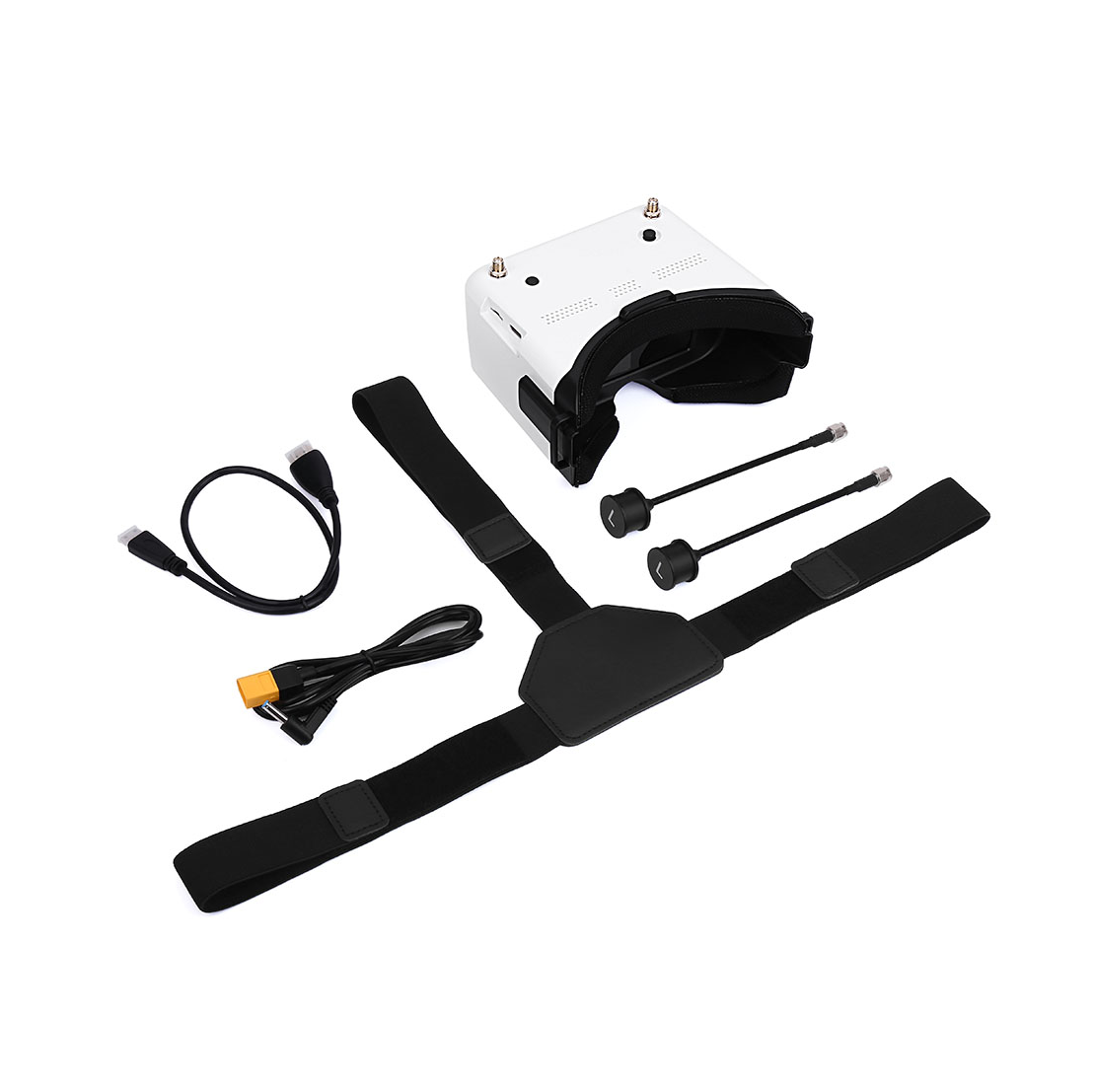

• Hawkeye HD FPV goggles

Important: Batteries and microSD card are not confirmed as included. Range is not guaranteed and depends on antennas, installation, interference, legal output limits and line of sight. Follow local radio regulations and confirm connector polarity before powering the system.
