The Hawkeye Captain H is a 10.2-inch high-brightness FPV field monitor with dual analog receivers, an integrated DVR and HDMI input. Its broad channel coverage and automatic or manual scanning make it a flexible display for compatible FPV ground stations.
Key Features
10.2-inch LED display with 1024 × 600 resolution
Rated brightness: 1000 lux

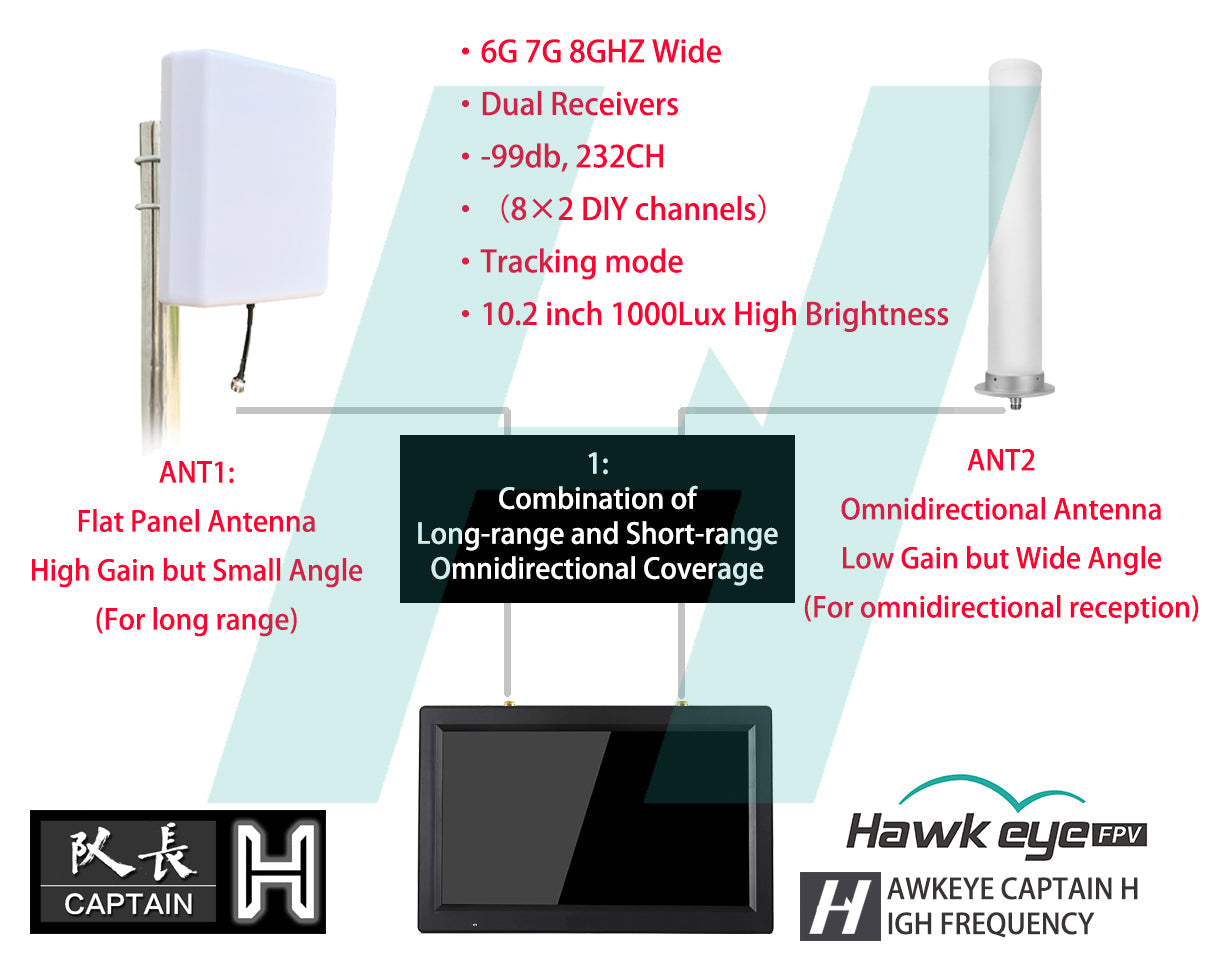

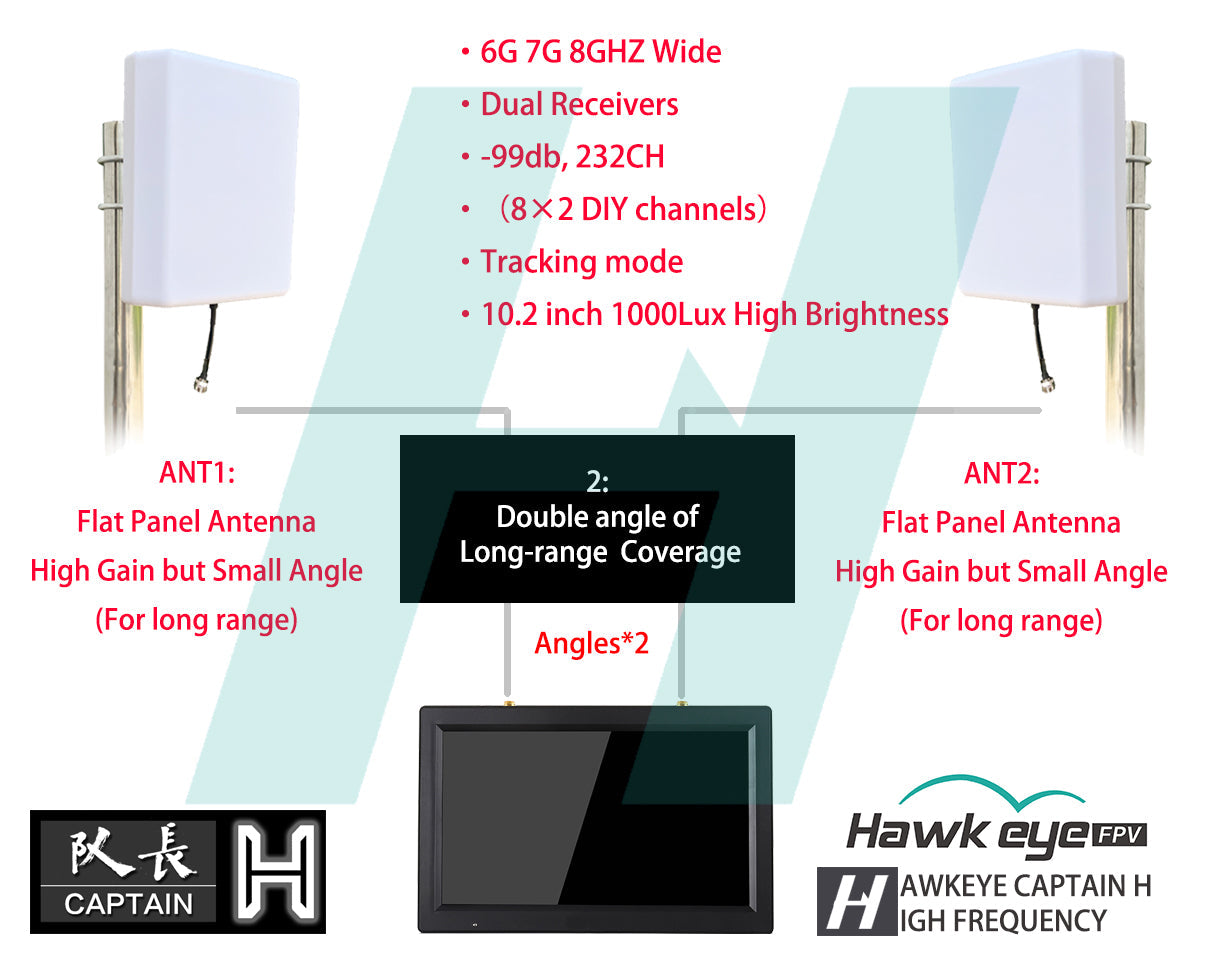

Dual analog receivers with 232-channel support
Integrated DVR recording
HDMI and analog AV inputs
Analog AV output
Automatic and manual channel scanning
PAL and NTSC support
Specifications
Aspect ratio: 16:9
Response time: 10 ms
Supported receiver bands: 5.8, 6, 7 and 8 GHz
Receiver sensitivity: -99 dB as specified by the supplier
Antenna connection: SMA
DVR resolution options: D1, VGA and QVGA
Storage: TF/microSD card up to 64 GB
Power input: 3S–6S battery
Current draw: approximately 1.3 A at 3S or 600 mA at 6S
5 V output: up to 1 A when input exceeds 12 V
Monitor dimensions: 265 × 170 × 31 mm
Weight: approximately 1.13 kg

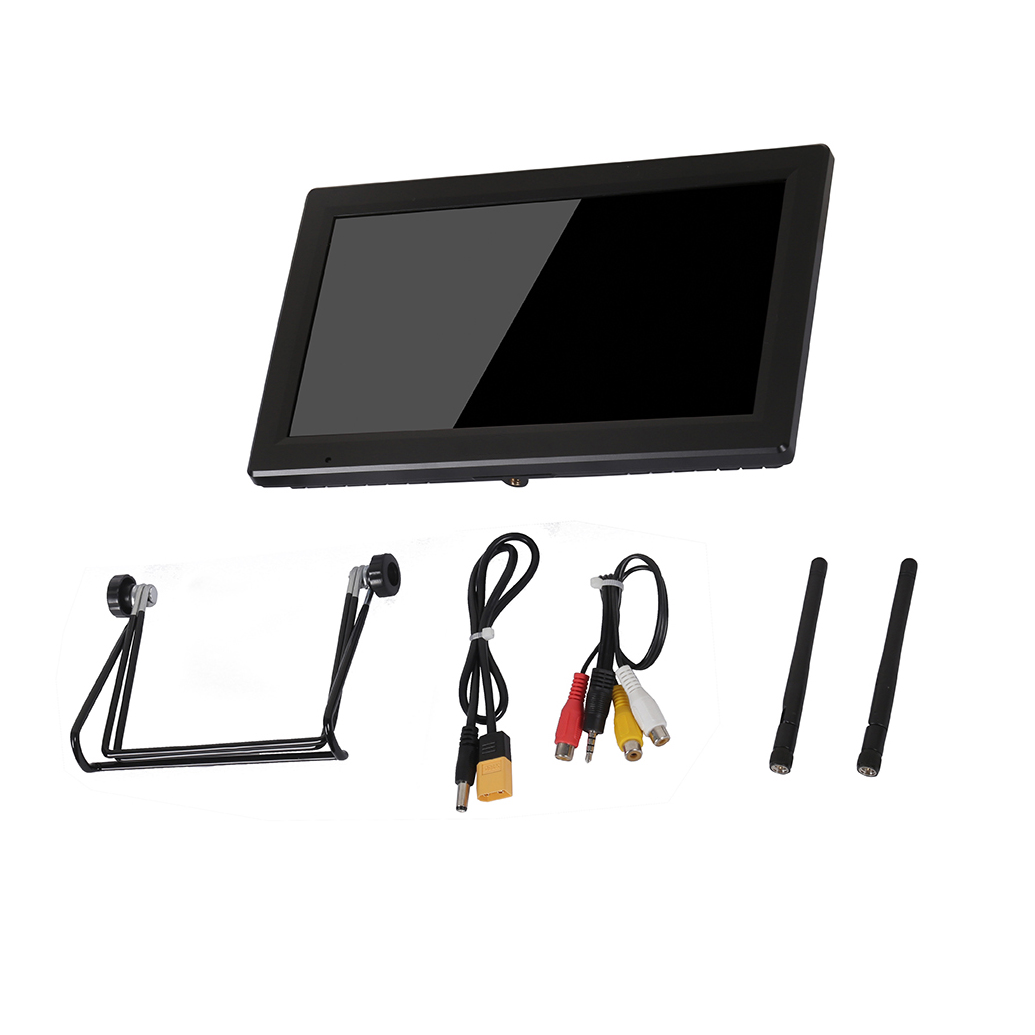

Package Includes
Hawkeye Captain H 10.2-inch FPV monitor
Compatibility note: Confirm frequency, antenna, connector and power compatibility before use. Memory card, power battery and accessories not explicitly listed are not guaranteed to be included. Frequency availability and permitted operation vary by region.
