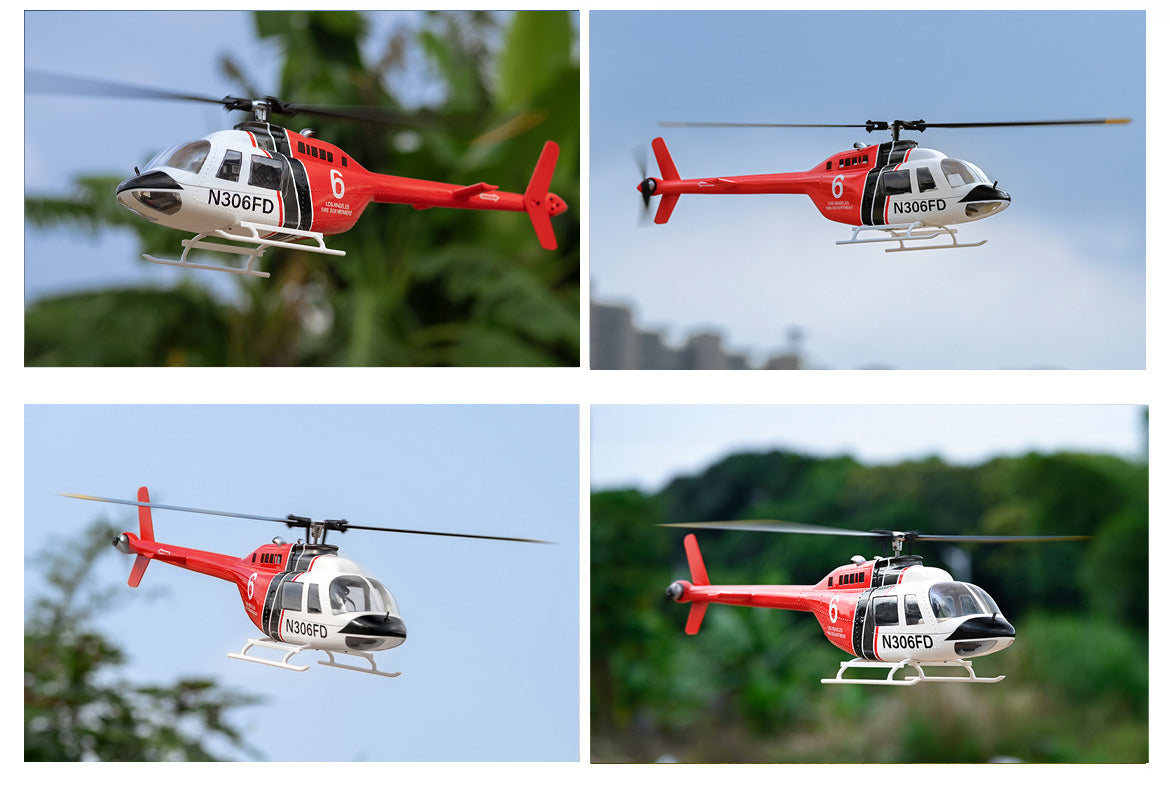

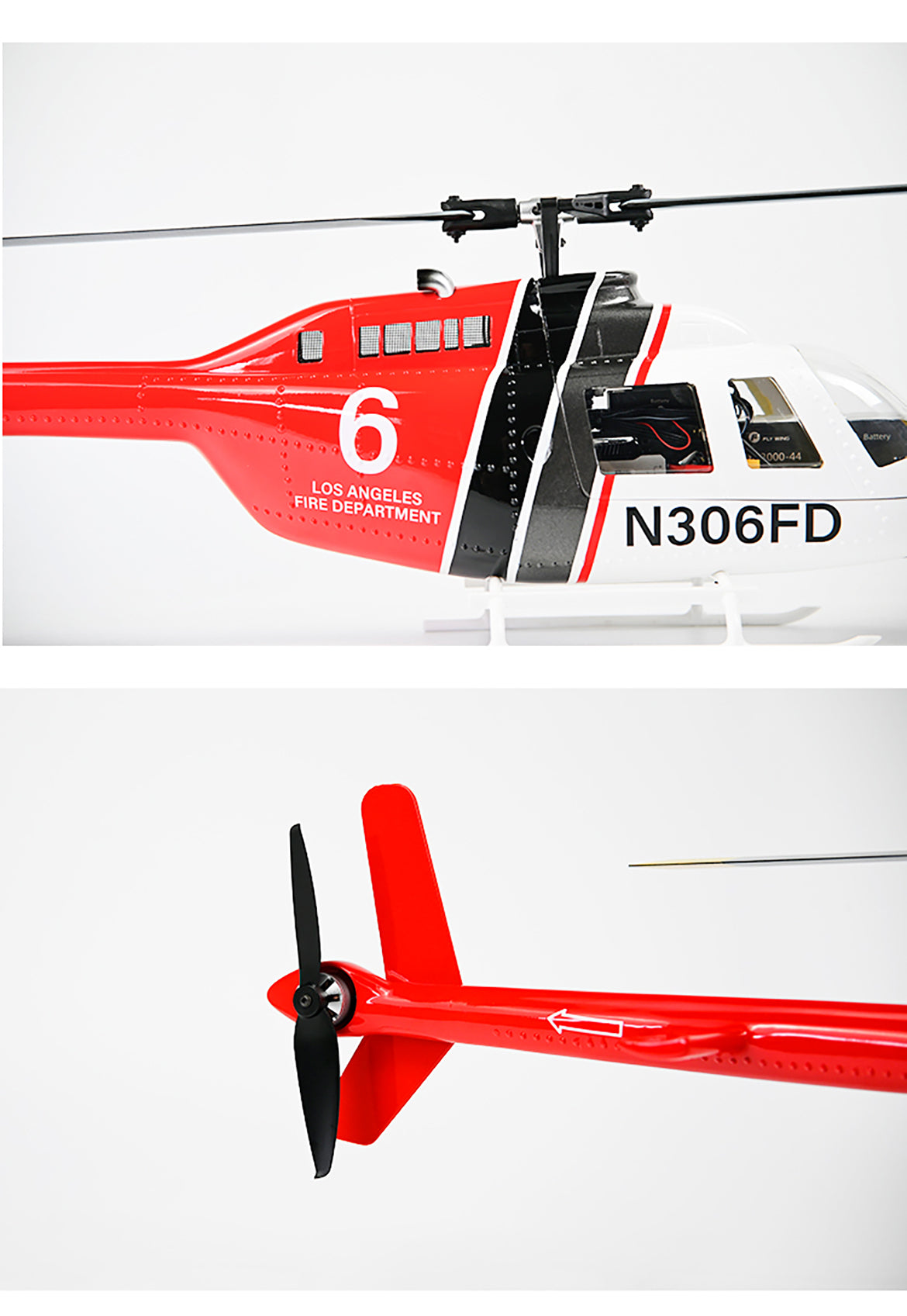

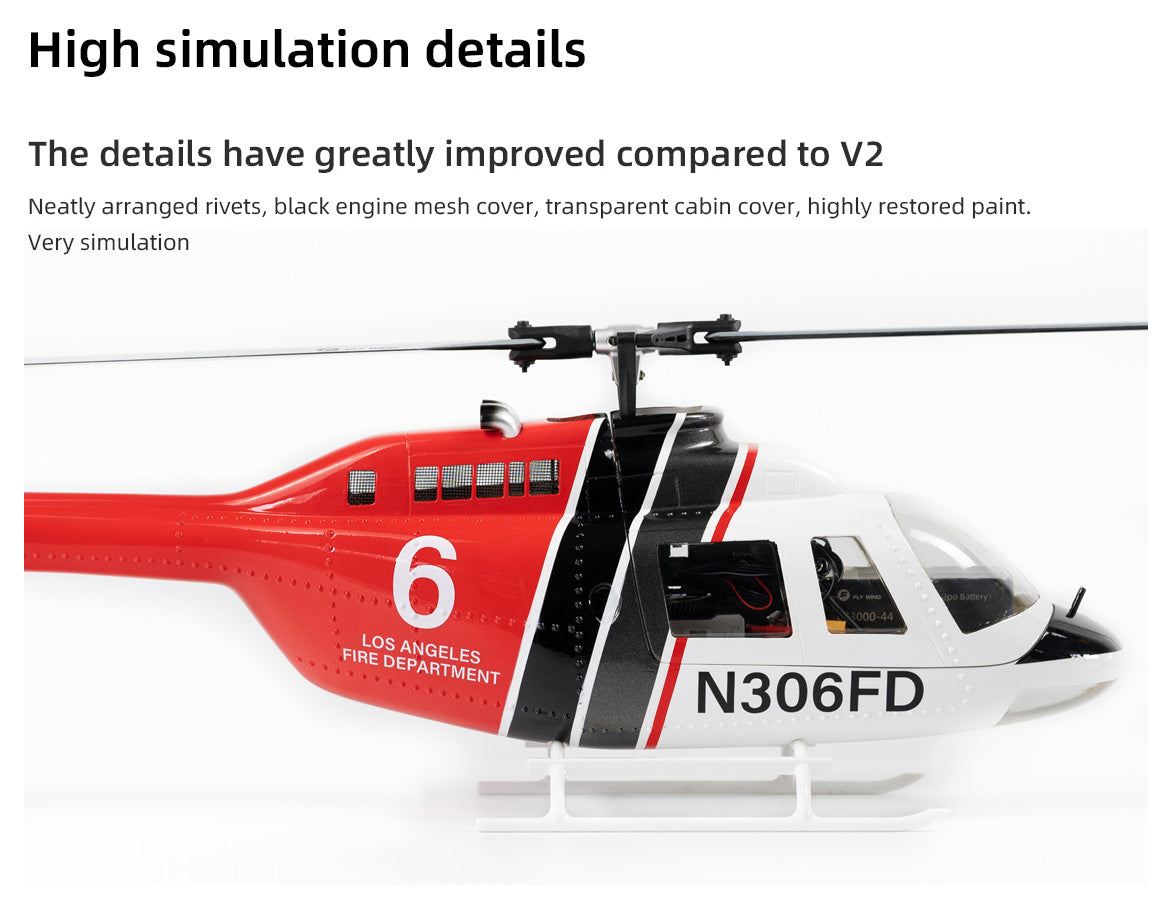

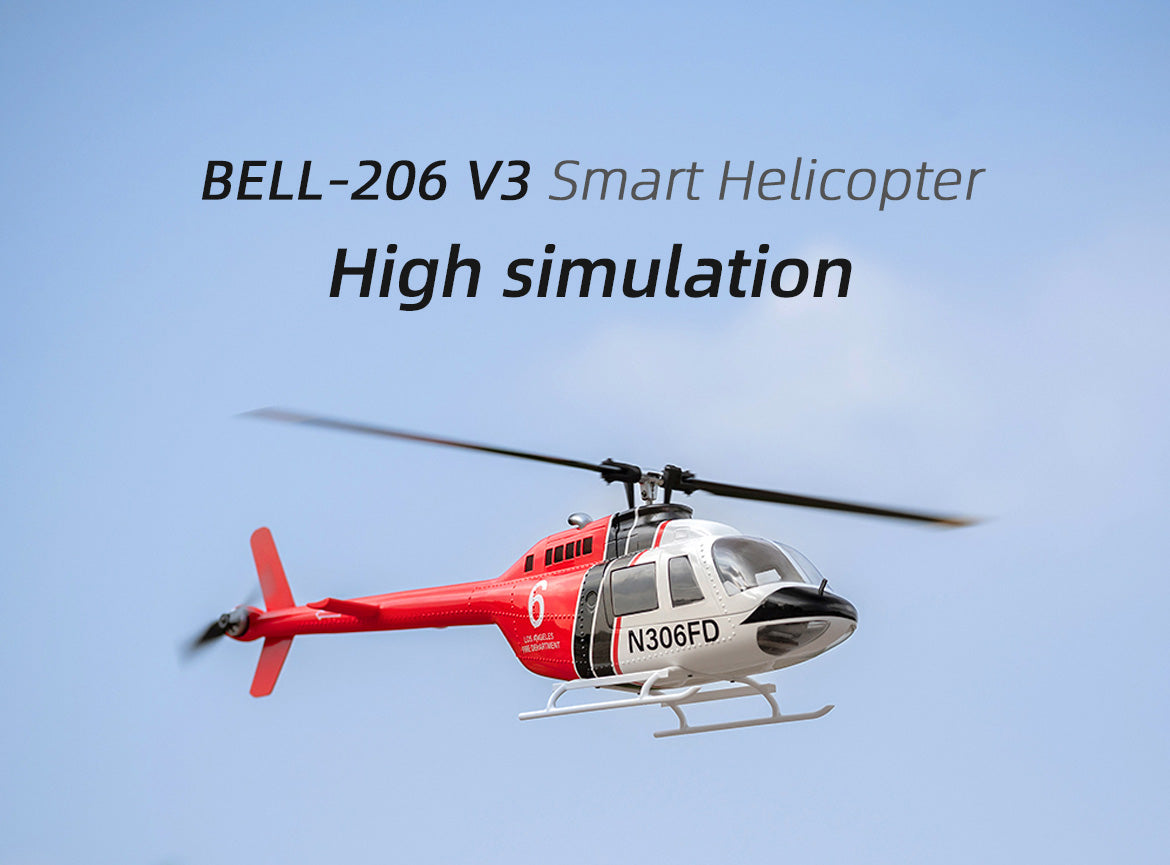

Large-scale GPS-assisted helicopter with detailed Bell 206 styling

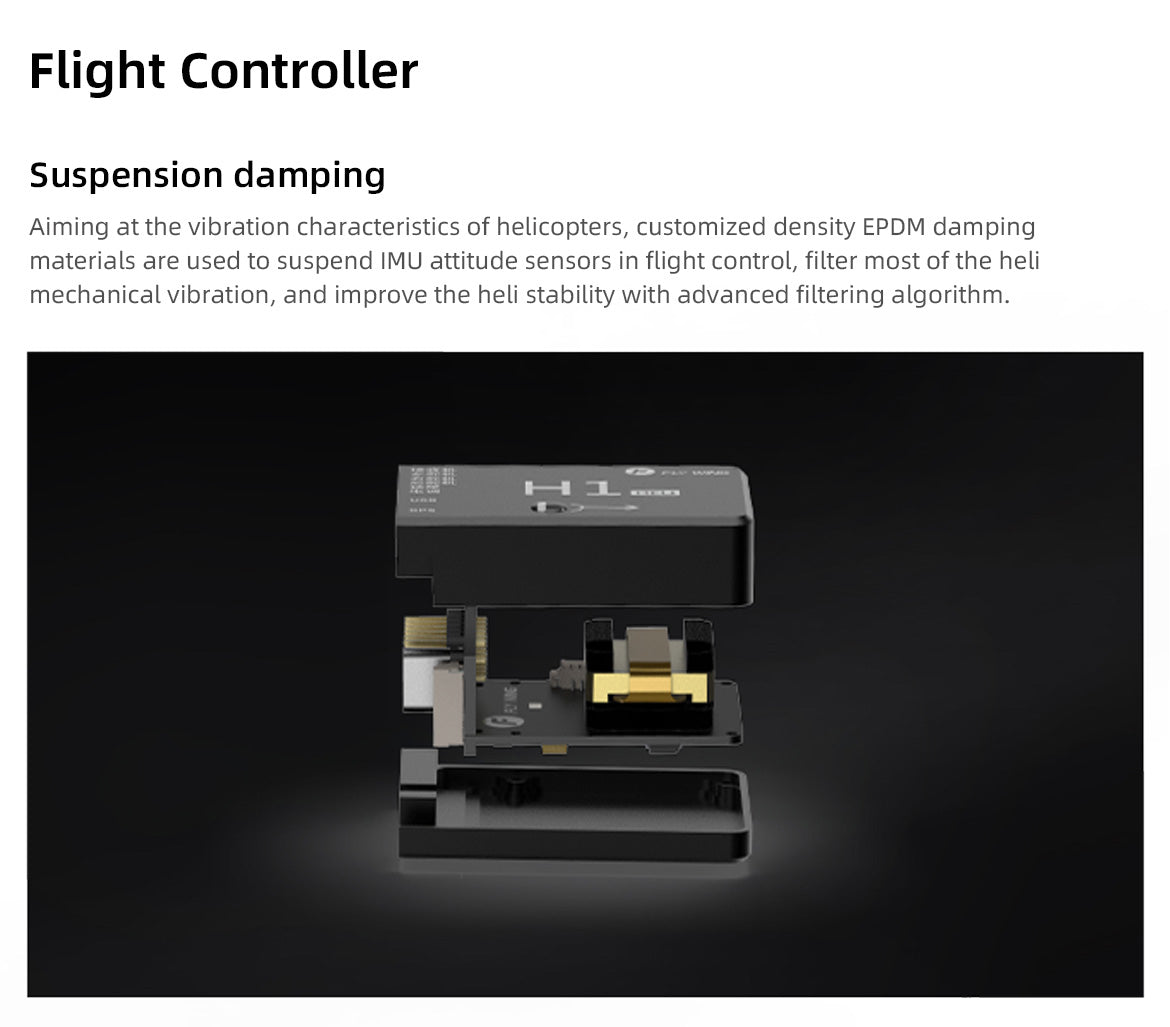

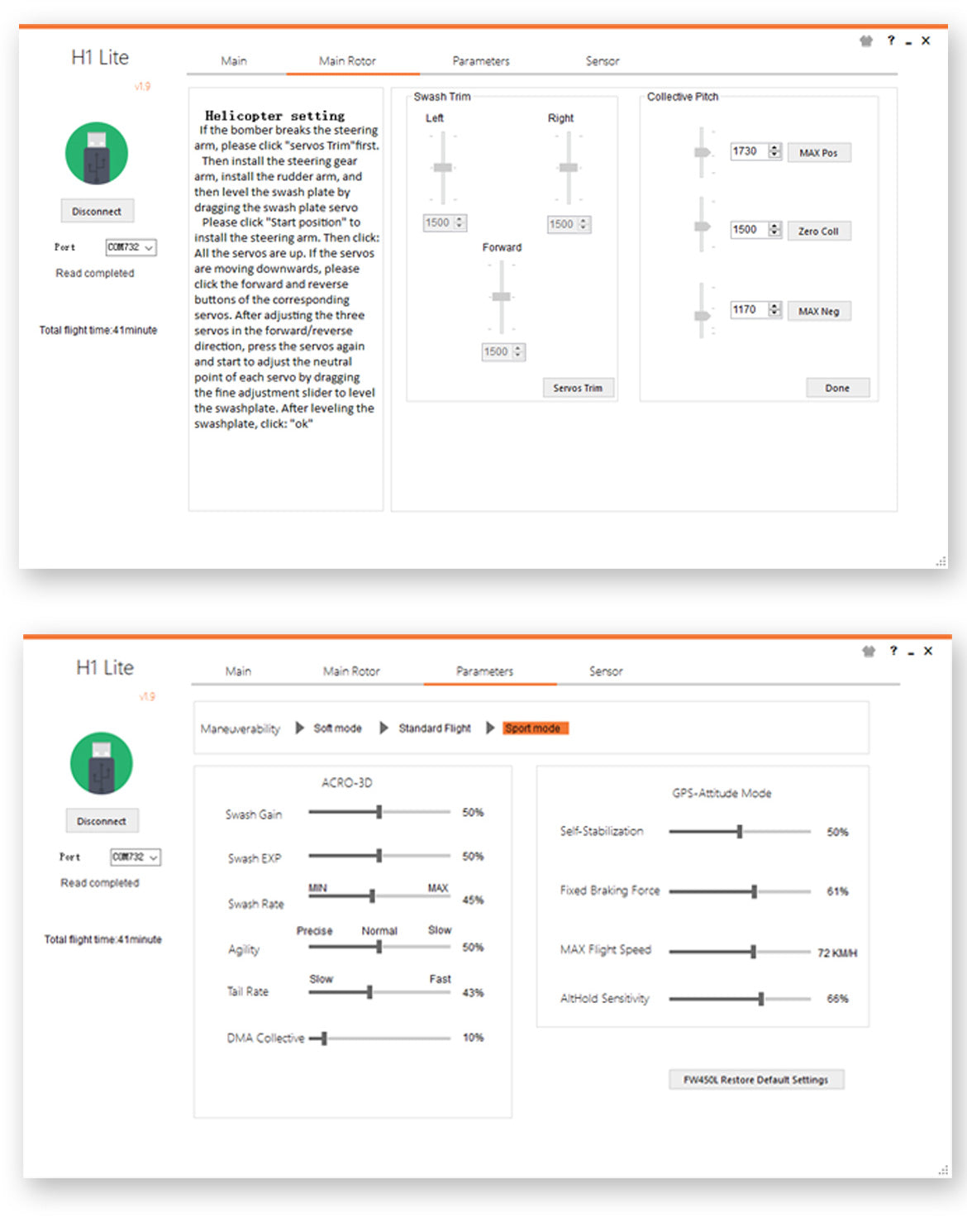

The Flywing Bell 206 V3 is a 470-class, ready-to-fly scale helicopter built around the H1 flight-control system. Its multi-satellite positioning support, assisted flight modes and return functions are designed to make a large collective-pitch model more manageable while preserving access to advanced manual flying.

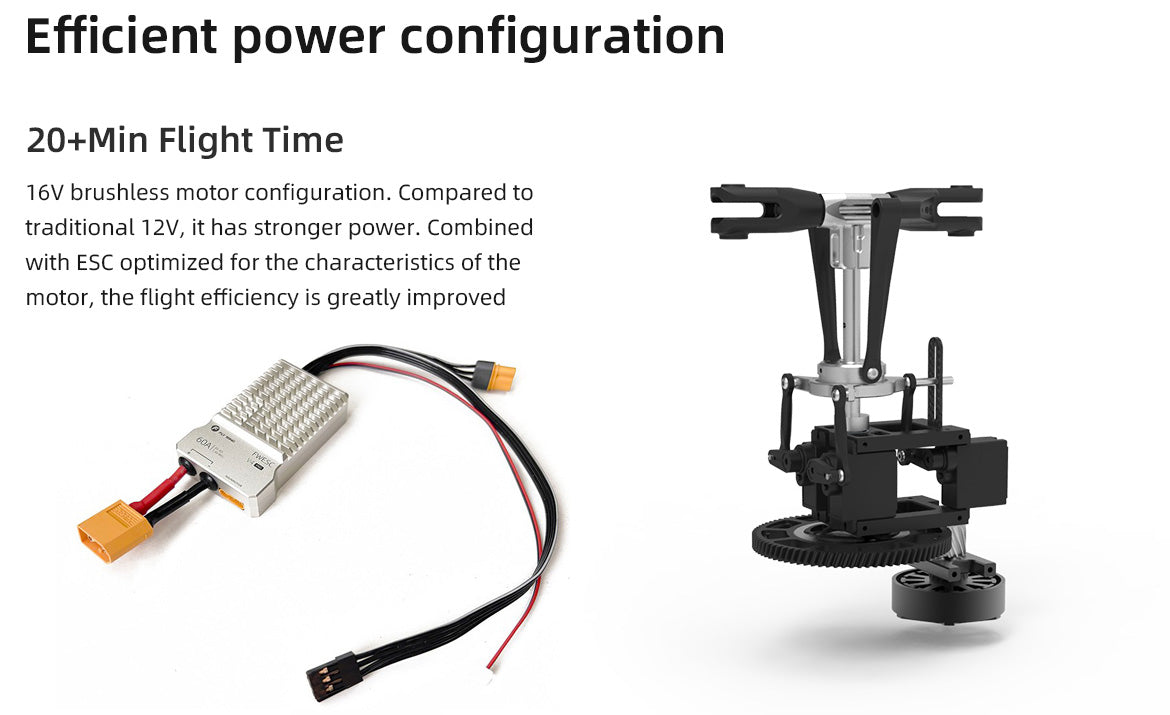

A 3508 brushless main motor and 60A ESC power the 810mm main rotor. Choose a package with one, two or three flight batteries; every listed option is the RTF configuration.

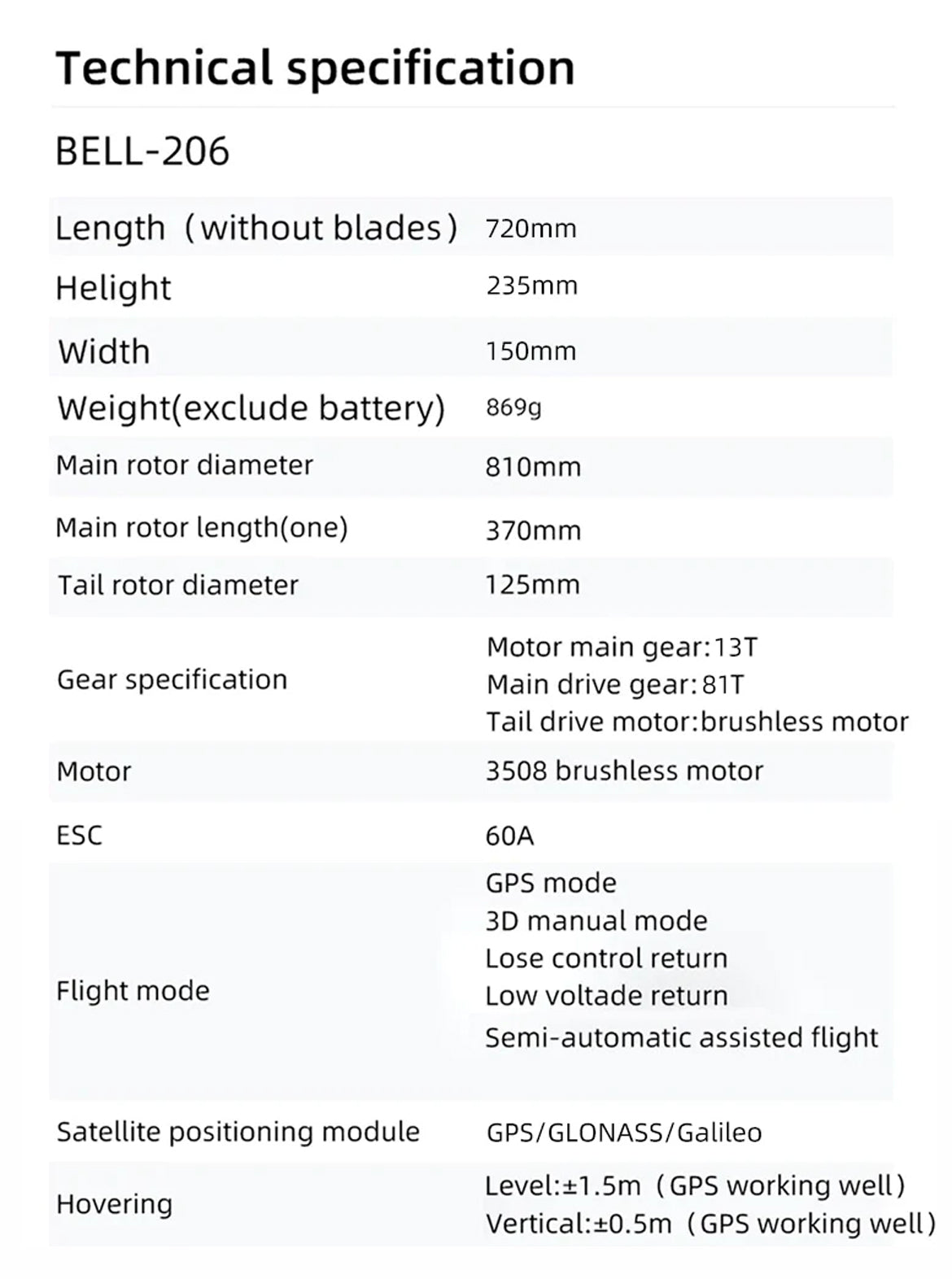

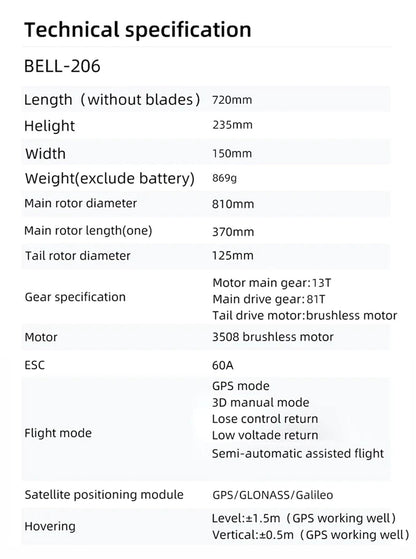

Specifications
Configuration: RTF (Ready to Fly)
Class: approximately 470 size
Length without rotor blades: approximately 720mm
Width: approximately 150mm
Height: approximately 235mm
Weight without battery: approximately 869g
Main rotor diameter: approximately 810mm
Tail rotor diameter: approximately 125mm
Main motor: 3508 brushless
ESC: 60A
Positioning: GPS, GLONASS and Galileo support

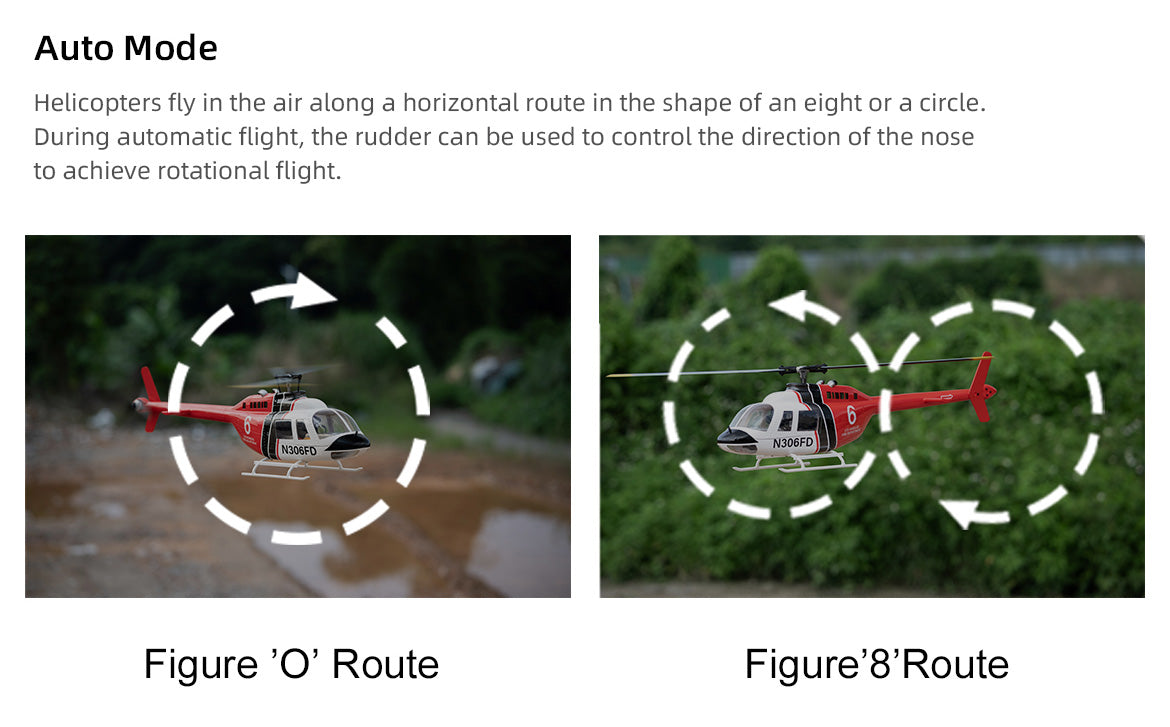

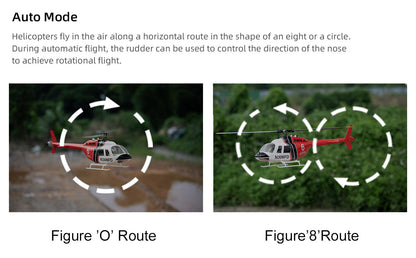

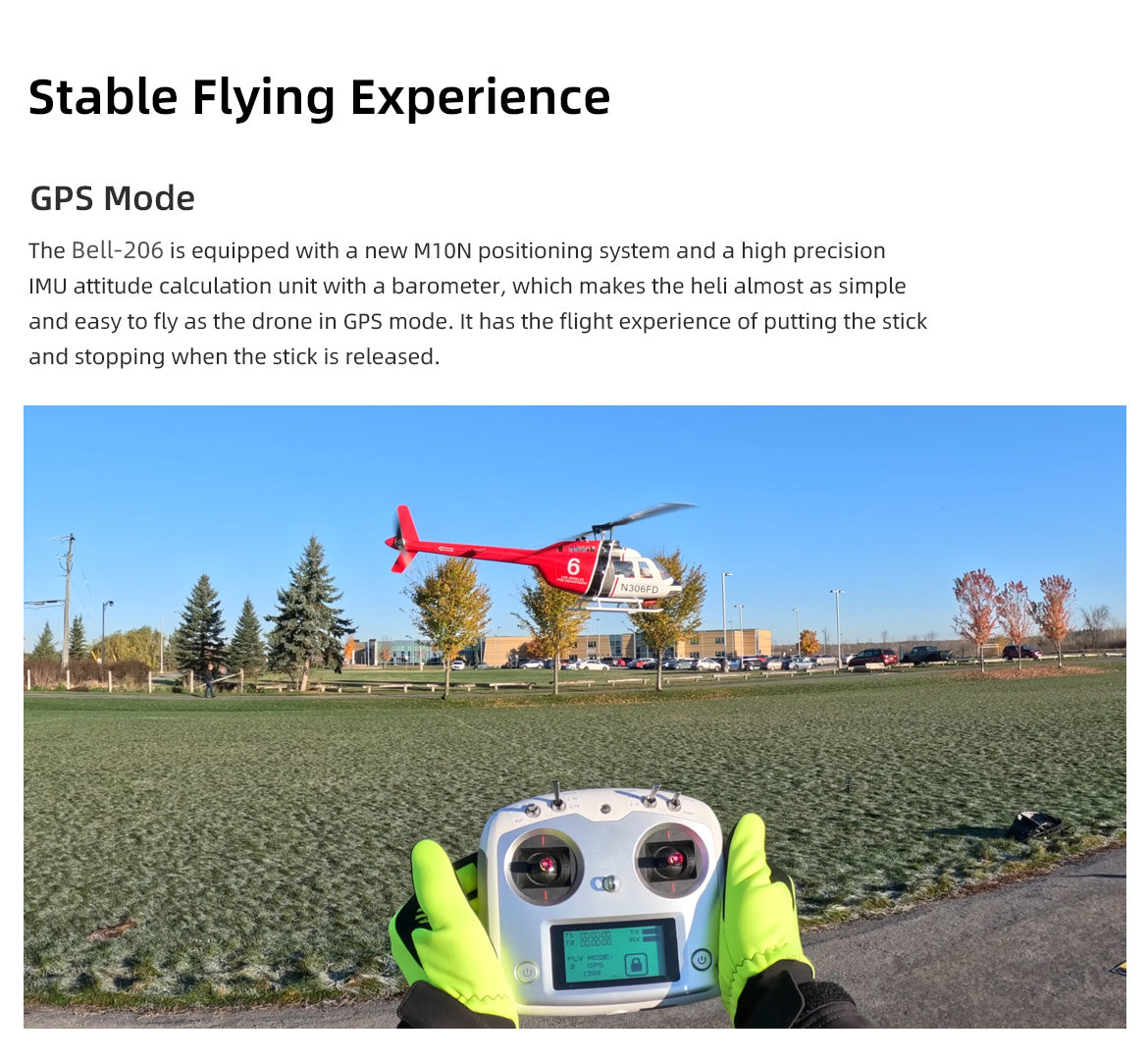

Flight modes: GPS-assisted, semi-automatic assisted and 3D manual modes
Safety functions: one-key return and low-voltage return
Supplier-rated flight time: more than 20 minutes under suitable conditions; actual time varies with battery condition, flight style, weather and payload
External receiver support: SBUS-compatible equipment may be supported; verify setup before flight

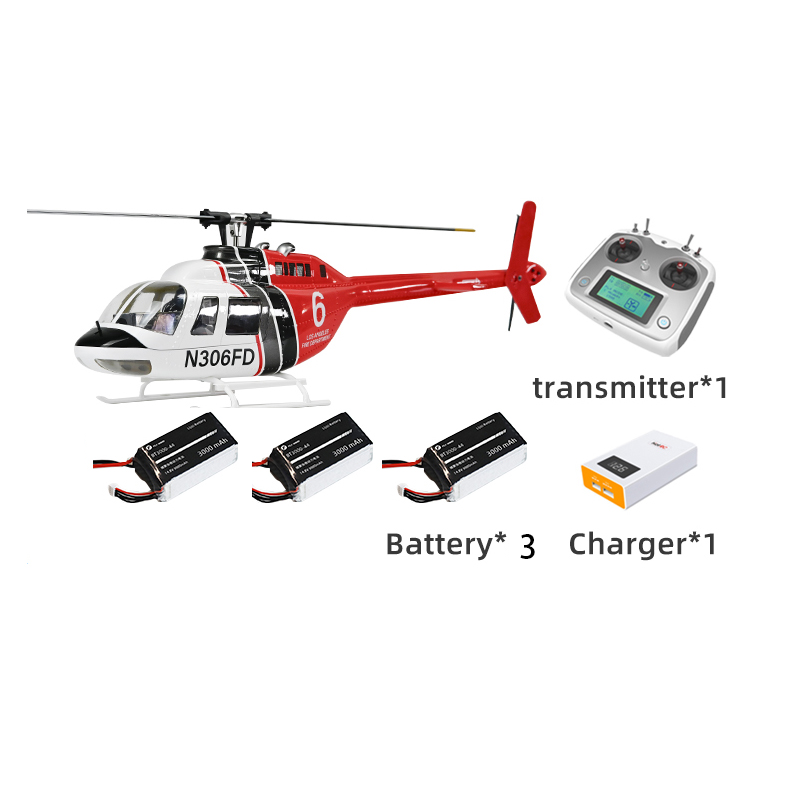

Package contents

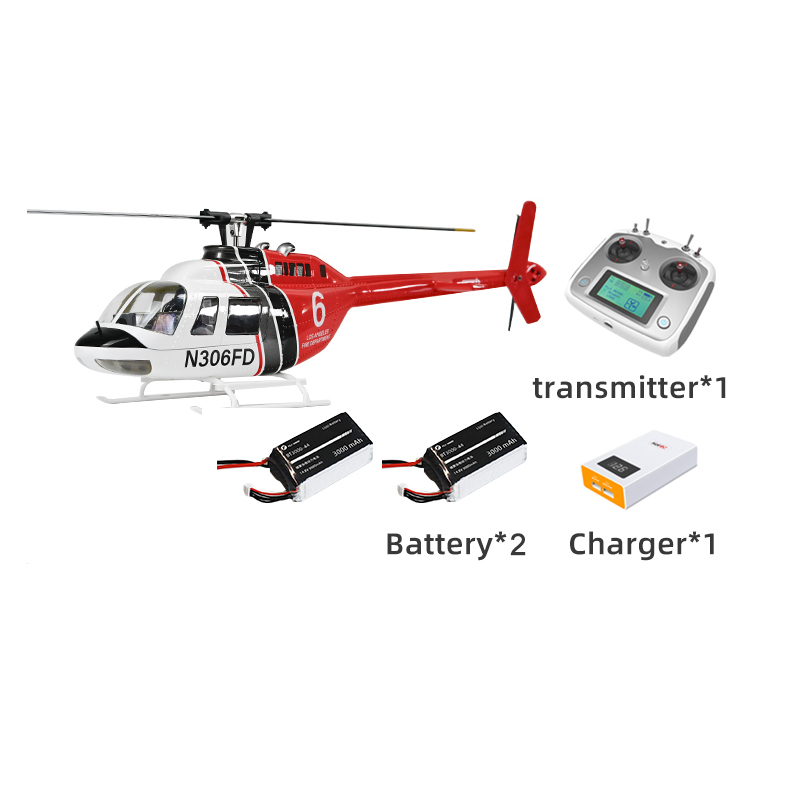

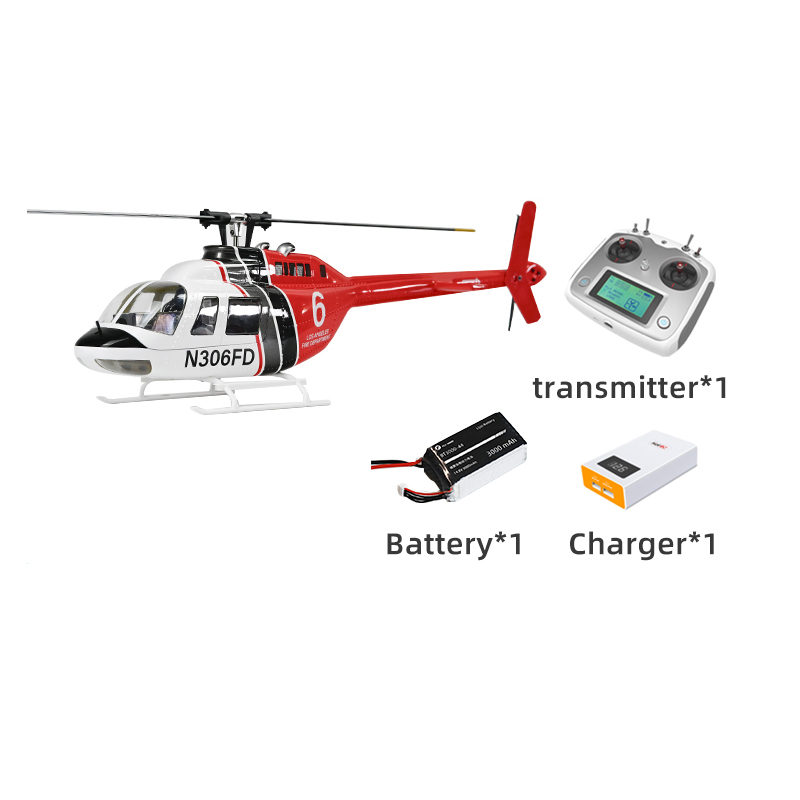

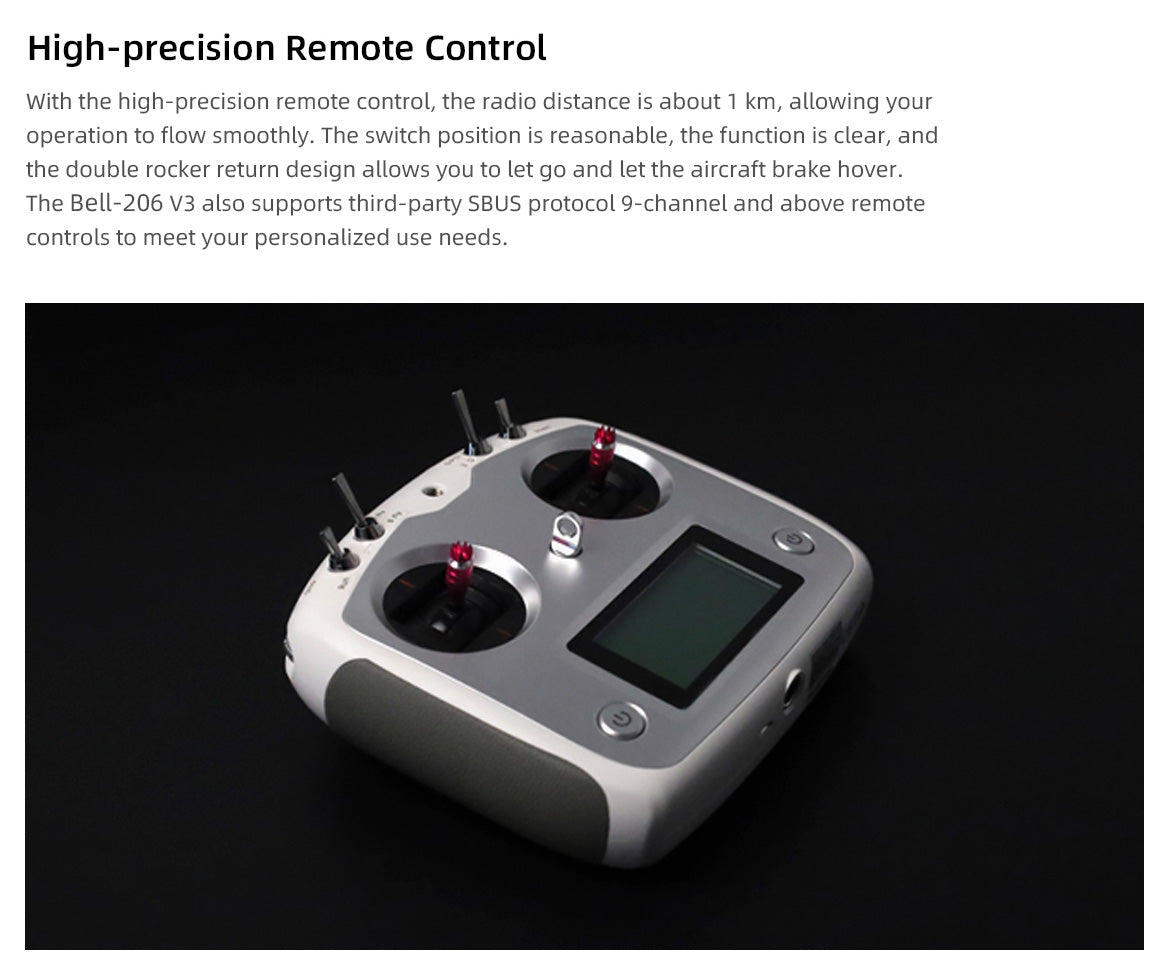

The selected RTF package includes the assembled helicopter, compatible transmitter, charger and the number of flight batteries stated in the variant name, together with the manufacturer-supplied standard accessories and documentation.
Important operating notes
This is a large, powerful collective-pitch aircraft intended for experienced pilots. Complete all calibration, rotor, linkage, fastener, failsafe and control-direction checks before every flight. Satellite positioning and return functions require a reliable outdoor satellite lock and do not provide obstacle avoidance. Maintain a wide safety perimeter, comply with local radio and aviation rules, and never fly near people, roads, buildings or power lines. Bell 206 identifies the scale body style; licensing is not implied unless separately documented by the manufacturer.
