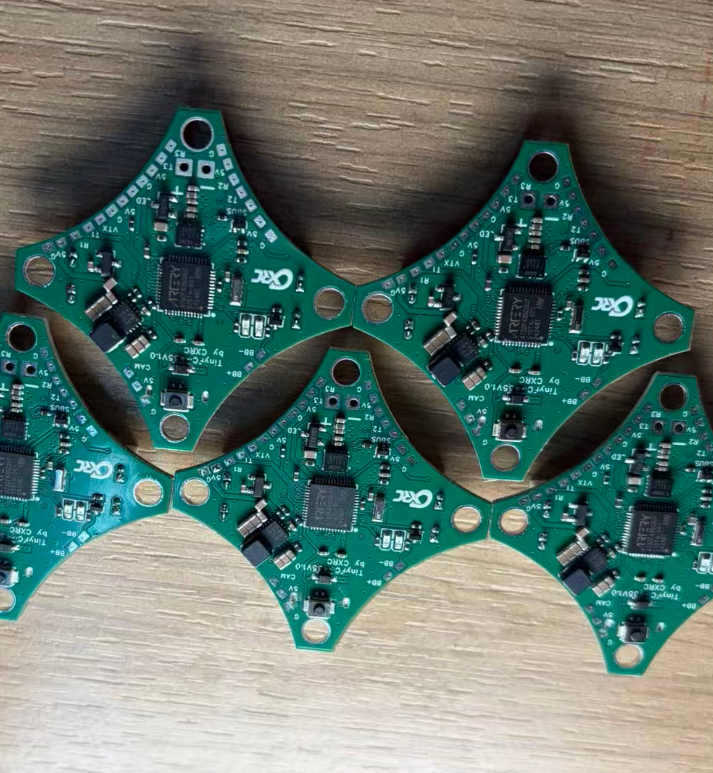

CXRC Pilot Mini F435 1–2S Brushed Whoop Flight Controller
CXRC Pilot Mini F435 1–2S Brushed Whoop Flight Controller
Regular price
$39.99 USD
Regular price
Sale price
$39.99 USD
Unit price
/
per
Shipping calculated at checkout.
The CXRC Pilot Mini is a lightweight 1–2S flight controller for brushed micro FPV builds. It combines an AT32F435 processor, ICM42688P gyro, analog OSD and four brushed-motor outputs on a compact 25 × 25mm mounting pattern.
Specifications
| MCU | AT32F435CGU7 |
|---|---|
| Gyro | ICM42688P |
| Firmware target | BF-NEUTRONRCF435 |
| Input | 1–2S |
| Motor outputs | 4 brushed MOSFET outputs; supplier-rated 40A MOS hardware |
| Motor connectors | SH1.25-2P |
| Typical motors | 615, 716, 820 or 8520 brushed motors |
| BEC | 5V / 2A |
| OSD | AT7456E analog OSD |
| UARTs | 3 |
| Mounting | 25 × 25mm, M2 |
| Weight | Approximately 4g |
Package Includes
- 1 × Pilot Mini F435 flight controller
No receiver, VTX or blackbox memory is built in. External serial receivers such as ELRS, SBUS and compatible TBS systems require correct wiring and configuration. This board is not for brushless motors.
