Afagobot 4-Channel Digital RC Servo & ESC Tester
Afagobot 4-Channel Digital RC Servo & ESC Tester
The Afagobot 4-Channel Digital Servo Tester is a compact bench tool for checking RC servos, electronic speed controllers and PPM signals before installation. It can drive up to four servos together, making it useful for comparing centering, travel direction and movement consistency.
Servo and ESC Setup Tool
Choose manual, neutral or automatic sweep operation to inspect servo response. Selectable 50Hz, 125Hz and 250Hz output settings support common analog and digital servo types, while the display provides signal information during PPM testing.
Key Features
- Tests up to four servos simultaneously
- Manual, neutral and automatic test modes
- Supports analog and digital servos
- Selectable 50Hz, 125Hz and 250Hz signal rates
- 800–2200μs output pulse-width range
- PPM signal testing with digital display
- Suitable for servo comparison and basic ESC response checks
Specifications
| Brand | Afagobot |
|---|---|
| Channels | 4 |
| Input Voltage | 4.8–6V DC |
| Signal Rates | 50Hz / 125Hz / 250Hz |
| Output Pulse Width | 800–2200μs |
| Stated Signal Accuracy | 2μs |
| Compatible Devices | Analog servos, digital servos and compatible ESC signal inputs |
| Test Modes | Manual / Neutral / Automatic |
Package Includes
- 1 × Afagobot 4-channel digital servo tester

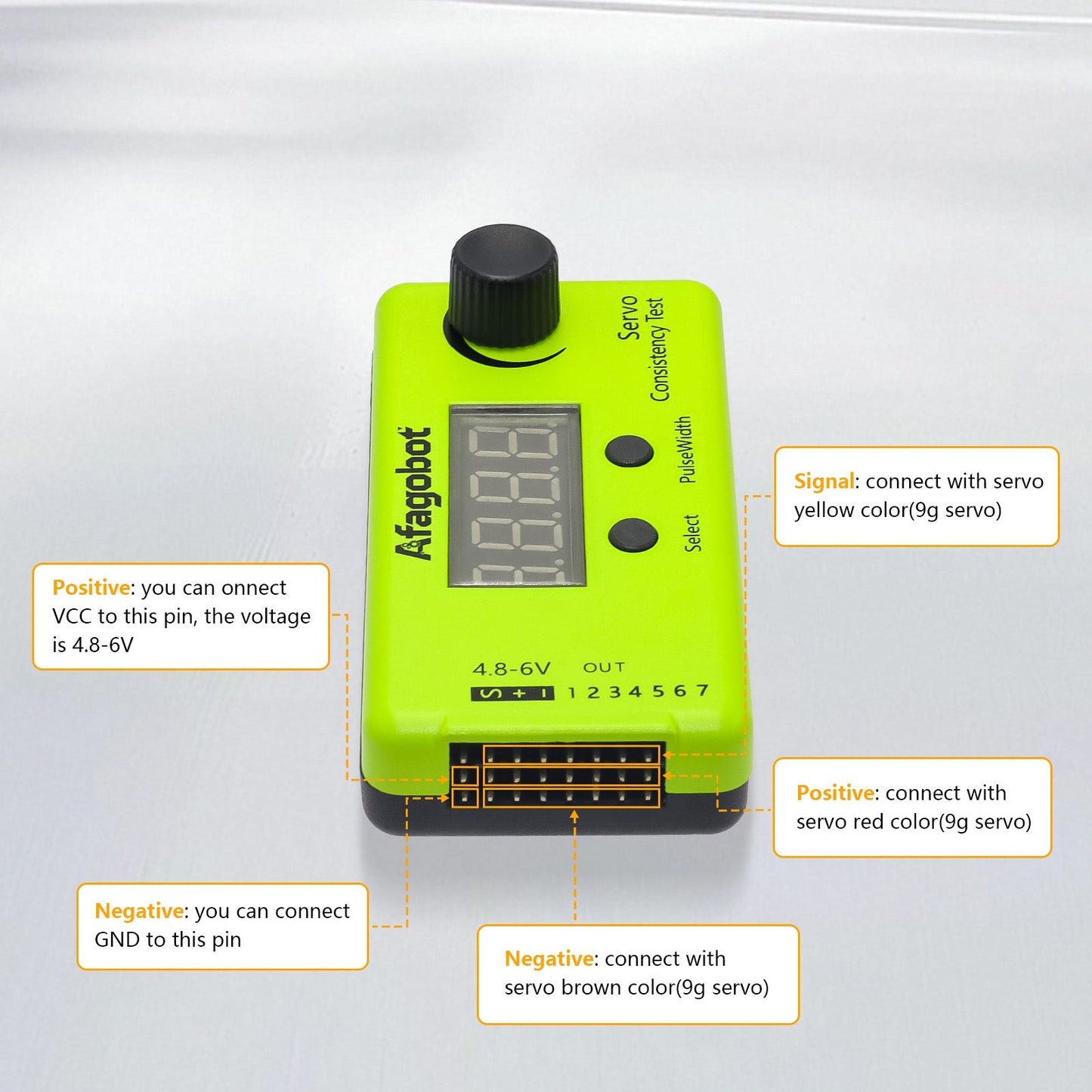

Setup note: A suitable regulated 4.8–6V power source and connection leads are not listed as included. Confirm connector polarity before applying power. When checking an ESC, disconnect the motor or secure the drivetrain and remove propellers for safety.
