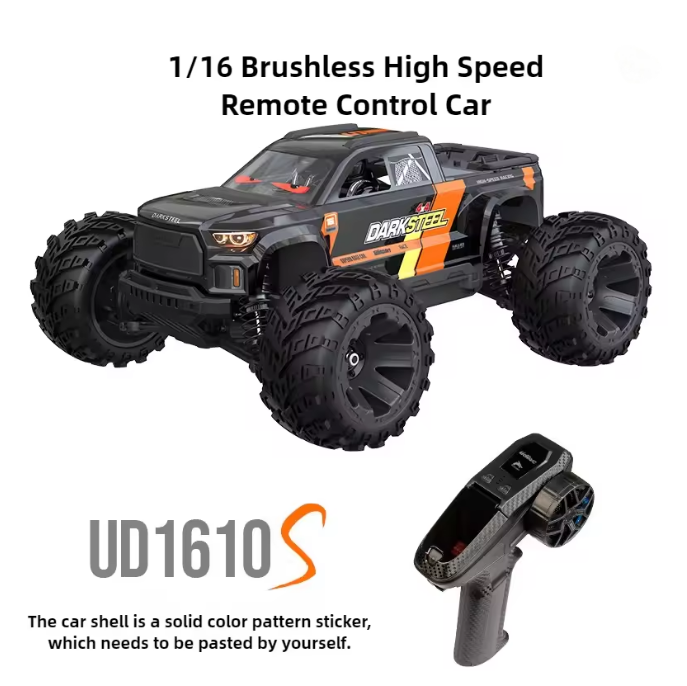

UDIRC UD1610S Guide: 1/16 Brushless 4WD RC Monster Truck
The UDIRC UD1610S 1/16 brushless 4WD RC monster truck is a compact high-speed platform for drivers who want to select their own battery and charger. It combines a 2845 4700KV brushless motor, 60A ESC, gyro-assisted DumboRC radio, oil-filled shocks and a maintenance-friendly chassis in a truck that can run on either 2S or 3S LiPo power.
The key purchasing detail is just as important as the performance specification: this package includes the truck and transmitter, but it does not include a drive battery or charger. That makes it best suited to buyers who already own suitable LiPo equipment or are comfortable choosing a compatible setup.
2845 Brushless Power in a 1/16 Chassis
The UD1610S uses a 2845-size 4700KV brushless motor with an aluminum heat sink. A 60A brushless ESC manages power delivery and includes electronic protection functions. This combination gives the truck a strong power-to-size ratio while leaving room for the owner to choose between a more manageable 2S configuration and a faster 3S setup.
Published figures list approximately 55km/h on 2S and up to 80km/h on 3S under favorable conditions. These are supplier-rated speeds rather than guaranteed results. Battery condition, capacity, discharge rating, surface, tire grip, temperature and available running distance all affect real-world performance.
Choosing Between 2S and 3S
A compatible 2S LiPo is the sensible starting point for learning the truck, checking steering trim and confirming that all hardware remains secure. It reduces speed, heat and drivetrain load compared with 3S while still providing brisk performance for a compact model.
Moving to 3S raises the performance ceiling, but it also increases motor temperature, ESC load, tire stress and the force transmitted through the drivetrain. Drivers should use a correctly sized battery with an XT60 connector, confirm that it fits securely, and monitor temperatures during short initial runs. Allow the electronics to cool when necessary.
A balance-compatible LiPo charger is required for either voltage. Never charge a LiPo unattended, and use the correct cell-count and current settings for the chosen battery.
4WD Drivetrain and Gyro-Assisted Radio
Four-wheel drive gives the UD1610S useful traction across packed dirt, short grass and other open off-road surfaces. Metal universal dogbones handle power transfer at the wheels, while the DumboRC X5E 2.4GHz transmitter provides proportional control and gyro assistance.
The gyro can help correct unwanted yaw when the truck accelerates or crosses uneven ground, but it should be adjusted conservatively. Too much assistance can make the steering feel unnatural. Start with a low setting, confirm the correction direction and increase it only if the truck needs more help holding a line.
Oil-Filled Suspension and Chassis Construction
Oil-filled shocks help control repeated bumps more consistently than simple friction dampers. The chassis uses reinforced nylon-composite material, while the polycarbonate body keeps weight above the chassis relatively low. This is a useful combination for a small truck that may experience frequent direction changes and imperfect landings.
Suspension setup cannot compensate for an unsuitable driving area. The UD1610S needs enough clear space for braking and turning, especially on 3S. Avoid public roads, crowded paths, deep water and loose areas where stones can be thrown toward people or property. No waterproof rating is claimed for the electronics.
Quick-Release Design for Routine Maintenance
The quick-release body system provides fast access to the battery compartment and electronics. UDIRC also uses service-friendly designs around the differential and driveshaft areas, which can reduce the number of steps needed for inspection and cleaning.
High-speed RC trucks still require regular checks. Before each run, inspect wheel nuts, driveshafts, suspension hardware, tire bonding and steering movement. After running on dirt, remove debris around the motor, center shaft and suspension pivots. Early maintenance is usually faster and less expensive than continuing to drive with a loose or damaged part.
What Is Included—and What You Must Add
The package includes one UDIRC UD1610S brushless monster truck and one DumboRC X5E 2.4GHz transmitter. To operate it, buyers must separately provide:
- A compatible 2S or 3S LiPo battery with XT60 connector
- A balance-compatible charger suitable for that battery
- Four AA batteries for the transmitter
This configuration is useful for experienced hobbyists who prefer to select battery capacity and charger quality themselves. It is less suitable for a buyer expecting a complete charge-and-drive box.
Who Is the UD1610S For?
The UD1610S fits drivers who want a compact brushless basher with battery flexibility, gyro-assisted control and accessible maintenance. A 2S setup suits owners learning the chassis or running in moderately sized areas. A carefully selected 3S system is better reserved for experienced drivers with enough space to manage the extra speed.
It is not the simplest first RC purchase because battery dimensions, connector, LiPo charging and safe voltage selection are the owner's responsibility. For someone already equipped for LiPo-powered models, that same no-battery configuration can be an advantage.
Final Take
The UDIRC UD1610S combines a 4700KV brushless system, 4WD traction, oil-filled shocks and quick chassis access in a compact 1/16 truck. Its 2S and 3S compatibility lets owners choose their preferred performance level, provided they supply appropriate power equipment and respect the added heat and load of 3S running. Check current price, stock and full package details on the official UDIRC UD1610S product page at All4RC.
