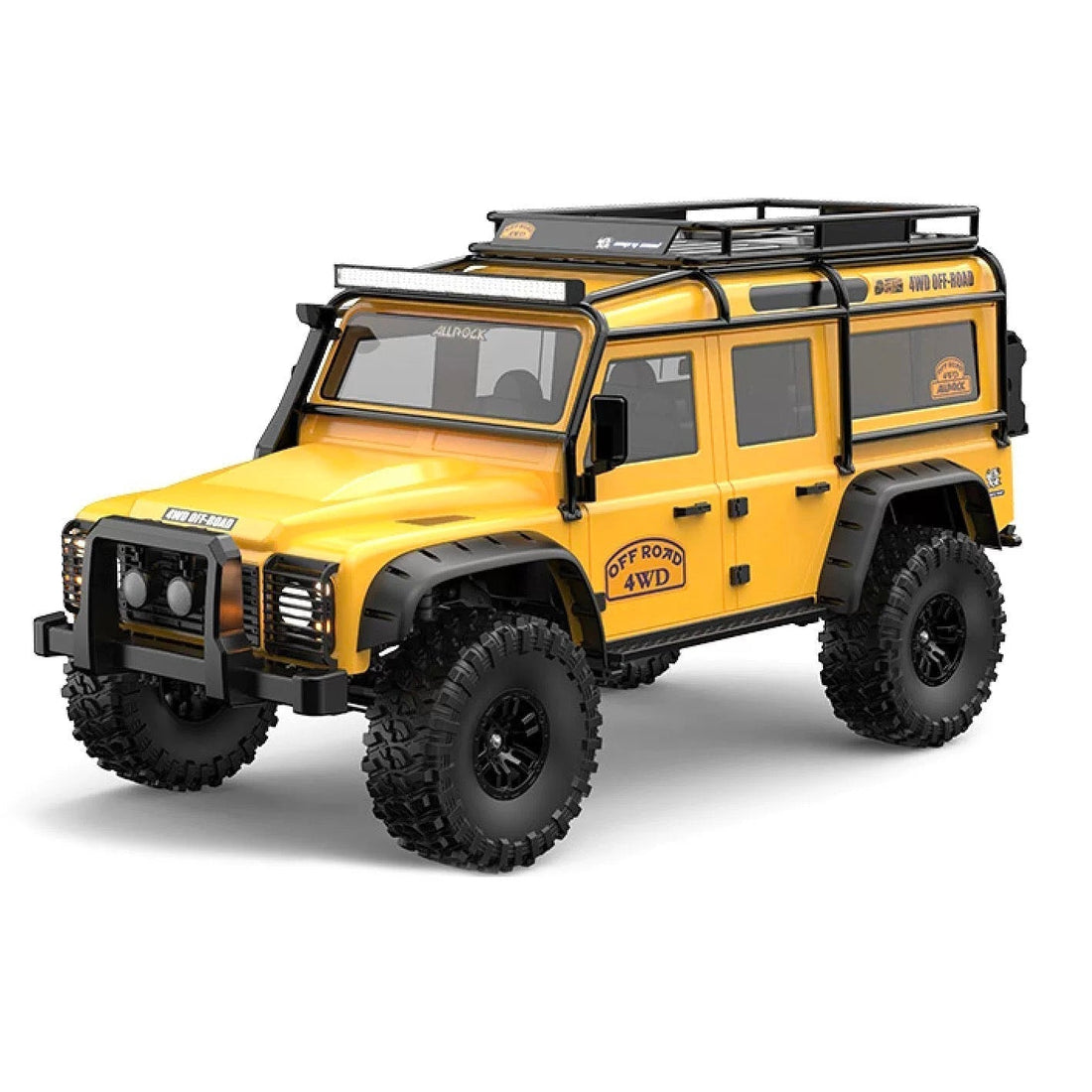

MJX H8H ALLROCK Guide: 1/8 Sensored Brushless RC Crawler

Large-scale trail trucks need more than a powerful motor. Precise low-speed control, usable gearing, axle clearance, steering torque, and a strong chassis all affect how confidently a crawler moves across rocks, roots, and uneven ground. The MJX H8H ALLROCK 1/8 Sensored Brushless RC Crawler brings those elements together in a substantial 4WD platform built for both technical crawling and faster trail sections.

The H8H uses a sensored power system, remote two-speed transmission, remotely locking front and rear differentials, portal axles, and a 35 kg steering servo. It is sold without a battery or charger, so buyers can select a compatible 2S or 3S LiPo setup for their preferred performance level.

A Serious 1/8-Scale Trail Platform

At approximately 680 × 298 × 325 mm, with a 373 mm wheelbase and a vehicle weight of about 5.4 kg, the H8H has the size and planted feel expected from a large crawler. Its 132 mm tires provide a substantial contact patch, while the 240 mm track width supports stability on uneven terrain. The dimensions also make it easier to place the tires deliberately when approaching rocks, steps, or narrow lines.

The integrated CNC aluminum-alloy chassis provides a rigid foundation for the drivetrain and suspension. Steel driveshafts carry power to the axles, and oil-filled aluminum shocks help control the vehicle’s mass over bumps. A four-link suspension layout with rear Watts linkage is designed to keep axle movement predictable as the terrain changes.

Sensored Brushless Power and FOC Control

The 3970 1500KV sensored brushless motor is paired with an 80A FOC electronic speed controller. A sensored system can provide smoother startup and more consistent response at low speed than a typical sensorless setup, which matters when the vehicle needs to ease onto an obstacle without a sudden jump in wheel speed.

FOC settings can be adjusted through the supported app, giving experienced drivers another way to tailor response to their terrain and driving style. The 2.4 GHz eight-channel radio handles the vehicle’s driving and remote functions, with a specified control distance of up to 120 m under suitable conditions.

Remote Two-Speed Gearbox for Crawling and Trails

A remote two-speed transmission allows the driver to change the H8H’s character without stopping to make a mechanical adjustment. Low gear is intended for controlled crawling, careful descents, and sections where measured throttle input matters. High gear is useful for covering open trail sections or repositioning the truck between obstacles.

With a compatible 2S LiPo, listed speeds are approximately 8 km/h in low gear and 13 km/h in high gear. On 3S power, the figures rise to about 18.5 km/h in low and 29 km/h in high. These numbers are approximate and can vary with battery condition, surface, load, temperature, and driving style.

Locking Differentials and Portal Axles

The front and rear differentials can be locked remotely. Open differentials help the truck turn more naturally on firm, higher-grip ground, while locking them sends drive more directly across each axle when a tire loses traction. Being able to change this from the transmitter lets the driver adapt during a route instead of committing to one setup for the entire session.

Portal axles raise the axle housings relative to the wheel centers, improving clearance around rocks and trail obstacles. They work with the large tires and suspension system to create a crawler that can approach technical terrain without relying only on momentum.

Steering, Suspension, and Scale Lighting

A 35 kg steering servo with stainless-steel gears provides the torque needed to turn the large tires when the vehicle is loaded against an obstacle. As with any crawler, smooth steering inputs are preferable to holding the servo at full lock while the tires are trapped. This reduces unnecessary strain on the steering system.

The body includes a multi-mode scale lighting system with up to 120 LEDs. The lighting supports evening trail sessions and adds visual detail when the truck is used for display or video. It also gives the H8H a distinctive presence that matches its large dimensions.

Choosing Between 2S and 3S Power

A battery and charger are not included. The H8H supports compatible 2S–3S LiPo power, so buyers need to choose a battery with suitable dimensions, connector, discharge capability, and voltage. A 2S setup is the sensible starting point for drivers who prioritize smooth control and lower speeds. A 3S setup provides much stronger speed potential for open trails, but it also demands more space and careful throttle use.

Use a LiPo-compatible balance charger, follow the battery manufacturer’s charging limits, and inspect the pack before every session. Never charge a damaged or swollen battery, and do not leave a charging LiPo unattended.

Who Is the MJX H8H Best For?

The H8H is best suited to hobbyists who have enough transport and storage space for a 680 mm vehicle and want one truck to handle technical crawling and faster trail driving. Its remote gearbox and differential locks are especially useful for mixed routes where traction and speed requirements change frequently.

It may be more vehicle than a first-time buyer needs if the goal is casual indoor driving. The 5.4 kg weight, separate battery requirement, and large footprint favor outdoor hobby use, planned trail sessions, and owners comfortable with LiPo handling and basic RC maintenance.

What Comes in the Box?

The package includes the MJX H8H ALLROCK crawler, transmitter, user manual, hex wrench, and screwdriver. A compatible 2S or 3S LiPo battery and charger must be purchased separately. Confirm battery fit and connector compatibility before ordering a power system.

All three current color variants are in stock: Blue has 10 units, Yellow has 5, and Dark Gray has 5. Live availability can change, so check the variant selector on the official All4RC MJX H8H product page before completing an order.

Final Take

The MJX H8H ALLROCK is built around practical crawler hardware rather than a single headline specification. The sensored 3970 motor and 80A FOC ESC support controlled power delivery, while the two-speed gearbox, lockable differentials, portal axles, strong steering servo, and aluminum chassis give the driver useful tools for changing terrain. For experienced RC owners seeking a large-scale crawler with both technical capability and trail speed, the H8H offers a well-equipped platform in three stocked colors.
